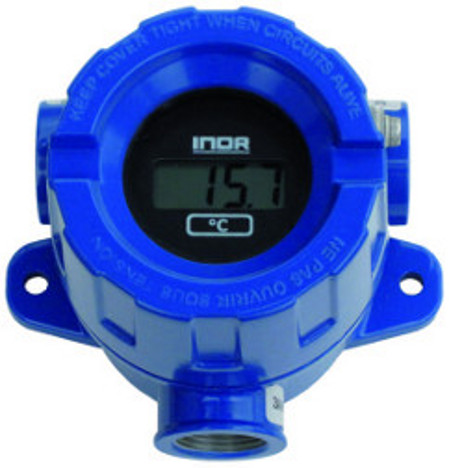

Inor LCD-H11X Loop Powered Heavy-duty LCD Field Indicator
|
Item Number: LCD-H11X
Manufacturer: Inor Transmitter
Part Number: LCD-H11X
* Whole number only
|
|
Inor LCD-H11X Loop Powered Heavy-duty LCD Field Indicator
The Inor LCD-H11X is a digital, heavy-duty LCD indicator for installation directly in a 4-20 mA loop without need for external power.
The indicator is equipped with high-contrast, easy-to-read LCD digits. The scale is easily programmable, without reference signal,
by three push buttons for any values between - 1999 and 9999.
Inor LCD-H11X Features:
- Can be used with any DIN B transmitter or as display only
- Installation directly in a 4-20 mA loop without need for power supply
- Only 1.5 V voltage drop
- High-contract, 4-digit LCD display
- Simple push button scaling without reference signal
- Any range between -1999 to 9999 for 4 to 20 mA input
- Labels for different engineering units are included
- Typical accuracy of 0.05% allows for high precision read-outs
- HART transparent
- Designed for ambient temperatures between -25 to +70 °C / -13 to +158 °F
- Field mounting rugged IP 66 / NEMA 4X housing
- 90° indexing of display orientation

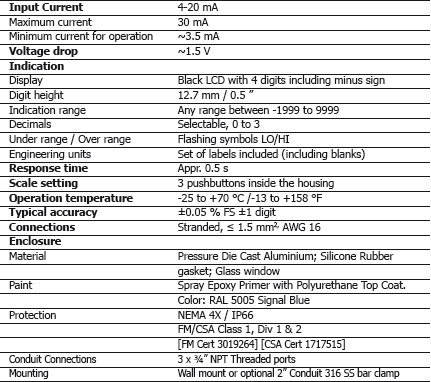

Inor LCD-H11X Specifications:
|
