INOR IsoPAQ-60P Isolation Transmitter

INOR IsoPAQ-60P Isolation Transmitter for Bipolar and Unipolar mA/V Signals

Due to the extensive range selection with a choice of 144 input/output signal combinations, the selectable bandwidth and the universal power supply, IsoPAQ-60P is a true universal transmitter for any demanding isolation application. The zero and span adjustments allow for a fine-tuning of the measurement loop.

The high reliability and the Protective Separation are additional features that ensure a safe system operation.

Features

• Extensive range selection
  Input and output range in mA or V can be set in 144 combinations by using DIP switches
• Zero/Span Adjustment
  Allow for additional fine-tuning of the measurement loop and recalibration after a range selection
• Extremely fast response
  Cut-off frequency higher than 10 kHz, switchable to 30 Hz
• Protective Separation
  The design and high isolation level (4 kV) provides protection for service personnel and downstream devices against impermissible high voltage
• High accuracy
  Negligible additional measurement errors in the loop
• Universal power supply for 20 to 253 VAC/DC
  Applicable world-wide for all common supply voltages
• 3-port isolation
  Protection against erroneous measurements due to parasitic voltages or ground loops
• High-density DIN-rail mounting
  12.5 mm (0.5”) housing combined with very low self heating allows for high density mounting
• Plug-in screw terminals
  Simplifies installation and maintenance
• Excellent reliability
  Low self heating thanks to patented high efficiency power supply provides long-term reliability and stability

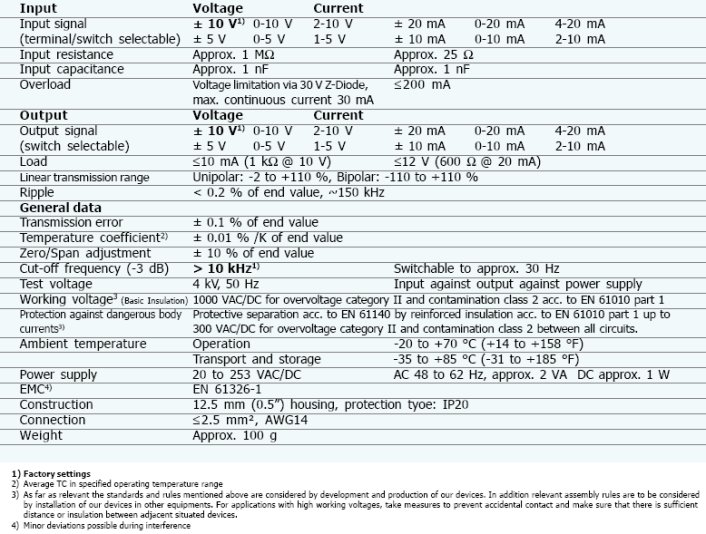

Technical Specifications

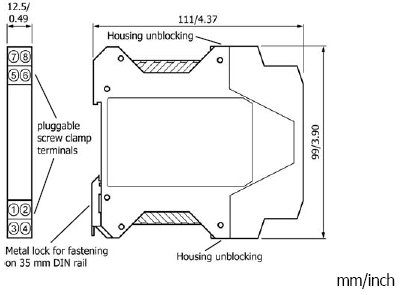

Dimensions

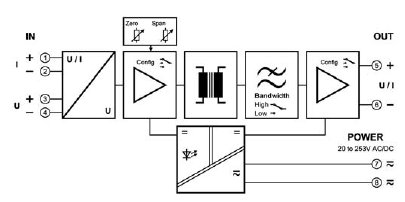

Block diagram/Connections
