INOR IsoPAQ-32P Isolation Signal Splitter

INOR IsoPAQ-32P Isolation Signal Splitter with Double Outputs for mA and V Signals

The Isolation Signal Splitter IsoPAQ-32P is used for isolation and conversion of 0-20 mA, 4-20 mA, 0-5 V and 0-10 V standard signals. The input signal and the two output signals can be selected in any combination. The signal combination is decided by the Part No.

Features

• Fixed ranges
  Ready to use without any settings or calibrations
• Protective Separation acc. to EN 61140
  The design and high isolation level (2.5 kV) provide protection for service personnel and downstream devices against impermissibly high voltage
• High accuracy
  Negligible additional measurement errors in the loop
• 4-port isolation
  Protection against erroneous measurements due to parasitic voltages or ground loops
• High-density DIN-rail mounting
  12.5 mm (0.5") housing combined with low self heating allows for high density mounting
• Plug-in screw terminals
  Simplifies installation and maintenance
• Excellent reliability
  Low self heating provides long-term reliability and stability

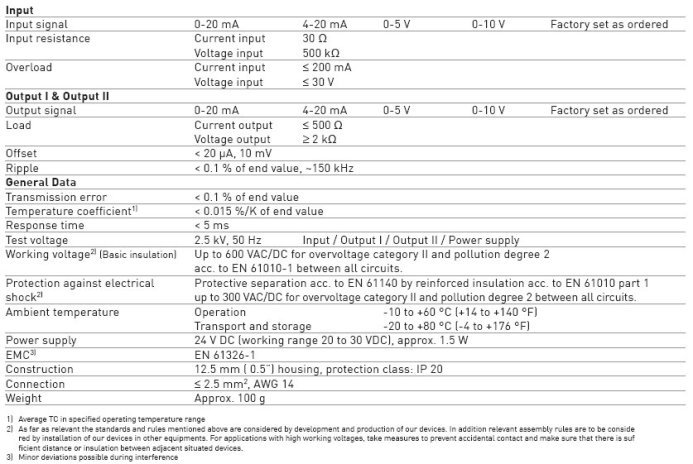

Technical Specifications

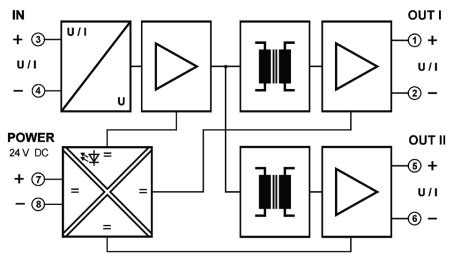

Block diagram/Connections

Dimensions
