INOR IsoPAQ-30P Basic Isolation Transmitter

INOR IsoPAQ-30P Basic Isolation Transmitter for Unipolar mA/V Signals with Calibrated Range Selection

Due to the calibrated range selection of the input/output signals and the universal power supply, IsoPAQ-30P provides excellent flexibility and low storage and installation costs.

The high reliability ensures a safe system operation and low maintenance costs.

Features

• Calibrated range selection
  Input and output range in mA or V can be set by using DIP switches without any further adjustments
• Universal power supply for 20 to 253 VAC/DC
  Applicable world-wide for all common supply voltages
• 3-port isolation
  Protection against erroneous measurements due to parasitic voltages or ground loops
• High-density DIN-rail mounting
  12.5 mm (0.5”) housing combined with very low self heating allows for high density mounting
• Plug-in screw terminals
  Simplifies installation and maintenance
• Excellent reliability
  Low self heating thanks to patented high-efficiency power supply provides long-term reliability and stability

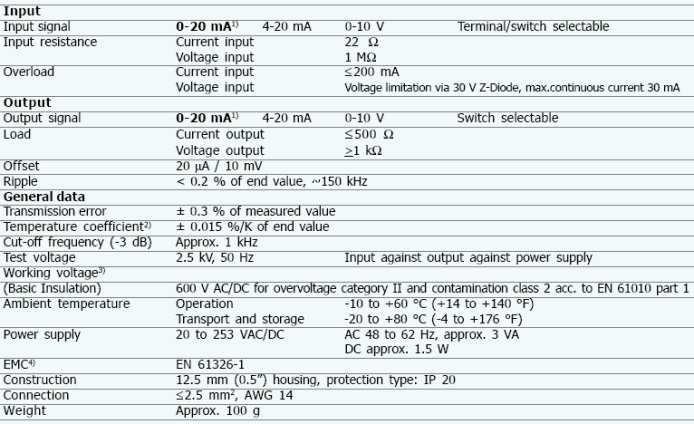

Technical Specifications

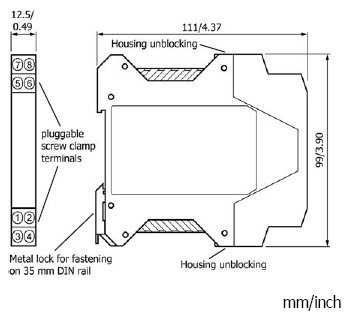

Dimensions

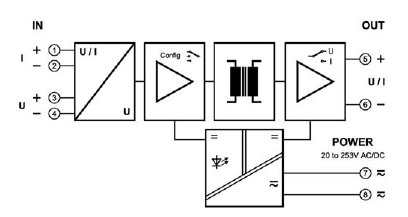

Block diagram/Connections
