INOR IsoPAQ-131P Basic Isolation Transmitter

INOR IsoPAQ-131P Isolation Transmitter for Unipolar mA/V Signals with Fixed Ranges (Compact Line)

For applications where normally one signal combination only is used, IsoPAQ-131P offers a cost-effective alternative.
The high reliability and the Protective Separation are further features, which ensure a safe system operation.

COMPACT LINE is a line of very compact and cost-optimized Isolators, Transmitter Repeaters and Isolating Transmitters within the IsoPAQ family.  The small dimensions - only 60 mm deep and 11.2 mm wide – and the favorable pricing allow for space saving and economic installations.

• 3-port isolation
  Protection against erroneous measurements due to parasitic voltages or ground loops
• Fixed ranges
  Ready to use without any settings
• Universal power supply for 24 VAC/DC
  Increased fl exibility in industrial applications
• Compact DIN-rail mounting
  11.2 mm (0.44”) housing combined with very low self heating allows for high density mounting. With a depth of only 60 mm, compact standard boxes can be used.
• Protective Separation
  The design and high isolation level (2.5 kV) provides protection for service personnel and downstream devices against impermissibly high voltage
• Excellent reliability
  Low self heating thanks to high-effi ciency power supply provides long-term reliability and stability

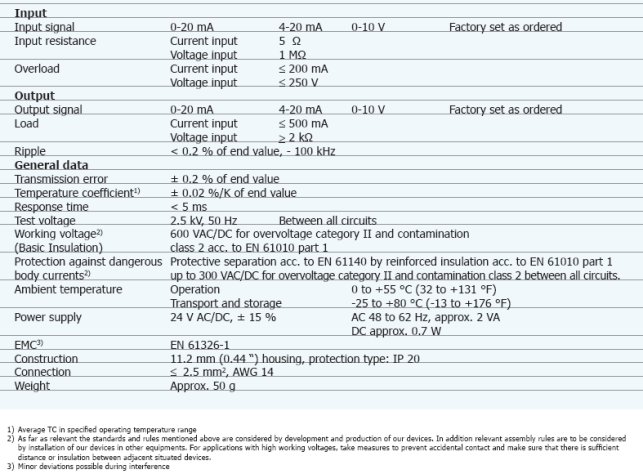

Technical Specifications

Dimensions

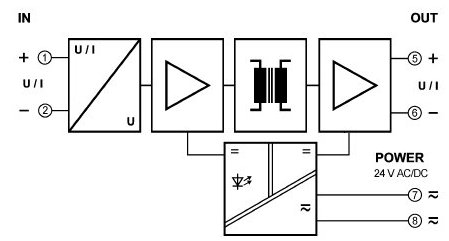

Block diagram/Connections
