INOR IsoPAQ-110R Transmitter Repeater

INOR IsoPAQ-110R Transmitter Repeater for Powering and Isolation of 2-wire Transmitters (Compact Line)

Thanks to the isolation, the 4-20 mA transmitter signal can be connected to a grounded input circuit of a control system without risk for measurement errors due to ground loops.

The Transmitter Repeater needs no power supply, which contributes to reduced installation costs.  The high reliability ensures a safe system operation and low maintenance costs.

Features

• Transmitter isolation
  Problem-free connection of non-isolated 2-wire transmitters to grounded control system inputs
• Transmitter powering
  The 24 VDC power from the control system is transferred to the 2-wire transmitter
• High accuracy
  Negligible additional measurement errors in the loop
• HART communication
  Separate input terminals with built-in 250 Ohm load resistor
• Fixed ranges
  Ready to use without any settings
• Compact DIN-rail mounting
  11.2 mm (0.44”) housing combined with very low self heating allows for high density mounting. With a depth of only 60 mm, compact standard boxes can be used.
• Protective Separation
  The design and high isolation level (2.5 kV) provides protection for service personnel and downstream devices against impermissibly high voltage

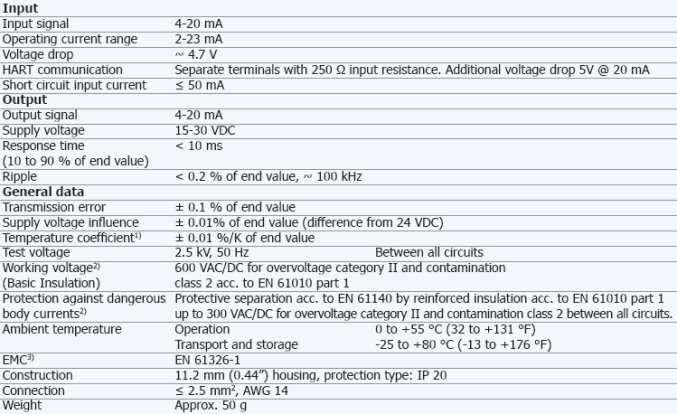

Technical Specifications

Dimensions

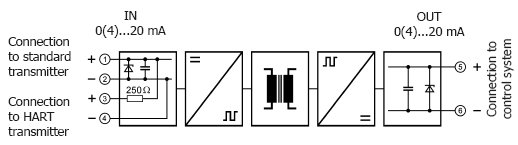

Block diagram/Connections
