INOR IsoPAQ-110L 1 & 2-channel Loop Powered Isolators

INOR IsoPAQ-110L 1 & 2-channel Loop Powered Isolators for 0(4)-20 mA Signals (Compact Line)

COMPACT LINE is a line of very compact and cost-optimized Isolators, Transmitter Repeaters and Isolating Transmitters within the IsoPAQ family.  The small dimensions - only 60 mm deep and 11.2 mm wide – and the favorable pricing allow for space saving and economic installations.

The isolator need no power supply, which contributes to reduced installation costs compared to Isolation Transmitters.  The high reliability ensures a safe system operation and low maintenance costs.

The 2-channel version, IsoPAQ-110L offers a very cost effective alternative combined with a high-density mounting.

Features

• Input to output galvanic isolation
  Protection against erroneous measurements due to parasitic voltages or ground loops
• 1- and 2-channel versions
  Allows for optimal cost effi ciency
• No power supply required
  Reduced wiring saves installation costs
• Fixed ranges
  Ready to use without any settings
• Compact DIN-rail mounting
  11.2 mm (0.44”) housing combined with very low self heating allows for high density mounting. With a depth of only 60 mm, compact standard boxes can be used.
• Protective Separation
  The design and high isolation level (2.5 kV) provides protection for service personnel and downstream devices against impermissibly high voltage
• High accuracy
  Negligible additional measurement errors in the loop

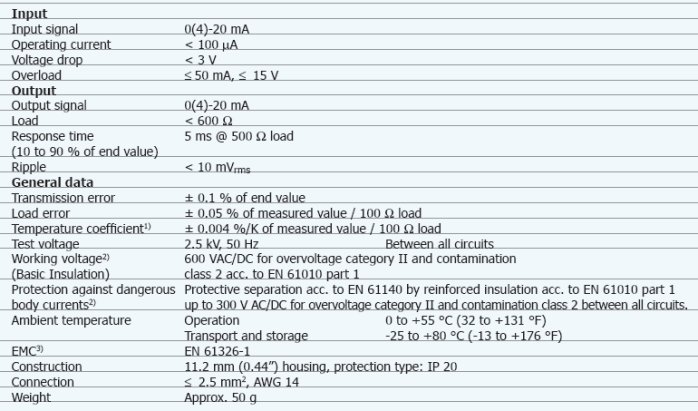

Technical Specifications

Dimensions

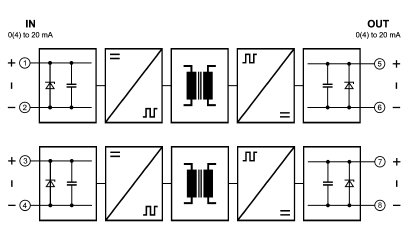

Block diagram/Connections
