INOR IPAQ-L PLUS High Precision Universal Programmable 2-Wire Transmitter

INOR IPAQ-L PLUS High Precision Universal Programmable 2-Wire Transmitter

It is a universal 2-wire transmitter for high-demand temperature and process measurement applications. Error corrections and sensor diagnostics improve the measurement accuracy and safety.

Features

• Fully universal, linearized and highly isolated
• Accepts RTD, T/C, mV and Ohm
• Extra high accuracy and stability
• Sensor error and system (sensor/transmitter) error correction for highest total accuracy
• 40 point linearization - any sensor can be matched
• Configuration without external power
• High speed update (300 ms)
• Selectable output limits
• Low sensor isolation detection
• Full access to all features while in operation
• NAMUR compliant
• Simplified loop check-up with calibration output
• Test output without breaking the loop
• IPRO, easy-to-use Windows configuration software

• Input for RTDs, T/Cs, mV and resistance
  Reduced inventory costs.Simplified plant engineering.
• True on-line communication
  Full access to all features while in operation.
• Configuration without external power
  Editing or reading a configuration is possible also without external power supply.
• Display connection
  Direct connection of an Inor digital display to the communication port.
• Efficient customized 40-point linearization
  Any sensor characteristics can be matched. (Sensor diagnostics)
  SmartSense detects low sensor isolation (essential for correct measurements).
  Selectable sensor break action.
• Simplified loop check-up
  The transmitter works as an accurate current
  generator with user defined action.
• On-screen indications and line recording
  Valuable tools for temporary measurements.
• Improved QA with data storage
  Vital information, such as TAG-No., maintenance record etc. can be stored in the nonvolatile memory.

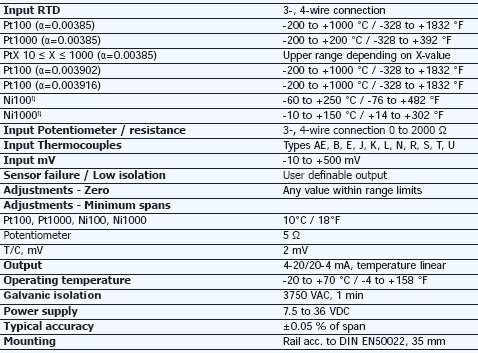

Technical Specifications

Input Connections

Output Connections

Output Load Diagram

Dimensions

INOR Configuration Kit (Complete Package, except HART modem)

• INOR USB Interface
• Adapter Cables

• Software on Flashdrive

• Works with Windows 2000 through 8.1


Configuration

• PC Programmable
