INOR IPAQ-H PLUS High-Precision Universal Programmable 2-Wire Transmitter

INOR IPAQ-H PLUS High-Precision Universal Programmable 2-Wire Transmitter

It is a universal 2-wire transmitter for high-demand temperature and process measurement applications.  Error corrections and sensor diagnostics improve the measurement accuracy and safety.

Features

• Fully universal, linearized and highly isolated
• Accepts RTD, T/C, mV and Ohms
• Extra high accuracy and stability
• Sensor error and system (sensor/transmitter) error correction for highest total accuracy
• 40 point linearization - any sensor can be matched]
• Configuration without external power
• High speed update (300 ms)
• Selectable output limits
• Low sensor isolation detection
• Full access to all features while in operation
• NAMUR compliant
• Consistent sensor break function
• Simplified loop check-up with calibration output
• IPRO, easy-to-use Windows configuration software

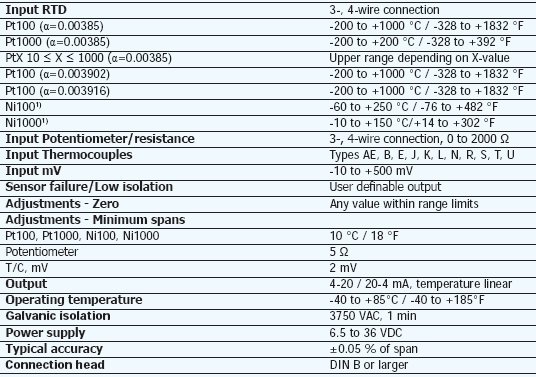

Technical Specifications

Input Connections

Output Connections

Output Load Diagram

Dimentions

INOR Configuration Kit (Complete Package, except HART modem)

• INOR USB Interface
• Adapter Cables

• Software on Flashdrive

• Works with Windows 2000 through 8.1


Configuration

• PC Programmable
