INOR IPAQ-H/-HX Programmable Transmitter

Our Price: $165.00

Item Number: 70IPH

Manufacturer: Inor Transmitter

Part Number: 70IPH

* denotes required field

INOR IPAQ-H/-HX Model Selection*

INOR PC Configuration Kit*

Quantity:

INOR IPAQ-H/-HX Universal Programmable 2-Wire Transmitter

IPAQ-H is a universal and intelligent 2-wire In-head transmitter for temperature and other measurement applications.

IPAQ-HX is the Intrinsic Safe version for use in Ex-applications.

Features

Excellent stability
Long-term stability 0.1 %/year.
Enhanced total system accuracy
Sensor error correction (for known sensor errors).
System error correction (against known temperatures).
NAMUR-compliant
Output limitations and fail currents (according to NAMUR recommendations.)
Input-Output isolation 1500 VAC
Eliminates measuring errors due to ground loops.
High load capacity
Only 6.5 V voltage drop over the transmitter (IPAQ-H) allows for high loads.
Designed for harsh conditions
Operation temperature: -40 to +85 °C, -40 to +185 °F.
Excellent EMC performance.
Durable, shockproof design.
Simple mounting and connection
For DIN B head or larger.
Large center hole (dia. 7 mm / 0.28 inch).
5 year limited warranty

Functions

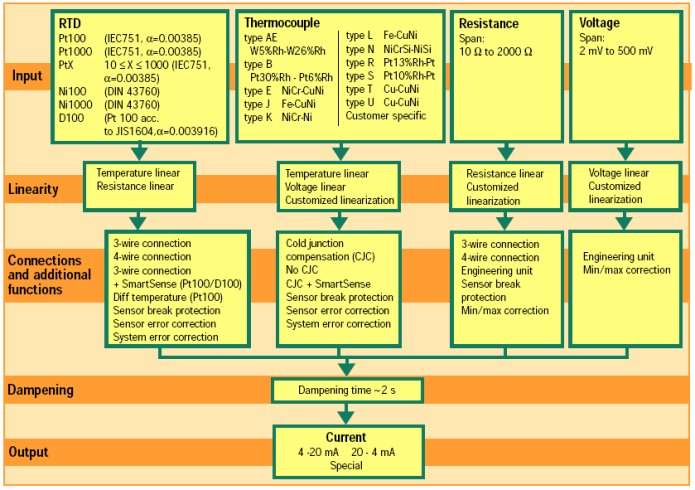

Input for RTDs, T/Cs, mV and resistance
Reduced inventory costs.
Simplified plant engineering.
True on-line communication
Full access to all features while in operation.
Sensor diagnostics
SmartSense detects low sensor isolation (essential for correct measurements).
Selectable sensor break action.
Simplified loop check-up
The transmitter works as an accurate current generator.
On-screen indications and line recording
Valuable tools for temporary measurements.
