INOR IPAQ-4L Temperature Transmitter

INOR IPAQ-4L Universal High-Isolation 4-wire Transmitter

The high isolation provides safe and problem free measurements. Offering both current and voltage output, IPAQ-4L meets any process requirements. Designed for wall and DIN-rail mounting.

Features

• High level isolation - 4000 VAC
• Fully universal and linearized
• Accepts RTD, T/C, mV, V, mA and Ohm
• Current and voltage output
• Sensor and system error correction
• Full access to all features while in operation
• Consistent sensor break function
• Simplified loop check-up with calibration output
• Low sensor isolation detection
• IPRO, easy-to-use Windows configuration software

Functions

• Current and voltage output
  Programmable: 0/4-20 mA, 0/1-5 V and 0/2-10 V with direct or reversed action.
• Input for RTD, T/C, mV, V, mA and resistance
  Reduced inventory costs.
  Simplified plant engineering.
• True on-line communication
  Full access to all features while in operation.
• Sensor diagnostics
  SmartSense detects low sensor isolation (essential for correct measurements).
  Selectable sensor break action.
• Simplified loop check-up
  The transmitter works as an accurate current generator.
• On-screen indications and line recording
  Valuable tools for temporary measurements.

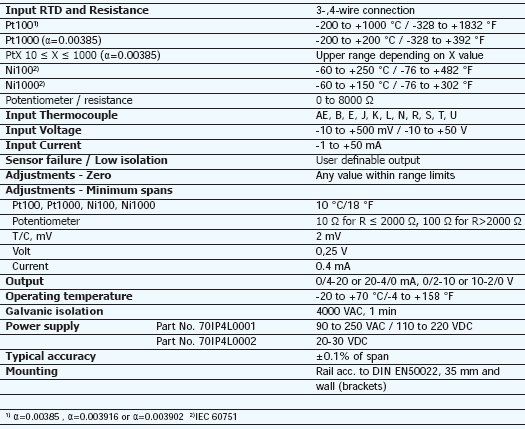

Technical Specifications

Input Connections

Output Connections:                                Power Supply:

Dimensions:

INOR Configuration Kit (Complete Package, except HART modem)

• INOR USB Interface
• Adapter Cables

• Software on Flashdrive

• Works with Windows 2000 through 8.1


Configuration

• PC Programmable

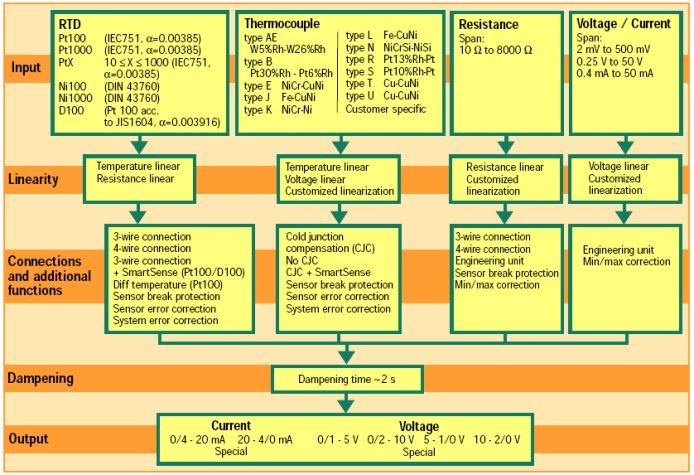

IPAQ-4L Configuration Scheme
