INOR CLI22 Loop Powered High-Accuracy Isolators for 0(4)-20 mA Signals

INOR CLI22 Loop Powered High-Accuracy Isolators for 0(4)-20 mA Signals

CLI22 also contributes to a suppression of electrical interferences. Thanks to the high isolation level of 4 kV, the isolator also serves as an effective protection for downstream devices against impermissible high voltages.

The isolator is available in a single channel version, CLI22S, and a dual channel version, CLI22D.

Features:

• Input/output 0(4)-20 mA with conversion ratio 1 to 1
• High level input / output isolation of 4000 VAC
• Loop powered (no external power needed)
• High accuracy and stability
• Calibrated and ready to use
• Maintenance free
• Rugged shock proof design
• DIN-rail mounting

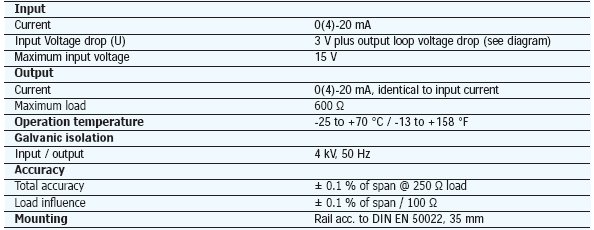

Specifications:

Dimensions:

Voltage Drop Diagram
