INOR APAQ-L Temperature Transmitters

INOR APAQ-L Temperature Transmitters

APAQ-LR and APAQ-LC are analog, 2-wire, DIN rail transmitters with selectable ranges for Pt100 and selectable types and ranges for thermocouple input.  The compact housing snaps onto a 35 mm DIN rail and is equipped with rugged terminals for easy and safe wire connections.  The selection of measuring ranges and thermocouple types is made with internal solder pads. The fine adjustment is made with potentiometers in the front.

APAQ-LR is adjustable for different Pt100 ranges and has a temperature linear 4-20 mA output.

APAQ-LC covers 5 different thermocouple types, is continuously adjustable and has a voltage linear 4-20 mA output.

Features

• Multirange design
  Reduced inventory costs.
  APAQ-LR for Pt100 input with selectable measurement ranges.
  APAQ-LC for T/C J, L, T, K, and N inputs with continuous range adjustment.
• Accurate measurements
  Temperature linear 4-20 mA output for Pt100 input.

• Space saving and simple mounting
  Only 17.5 mm / 0.7 inch wide.
  Quick mounting on DIN rail.
• Safety
  Genuine sensor break detection with selectable action, upscale or downscale.
  Excellent EMC performance.
• High load capacity
  Only 6.5 V voltage drop over the transmitter allows for high loads.

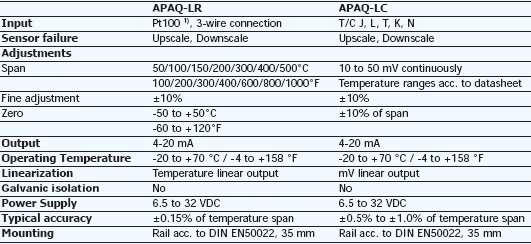

Technical Specifications

Input Connections:

APAQ-LR:                                                   APAQ-LC:

Output Connections:

Output Load Diagram:                   Dimensions:

Configuration

• No PC Programmable
• Bridging Solder Pads
