GW Instek SFG-2110 DDS Function Generator

     The SFG-2000/2100 Series include four members in each family at 4MHz and 10MHz bandwidth(perivd), The SFG-2100 Series have additional functions of Sweep, AM/FM modulation, and External Counter. As a result of the 20ppm stability level and output waveform accuracy, The SFG-2000/2100 Series well fit into a wide variety of applications, such as signal generator for experiment labs, reference signal for PLL (Phase Locked Loop), and calibration and adjustment source for electronic devices.

Features

• DDS Technique and FPGA Chip Design
• Frequency Range : 0.1Hz~4/10MHz
• High Frequency Accuracy : ± 20ppm
• Frequency Resolution : 100mHz
• Low Distortion Sine Wave : -55dBc,0.1Hz~200kHz
• Front Panel Setting Save/Recall with 10 Groups of Setting Memories
• Built-In 9 Digits,150MHz/High Resolution Counter(SFG-2110 Only)
• INT/EXT AM/FM Modulation (SFG-2110 Only)
• LIN/LOG Sweep Mode(SFG-2110 Only)

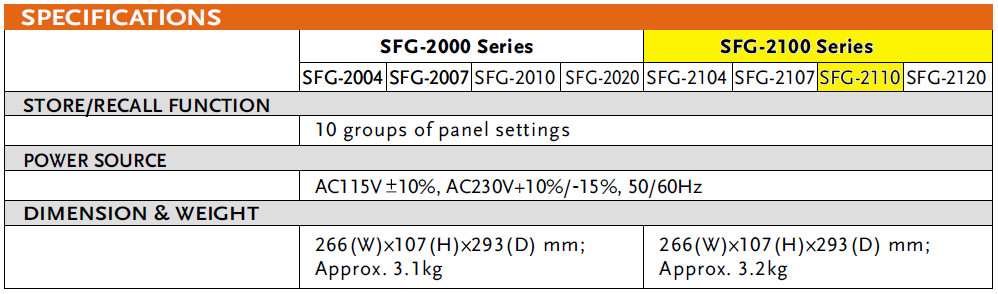

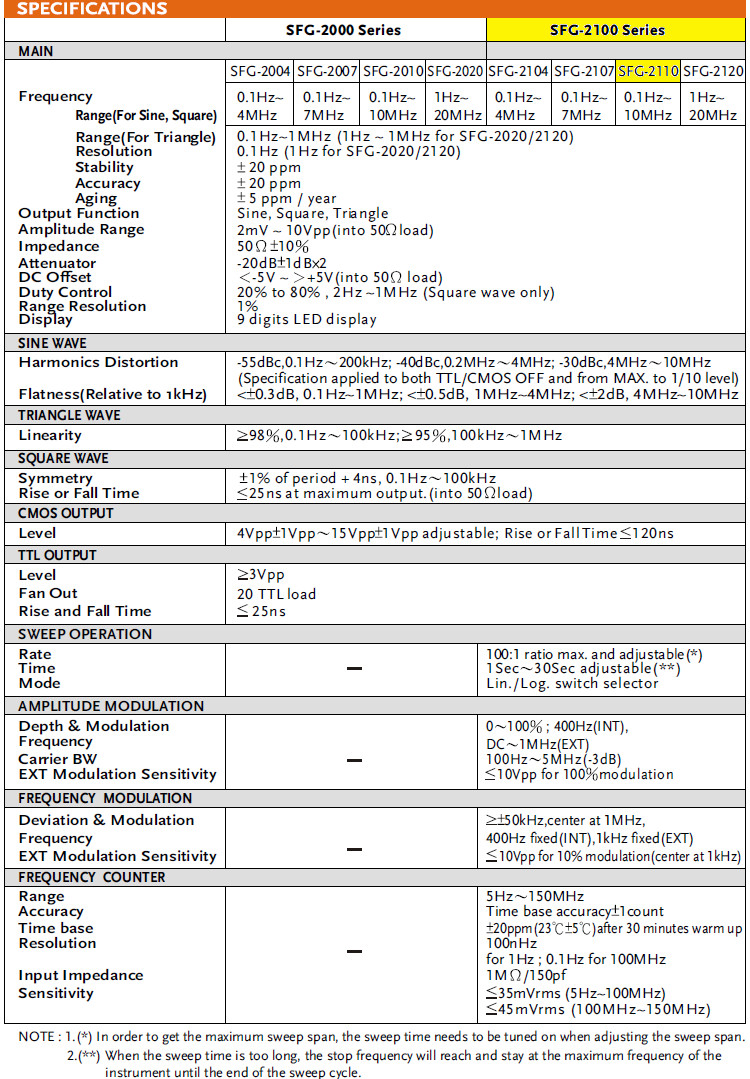

GW SFG-2110 Data Sheet
