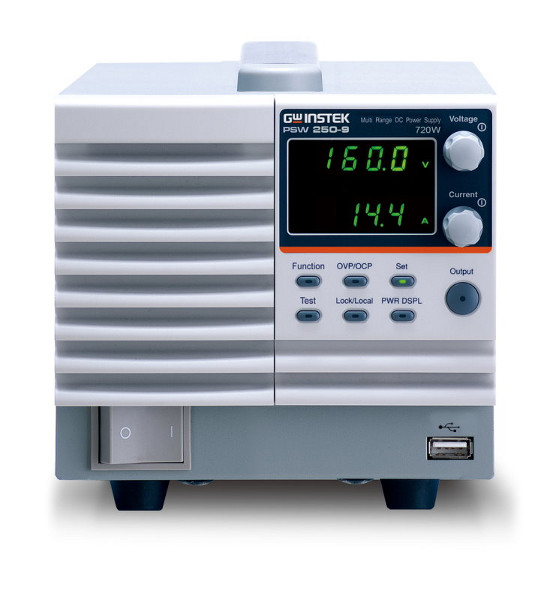

GW Instek PSW 250-9 250 Volt 9 Amp DC Power Supply

Our Price: $1,820.00

Item Number: PSW 250-9

Manufacturer: GW Instek

Part Number: PSW 250-9

Product Options

Accessory Options

USB Cable (+ $10.00)

Accessory kits for PSW-Series (+ $45.00)

Simple IDC Tool (+ $210.00)

Contact Removal Tool (+ $15.00)

Parallel operation cable for 2 units (+ $55.00)

Parallel operation cable for 3 units (+ $85.00)

Rack mount adapter (JIS) (+ $225.00)

Rack mount adapter (EIA) (+ $225.00)

GPIB to USB adapter (+ $390.00)

Quantity:

Email this page to a friend

GW Instek PSW 250-9 250 Volt 9 Amp DC Power Supply

The PSW 250-9 is a single output programmable switching DC power supply that covers a power range up to 720W. A very useful feature for DUT protection are the CV and CC selections. While in CV mode the power output is turned on and the voltage rises to the LED forward voltage. Then the current will peak up and exceed the preset value of current limit. To limit the current spike occurred at the threshold voltage and protect the DUT from the inrush current damage the PSW-Series is able to run under CC priority.

Another way the PSW prevents DUT damage is with the OVP and OCP protections. Both the OVP and OCP can be selected, with the default level set at 110%, of the rated voltage / current of the power supply. The PSW has available at the rear panel the LabView driver. The driver is for external control of the power On/Off and the external monitoring of the power output voltage and current.

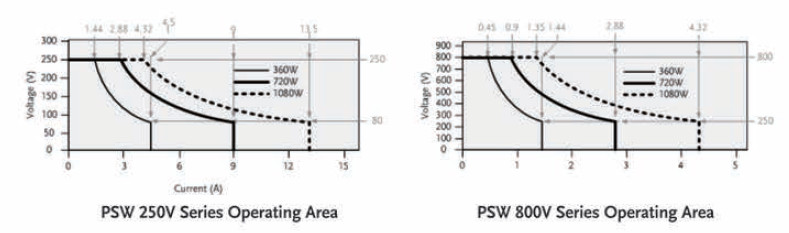

Multi-Range Operation

Features

Voltage Rating: 250V
Output Power Rating: 720W
Constant Power Output for Multiple Range (V&I) Operation
CV/CC Priority; Particularly Suitable for the Battery and LED Industry
Adjustable Slew Rate
Parallel Operation: Up to 3 units
High Efficiency and High Power Density
1/2, 1/3, 1/6 Rack Mount Size Design (EIA/JIS Standard) for 360W/720W/1080W
Standard Interface: LAN,USB,Analog Control Interface
Optional Interface: GPIB-USB Adaptor
LabView Driver

Technical Specifications

Input Characteristics		PSW	30V	80V	160V	250V	800V
Nominal input rating			100Vac to 240Vac, 50Hz to 60Hz, single phase
Input voltage range			85Vac ~ 265Vac
Input voltage range			47Hz ~ 63Hz
Maximum input current
	100Vac	A	360W: 5A, 720W: 10A, 1080W: 15A
	200Vac	A	360W: 2.5A, 720W: 5A, 1080W: 7.5A
Inrush current		A	< 25A for 360W, < 50A for 720W, < 75A for 1080W
Maximum input power		VA	360W: 500VA, 720W: 1000VA, 1080W: 1500VA
Power factor
	100Vac		0.99
	200Vac		0.97
Efficiency
	100Vac	%	77	78	79	79	80
	200Vac	%	79	80	81	81	82
Hold-up time			20ms or greater
Analog Programming and Monitoring		PSW	30V	80V	160V	250V	800V
External voltage control output voltage			Accuracy and linearity: ±0.5% of rated output voltage.
External voltage control output current			Accuracy and linearity: ±1% of rated output current.
External resistor control output voltage			Accuracy and linearity: ±1.5% of rated output voltage.
External resistor control output current			Accuracy and linearity: ±1.5% of rated output current.
Output voltage monitor
	Accuracy	%	±1	±1	±1	±2	±2
Output current monitor
	Accuracy	%	±1	±1	±1	±2	±2
Shutdown control			Turns the output off with a LOW (0V to 0.5V) or short-circuit.
Output on/off control			Possible logic selections: Turn the output on using a LOW (0V to 0.5V) or short-circuit, turn the output off using a HIGH (4.5V to 5V) or open-circuit. Turn the output on using a HIGH (4.5V to 5V) or open-circuit, turn the output off using a LOW (0V to 0.5V) or short-circuit.
CV/CC/ALM/PWR ON/OUT ON indicator			Photocoupler open collector output; Maximum voltage 30V, maximum sink current 8mA.
Series and Parallel Capability		PSW	30V	80V	160V	250V	800V
Parallel number		Units	3	3	3	3	3
Series Number		Units	2	2	2	None	None
Front Panel
Indications			GREEN LED's: CV, CC, VSR, ISR, DLY, RMT, 20, 40, 60, 80, 100, %W, W, V, A RED LED's: ALM
Buttons			Function, OVP/OCP, Set, Test, Lock/Local, PWR DSPL, Output
Knobs			Voltage, Current
USB port			Type A USB connector
Interface Capabilities
USB			TypeA: Host, TypeB: Slave, Speed: 1.1/2.0, USB Class: CDC(Communications Device Class)
LAN			MAC Address, DNS IP Address, User Password, Gateway IP Address, Instrument IP Address, Subnet Mask
GPIB			Optional: GUG-001 (GPIB to USB Adapter)
Environmental Conditions
Operating temperature			0˚C to 50˚C
Storage temperature			-25˚C to 70˚C
Operating humidity			20% to 85% RH; No condensation
Storage humidity			90% RH or less; No condensation
Altitude			Maximum 2000m
General Specifications
Weight (main unit only)		kg	Approx. 3kg for 360W, Approx. 5.3kg for 720W, Approx. 7.5kg for 1080W
Dimensions (WxHxD)		mm3	360W: 71×124×350mm, 720W: 142×124×350mm, 1080W: 214×124×350mm
Cooling			Forced air cooling by internal fan.
EMC			Complies with the European EMC directive 2004/108 /EC for Class A test and measurement products.
Safety			Complies with the European Low Voltage Directive 2006 /95/EC and carries the CE-marking.
Withstand voltage			Between input and chassis: No abnormalities at 1500 Vac for 1 minute.
			Between input and output: No abnormalities at 3000 Vac for 1 minute.
			Between output and chassis: No abnormalities at 500 Vdc for 1 minute for 30V, 80V, 160V models.
			No abnormalities at 1500 Vdc for 1 minute for 250V, 800V models.
Insulation resistance			Between input and chassis: 500 Vdc, 100MΩ or more
			Between input and output: 500 Vdc, 100MΩ or more
			Between output and chassis: 500 Vdc, 100MΩ or more for 30V, 80V, 160V and 250V models.
			1000Vdc, 100MΩ or more for 800V models.

Notes

*1: At 85 ~ 132Vac or 170 ~ 265Vac, constant load.
*2: From No-load to Full-load, constant input voltage. Measured at the sensing point in Remote Sense.
*3: Measure with JEITA RC-9131B (1:1) probe
*4: Measurement frequency bandwidth is 10Hz to 20MHz.
*5: Measurement frequency bandwidth is 5Hz to 1MHz.
*6: From 10% to 90% of rated output voltage, with rated resistive load.
*7: From 90% to 10% of rated output voltage, with rated resistive load.
*8: Time for output voltage to recover within 0.1% + 10mV of its rated output for a load change from 50 to 100% of its rated output current.
*9: For load voltage change, equal to the unit voltage rating, constant input voltage.

GW Instek PSW Series Data Sheet
