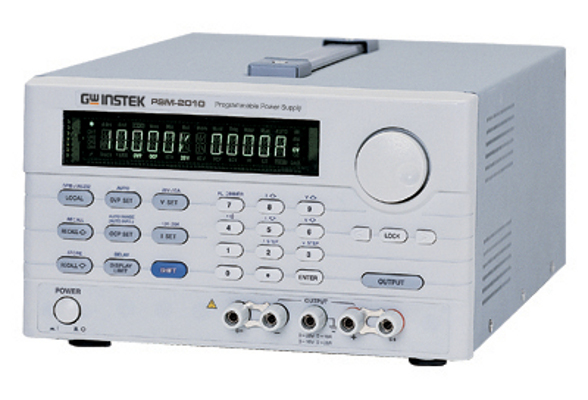

GW Instek PSM-2010 Programmable Dual-Range DC Power Supply
|
Item Number: PSM-2010
Manufacturer: GW Instek
Part Number: PSM-2010
Product Options
GW Instek PSM-2010 Calibration Options
* Whole number only
|
|
GW Instek PSM-2010 Programmable Dual-Range DC Power Supply
The PSM-Series are single output / dual range, 120 or 200W, programmable linear DC power supplies. OVP, OCP, OTP, and, output On/Off control protect the PSM-Series and their load from unexpected conditions. High resolution, high regulation, and low ripple are maintained at 1mV/1mA, 0.01%, and <350 Vrms, respectively. Operation and configuration is simplified with a digital interface and a clear LCD display.
Features
- Single Output Dual Range Max. 200W
- High resolution: 1mV/1mA
- 0.01% load/line regulation, 350uVrms ripple
- Auto step runing with timer setting and 100 Sets memory
- Safety design: OVP,OCP & OTP;Output ON/OFF control
- Self-test and software calibration
- Highly visible vacuum-fluorescent display
- Front and rear output terminal
- Standard interface : RS-232C, GPIB
- Option : European Jack Type Terminal

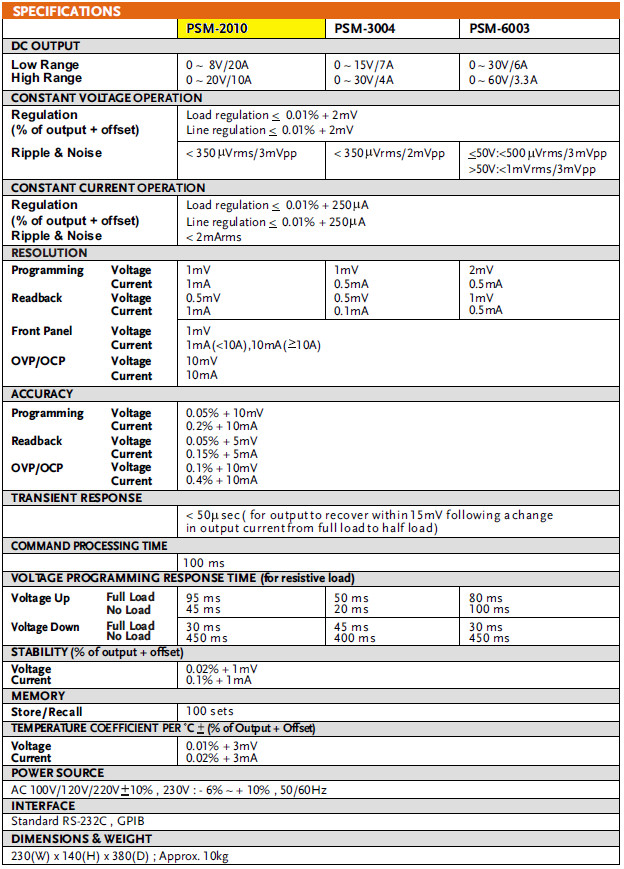

Technical Specification
|
