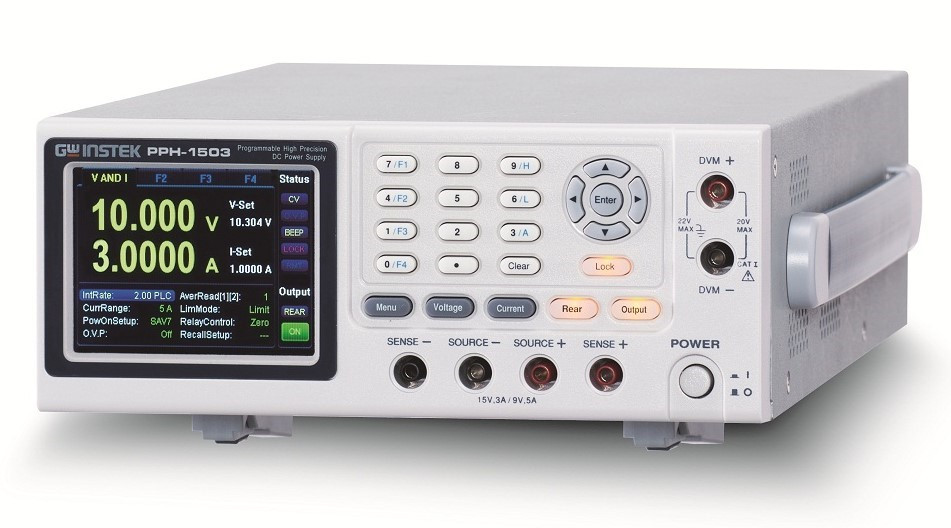

GW Instek PPH-1503 Programmable High Precision DC Power Supply
|
Item Number: PPH-1503
Manufacturer: GW Instek
Part Number: PPH-1503
Product Options
GW Instek PPH-1503 Calibration Options
GW Instek PPH-1503 Optional Assessories
* Whole number only
|
|
GW Instek PPH-1503 Programmable High Precision DC Power Supply
The PPH-1503 was exclusively designed to meet low power consumption requirements and user’s demands of accuracy, speed and resolution for both voltage and current in markets utilizing battery operated devices such as Cellular phone, Bluetooth, wireless, remote sensors, LED backlighting.
Features
- Dual Range Output (0~15V/0~3A) or (0~9V/0~5A); Output Power 45W
- 3.5 Inch TFT LCD Display
- Constant Voltage and Constant Current Operation
- Built-in DVM Measurement Function
- High Measurement Resolution (1mV/0.1mA for 5A Range);(1mV/0.1uA for 5mA Range)
- External Relay Control Output On/Off
- Sink Current Capability (Maximum:2A)
- Digital Panel Control
- Selectable Output and Input (DVM) Ports From Front or Rear Panel
- Key Lock Function
- 5 Sets of Preset Memory Including Power Output ON/OFF States
- High Speed Transient Recovery Time(<40us within 100mV ; <80us within 20mV)
- OVP/OCP/OTP Protection to Prevent DUT Damage
- Standard Multiple Interfaces: USB / LAN /GPIB
- Labview Driver and PC Remote Control Software
Applications
- Battery Simulations for Telecom
- Products: GSM, CDMA, TDMA, DECT and others
- Product Testing for LED Light Bar (Current Measurement) and Quality Assurance
- R&D Laboratories and Educational Facilities
- Product Development and Debugging
- Device Inspection

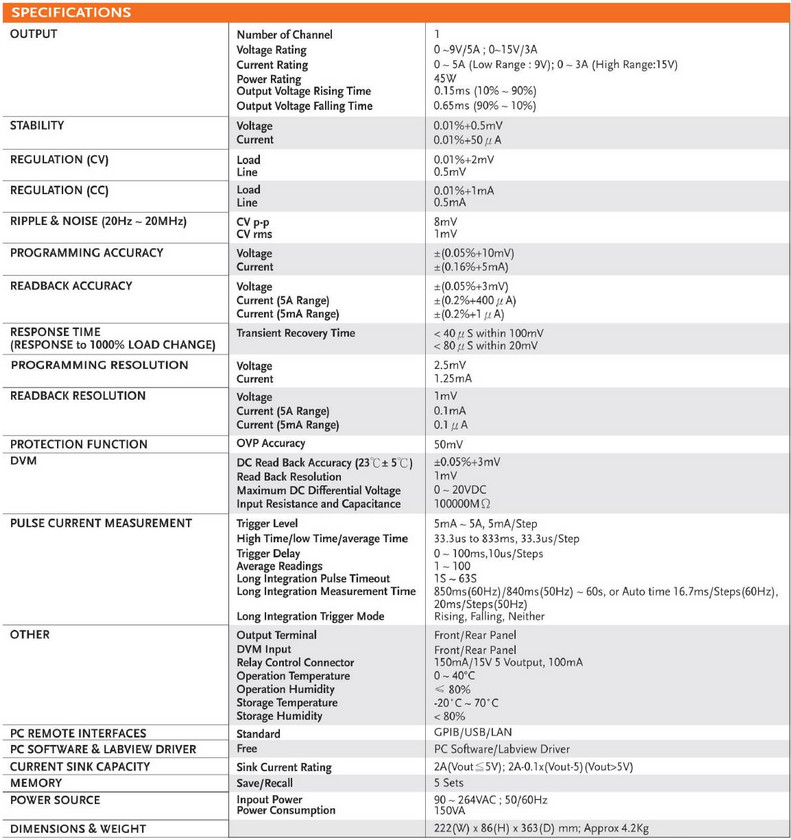

Technical Specifications
|
