GW Instek LCR-817 LCR Meter
|
Item Number: LCR-817
Manufacturer: GW Instek
Part Number: LCR-817
Product Options
GW Instek LCR-817 Calibration Options
* Whole number only
|
|
GW Instek LCR-817 LCR Meter
The LCR-800 Series are high-end digital LCR meters for component/material measurements, applicable to various R&D activities and assembly lines. The large 240 x 128 dot matrix LCD display provides ample room for two measurement items and setup parameters, allowing you to grasp measurement results quickly. All test modes are able to measure supplementary factors, such as, R/Q, C/D, C/R, and L/Q.
Features
- Test Frequency: 12Hz~10kHz (LCR-817/827)
- 0.05%~0.1% Basic Accuracy
- 100 Sets Memory for Save/Recall of Settings
- R/Q, C/D, C/R, L/Q, Z/θ, L/R Test Modes
- Absolute Value,ΔValue, and Δ% Measurement Display
- 240 x 128 dot Matrix LCD Display
- Displays Condition and Test Result Simultaneously
- Interface: RS-232C (LCR-821/819/817/816)/ Handler (LCR-829/827/826)

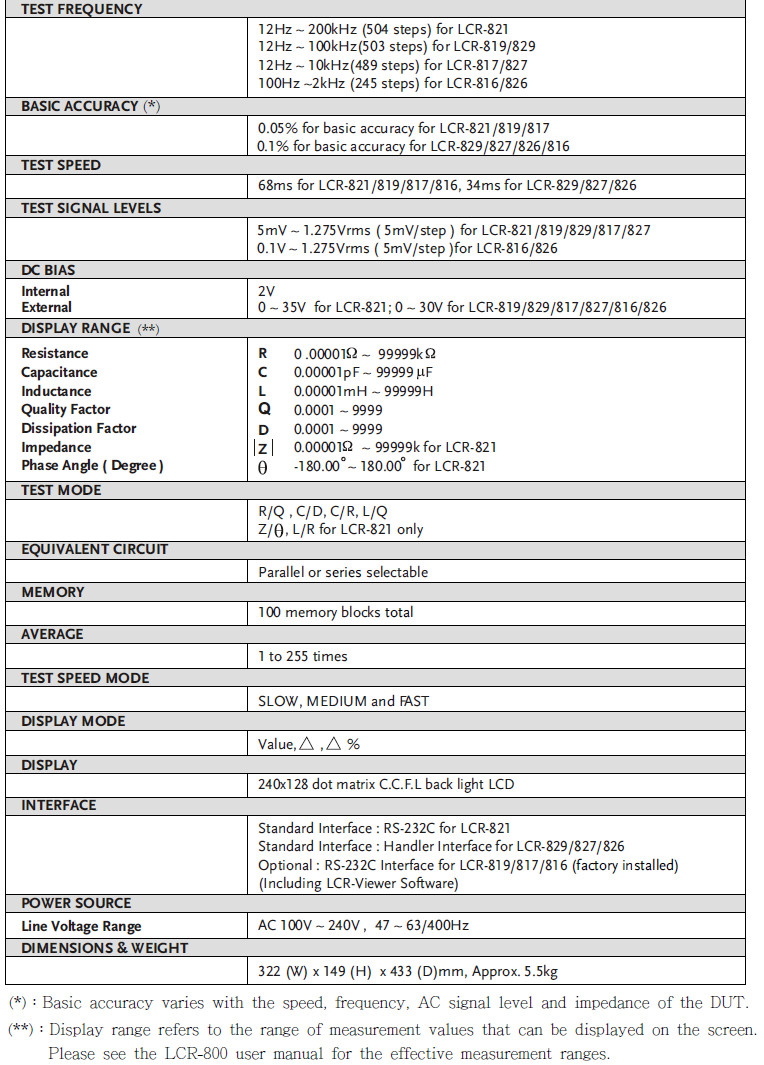

Technical Specification
|
GW Instek LCR-819 test frequency: 12Hz~100kHz(503 steps).
|
GW Instek LCR-821 test frequency: 12Hz~200kHz(504 steps).
|
