GW Instek LCR-8101G LCR Meter

Our Price: $6,765.00

Item Number: LCR-8101G

Manufacturer: GW Instek

Part Number: LCR-8101G

Quantity:

Email this page to a friend

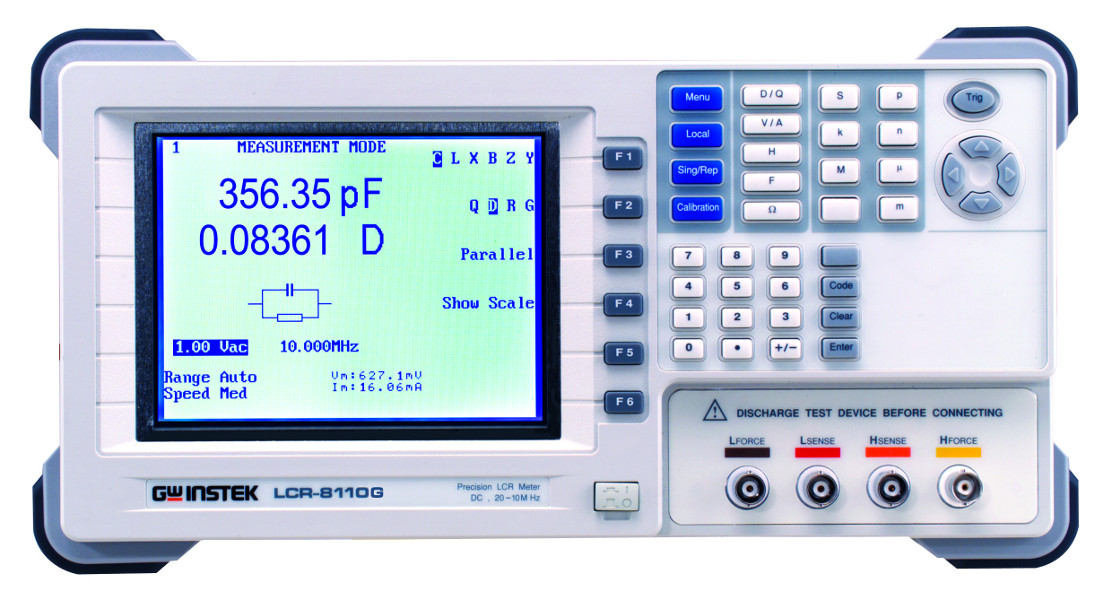

GW Instek LCR-8101G LCR Meter

The LCR-8000G Series LCR meter, with test frequency up to 10MHz, provides accuracy, versatility and high resolution for a wide range of component measurements, even including DC resistance measurement and Voltage/Current monitoring. With Graph Mode, LCR-8101G display the component impedance response either over a wide range of test frequency sweep or over a wide range of test voltage sweep in a graph chart. This gives an analysis result of either impedance vs. frequency or impedance vs. applied voltage all at a glance. GPIB and RS-232C interfaces are available as standard for instrument control and test result display on the PC.

Features

Wide Test Frequency 20Hz ~ 10/5/1MHz
0.1% Basic Accuracy & 6 Digits Measurement Resolution
Large LCD Display with Intuitive Interface
Full Measuring Functions with DUT V/I Monitor
PASS/FAIL Function ( abs, % or delta) with Judgment Alarm
DC Resistance Measurement
Multiple Step Mode
Standard RS-232C/GPIB Interface
Optional DC Bias box

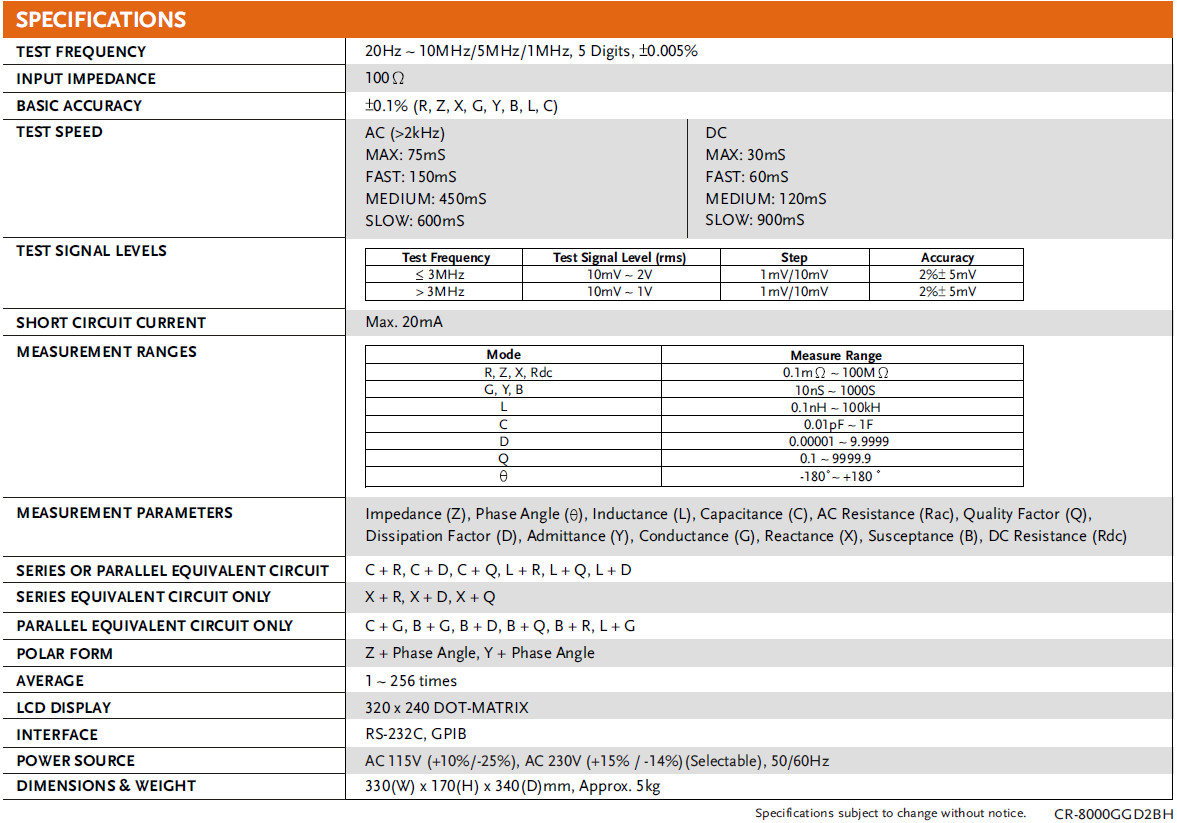

Technical Specification

GW LCR-8101G Data Sheet
