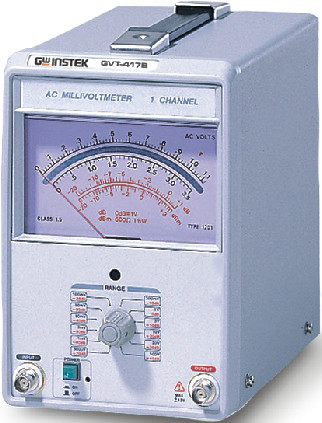

GW Instek GVT-417B 1 Channels AC Millivolt Meter

Our Price: $249.00

Item Number: GVT-417B

Manufacturer: GW Instek

Part Number: GVT-417B

Product Options

Calibration Options

Calibration Not Included

Standard Calibration (+ $98.00)

ISO 17025 Accredited Calibration Certification (+ $160.00)

Quantity:

Email this page to a friend

GW Instek GVT-417B 1 Channels AC Millivolt Meter

The GVT-427B is compact analog AC millivoltmeters ideal for low level voltage measurements beyond ordinary multimeter capabilities; 300uV sensitivity is maintained over 100V full scale. GVT-427 provides dual channel measurement, simultaneously or separately. Voltage scale is separated into 12 ranges, instantly accessible by a large rotary selector. The wide measurement range(10Hz~1MHz) and voltage(-70dB~+40dB) provide ample headroom for most applications.

Features

300μV Full Scale Sensitivity
Measurement Frequency: 10Hz ~ 1MHz
Measurement Amplitude: -70dB ~ +40dB in 12 Ranges
CE Approved

Technical Specifications

INPUT
Voltage Range	300μV ~ 100V in 12 ranges
Decibel Range	-70dB ~ -40dB in 12 ranges
Accuracy	±3% of full scale
Operating Mode	GVT-427B : Ch1 and Ch2 separately or simultaneously at Ch1 GVT-417B : one Ch1 only
Frequency Response	20Hz ~ 200kHz ±3%, 10Hz ~ 1MHz ±10% (Reference 1kHz)
Impedance	10MΩ, approx. 40pF
OUTPUT
Level	Approx. 0.1Vrms at full scale
Distortion	< 2%
POWER SOURCE
	AC 115V/230V ±10%, 50/60Hz
DIMENSIONS & WEIGHT
	130(W) × 210(H) × 295(D) mm Approx. 2.8kg

GW GVT-417B Data Sheet
