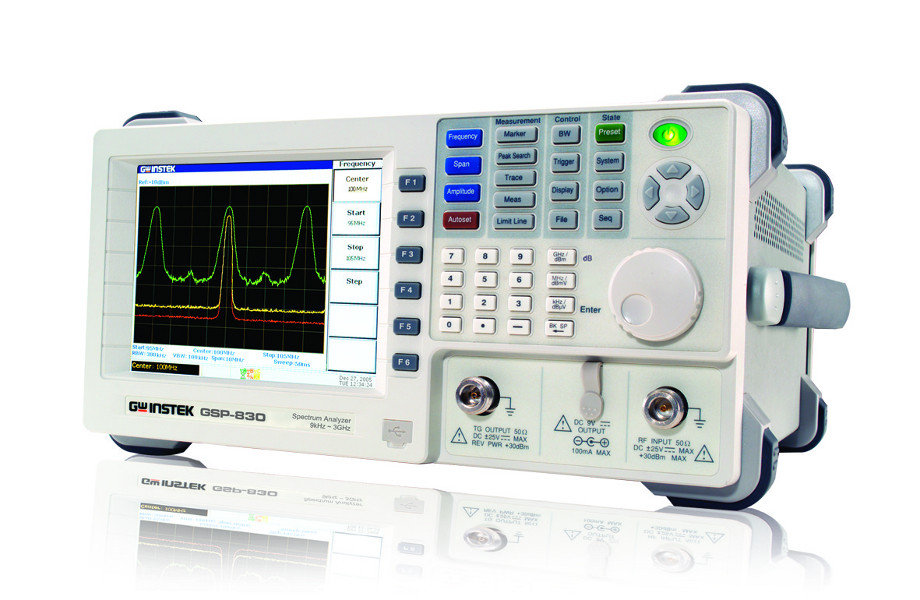

GW Instek GSP-830 3GHz Spectrum Analyzer

GW Instek GSP-830 3GHz Spectrum Analyzer

The GSP-830 is one of the most advanced Spectrum Analyzer GW Instek has produced to date. The GSP-830 has an exceptional noise floor of -152dBm/Hz; combined with the optional GAP-802 preamplifier, the noise floor can reach a remarkable -172dBm/Hz. With a low noise floor, the GSP-830 is more than capable of finding limits; Trace Detection, combined with an easy-to-use interface, makes the GSP-830 an ideal solution for spectrum analysis. Using the Auto Sequence mode, advanced users can define their own macros in 10 Sequence sets. Repeat or Single run mode can be used to streamline repetitive tasks. PC connection is effortless and versatile supporting USB host/device, RS232C, VGA and GPIB (optional) for remote monitoring, control and analysis.

Features

Low Noise Floor(-117dBm@1GHz, 3k RBW)
Sequence Programming Functions
ACPR, OCBW, Channel Power, N-dB and Phase Jitter Measurements
10 Markers with Delta Marker, Peak Functions
AC/DC/Battery(Option)three modes of power supply
USB/RS-232C/GPIB(Option) Interface
6.4" TFT Color LCD, Resolution: 640x480

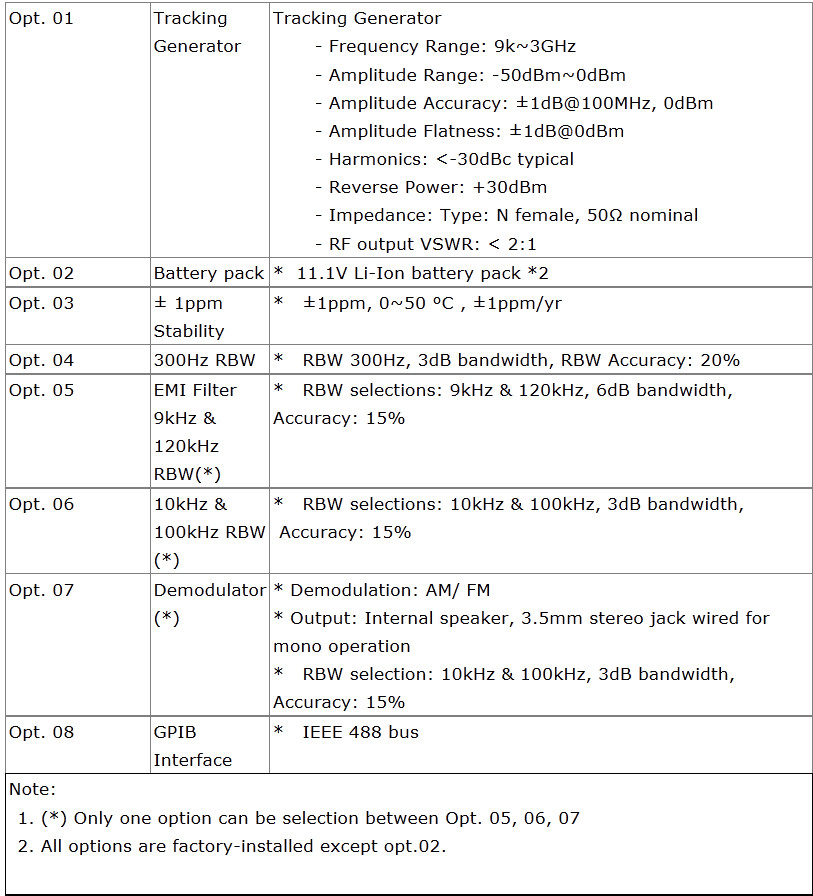

Optional Tracking Generator
Optional Preamplifier

	In the split window mode, you can measure two traces at the same time with different scale settings. More importantly, real-time display update is maintained under the split window mode. This feature is especially useful when measuring harmonics.
	Breaking out of the traditional methodology, GSP-830 has adopted status icon to show the current instrument state in the display. The well-considered pictures help you grasp the current condition immediately. No need to worry about other functions or settings causing measurement errors.
