GW Instek GPS-3030D DC Power Supply
The GPS-Series are single output, 54 to 90W, linear DC power supplies. The GPS-Series include both analog and digital display meters with varying power outputs. The GPS-Series feature Overload and reverse polarity protection as well as high regulation and low ripple / noise that are maintained at 0.01% and < 1mVrms, respectively. Continuous or dynamic internal load selection accommodates applications such as pulsed current. Remote control terminals offer programming and operation from an external device.
Features
- Light and Compact Design
- 0.01% High Regulation
- Constant Voltage and Constant Current Operation
- Remote Control for External Programmability
- Internal Select for Continuous or Dynamic Load
- Low Ripple and Noise
- Overload and Reverse Polarity Protection
- Series or Parallel Operation
- Optional European Type Jack Terminal for GPS-3030/GPS-3030D/GPS-3030DD

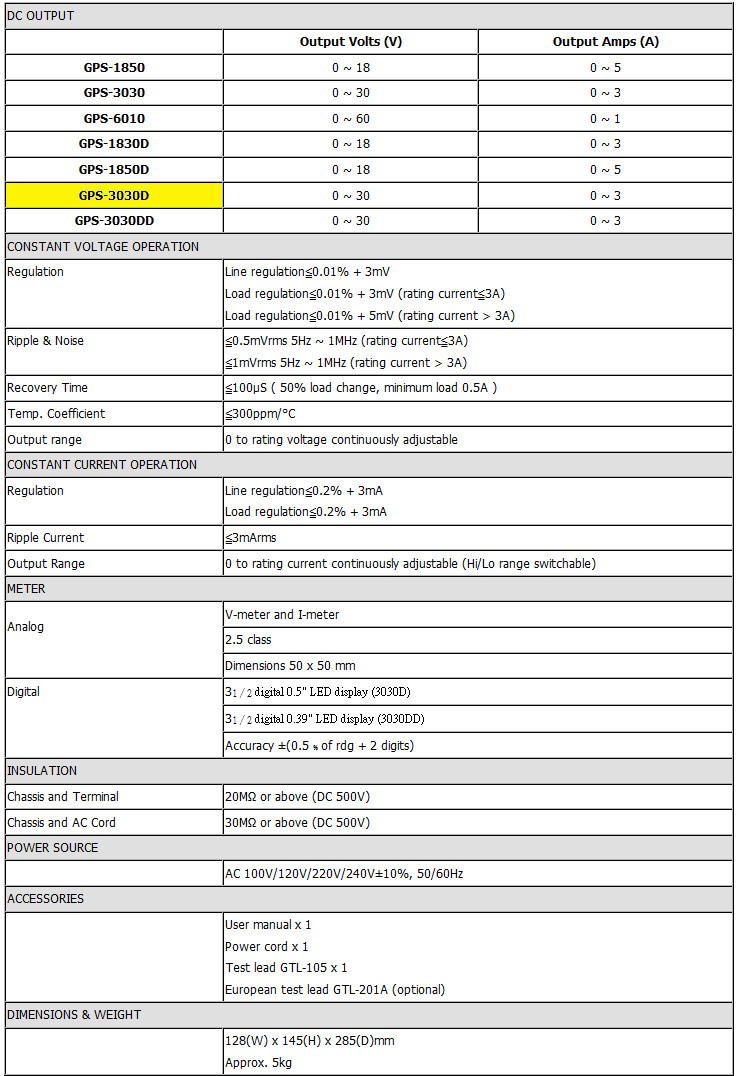

Technical Specification
|
GW GPS-1850D 0 ~ 18V; 0 ~ 5A.
|
GW GPS-1830D 0 ~ 18V; 0 ~ 3A.
|
GW GPS-3030DD 0 ~ 30V; 0 ~ 3A.
| |
