GW Instek GPS-2303 DC Power Supply
|
Item Number: GPS-2303
Manufacturer: GW Instek
Part Number: GPS-2303
Product Options
GW Instek GPS-2303 Calibration Options
* Whole number only
|
|
GW Instek GPS-2303 DC Power Supply
The GPS-Series are 2-4 channel, 180 to 200W output, linear DC power supplies. Overload and reverse polarity protection, and an output on/off switch keep the GPS-Series and their load safe from unexpected conditions. A High regulation (0.01%+3mV) and low ripple/noise (< 1mVrms, 5Hz~1MHz) are maintained for channel 1 and 2 in constant voltage mode. Automated cooling fan speed control minimizes fan noise according to load conditions, ensuring quiet operation. The GPS-Series are an ideal solution for lightweight, inexpensive bench-top or portable applications requiring high regulation and multiple outputs.
Features
- 2, 3 and 4 Independent Isolated Output
- Four "3 Digits" LED Displays
- 0.01% Load and Line Regulation
- Low Ripple and Noise
- Tracking Operation and Auto Series/Parallel Operation
- Output ON/OFF Switch
- Output Voltage and Current Setting When Output Disable (Except for GPS-2303)
- Fan Speed Control Circuit to Minimize Fan Noise
- Over Load and Reverse Polarity Protection
- Optional European Jack Type Terminal

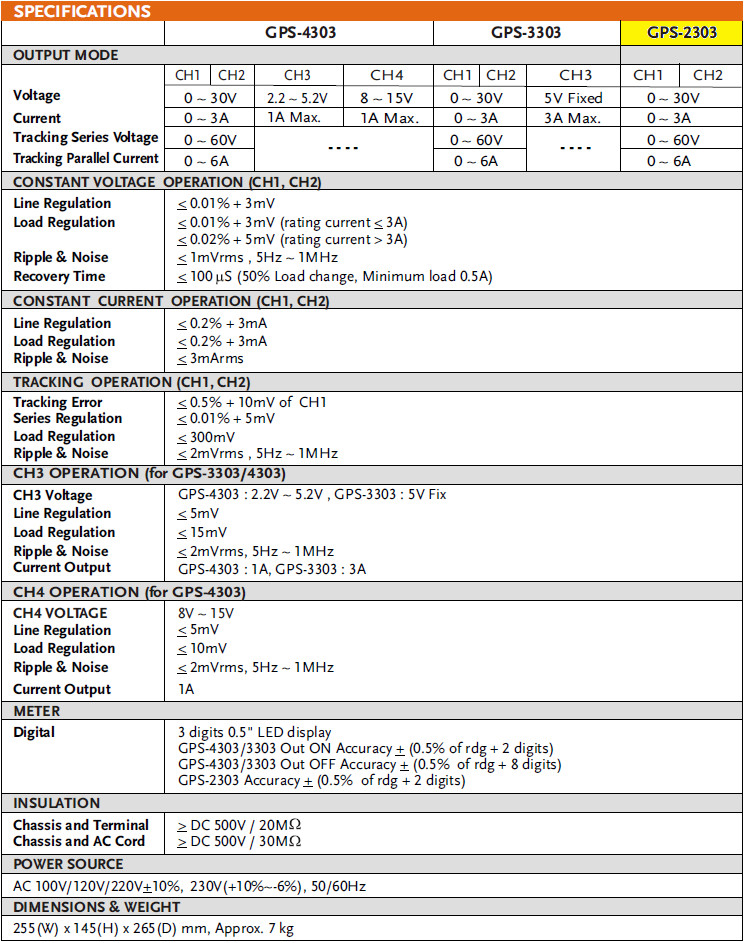

Technical Specification
|
GW GPS-3303 Output Watts: 195W; CH1 / CH2: 0~30V/0~3A; CH3: 5V Fixed /3A Max.
|
GW GPS-4303 Output Watts: 200W; CH1 / CH2: 0~30V/0~3A; CH3: 2.2~5.2V/1A Max; CH4: 8~15V/1A Max.
|
