GW Instek GPD-3303D DC Power Supply
|
Item Number: GPD-3303D
Manufacturer: GW Instek
Part Number: GPD-3303D
Product Options
GW Instek GPD-3303D Calibration Option
* Whole number only
|
|
GW Instek GPD-3303D DC Power Supply
The GPD-X303S Series contain the superior technology and high quality which GW Instek had established through its long history of power supply design and manufacturing.The GPD-X303 Series offers digital panel control, large display, bright LED indicators, high output resolution, 4 sets of setup memory, USB remote control and smart cooling fan control. Additionally , the GPD-X303S Series provide easy operation , a wide selection of panel setting and operation , a wide selection of panel settings. All these features make the GPD-X303 Series the most proming new comer in the power supply market.
Features
- 2/3/4 Independent Isolated Output
- 4 LED Display Sets: 3 digits after decimal point
- Minimum Resolution :
1mV/1mA(GPD-2303D/GPD-3303S/GPD-4303S)
100mV/10mA(GPD-3303D)
- Digital panel control(rotary encoder Switch, rubber key with indicator)
- User-friendly operation, coarse/fine volume control
- 4 Sets Save/Recall
- Key-Lock
- Output on/off
- Tracking Series and Parallel mode
- Smart cooling fan achieving low noise
- USB Standard Interface
- PC Software & USB Driver
- Labview driver

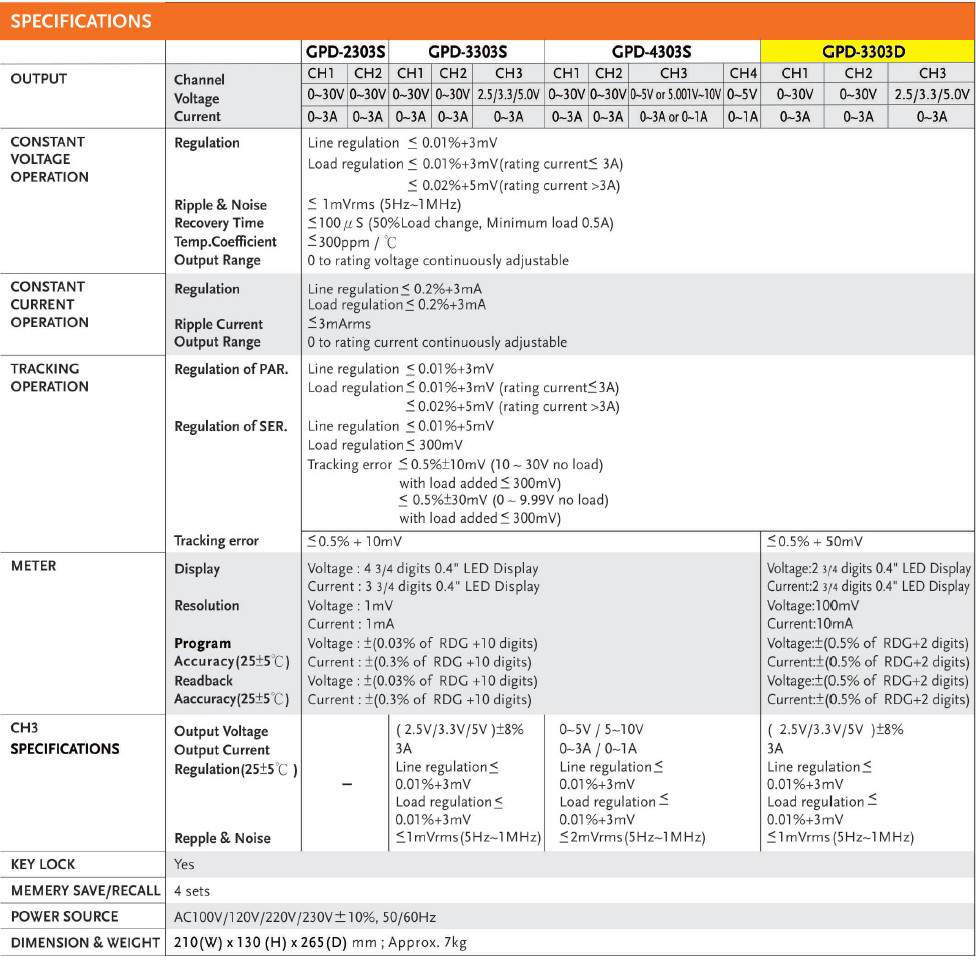

Technical Specifications
|
GW Instek GPD-3303S Channel 1&2: 0~30V, Channel 3: 2.5V/ 3.5 / 5.0V.
|
GW Instek GPD-4303S Channel 1&2: 0~30V, Channel 3: 0~5V / 5.001~10V.
|
