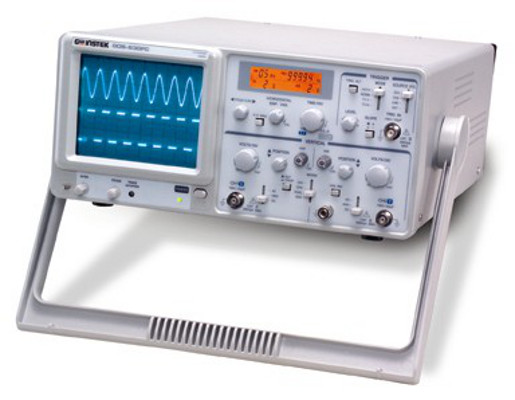

GW Instek GOS-630FC Analog Oscilloscope
|
Item Number: GOS-630FC
Manufacturer: GW Instek
Part Number: GOS-630FC
* Whole number only
|
|
GW Instek GOS-630FC Analog Oscilloscope
The Economic Oscilloscope GOS-630FC establishes a brand new benchmark for similar categories. New and innovative functions, including LCD Readout Display, Frequency Counter, and Auto Time-Base setting, are provided as standard features. With a 30MHz bandwidth and valuable features, GOS-630FC is priced at the basic Oscilloscope level. 1mV/div High Vertical Sensitivity is able to capture small signal variations in the input source. Additional functions, such as XY mode display, MAG function (Time based Magnified), and Z-axis Input, extend the application range of GOS-630FC to both education and industry fields.
Features
- 1mV/div High Vertical Sensitivity
- Internal 5 Digits Real-Time Frequency Counter
- LCD Readout Display for Vertical/ Horizontal/Frequency Measurement
- Auto Time-Base
- Buzzer Alarm
- TV(TV-V, TV-H) Trigger Modes
- XY Mode
- Z-Axis Input and External Trigger Input

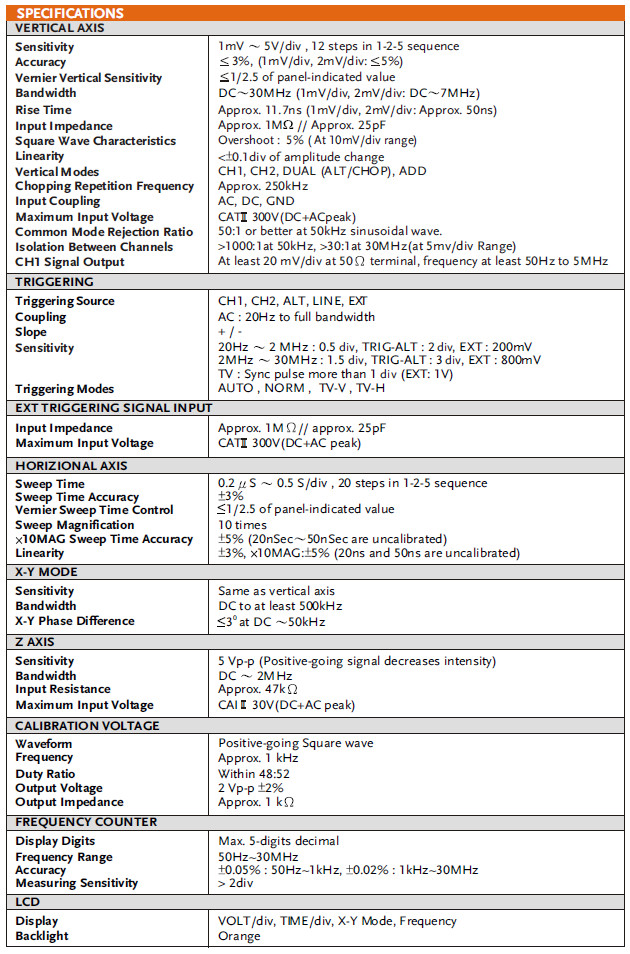

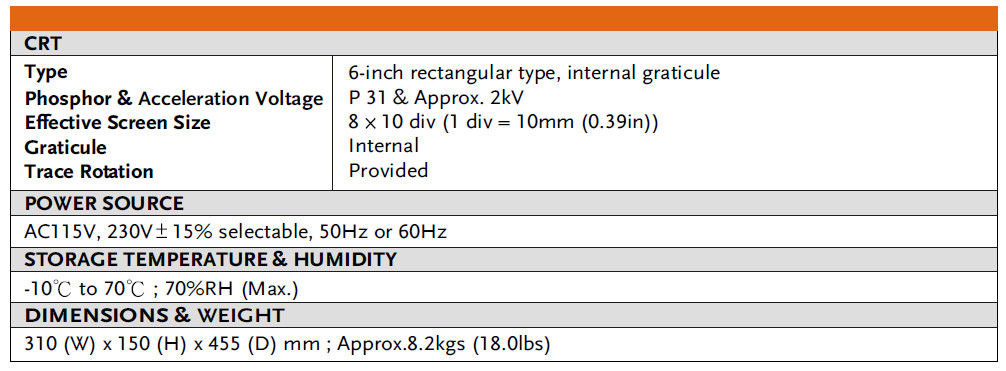

Technical Specifications
|
