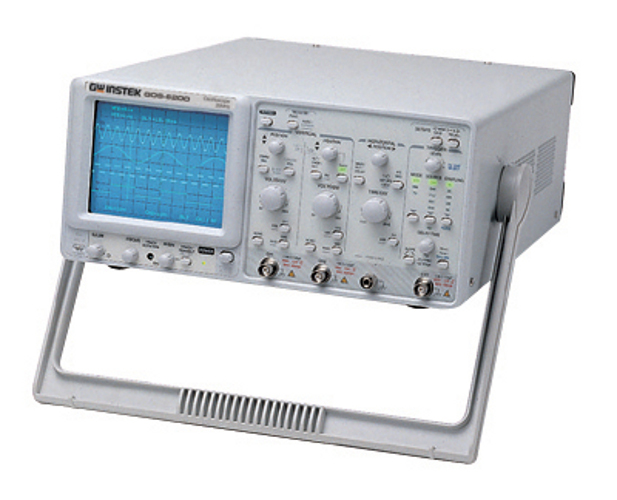

GW Instek GOS-6200 Analog Oscilloscope
|
Item Number: GOS-6200
Manufacturer: GW Instek
Part Number: GOS-6200
|
|
GW Instek GOS-6200 Analog Oscilloscope
The GOS-6200 Analog Oscilloscope satisfies the massive needs for diverse professional applications up to 200MHz. Embedded with Delay Sweep and Hold Off features, the GOS-6200 is capable of measuring sophisticated signals. The Cursor Readout with 7 measurements, Panel Setup Save/Recall, and the built-in 6 Digit Universal Counter all make waveform observation and measurement easier, faster and more accurate. The advanced Time Base Auto Range function acquires waveforms only with one push of a button. The Counter function, 10 memory settings, and advanced Auto functions are among some of the extra benefits available in GOS-6200.
Features
- 200MHz Bandwidth, Dual Channel, Delayed Sweep
- Auto Set
- Built-in 6 Digits Counter

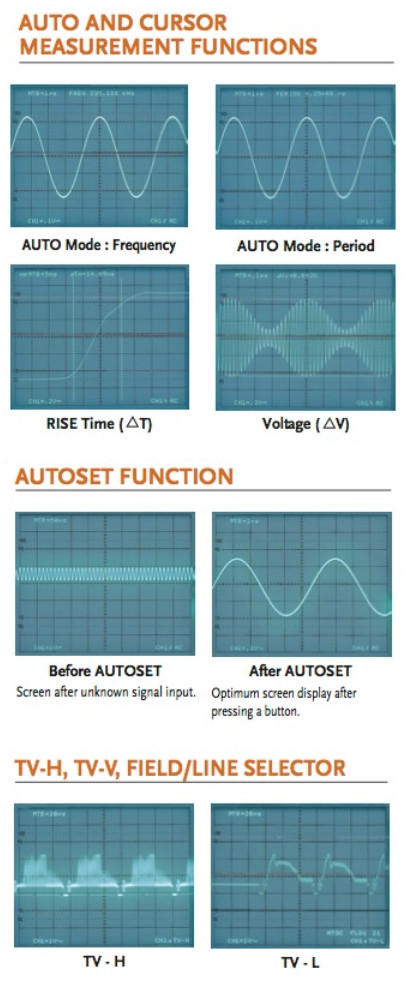

- Cursor Readout with 7 Measurements
- 10 Sets Memory for Front Panel Setting Save & Recall
- TV-Line Selection (NTSC, PAL, SECAM)
- Panel Setup Lock of Digital-Control Functions
- Buzzer Alarm
- LED Indicators

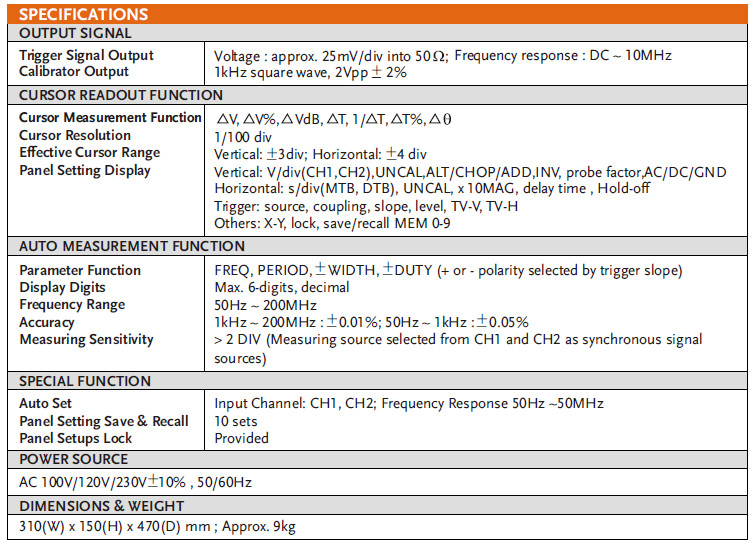

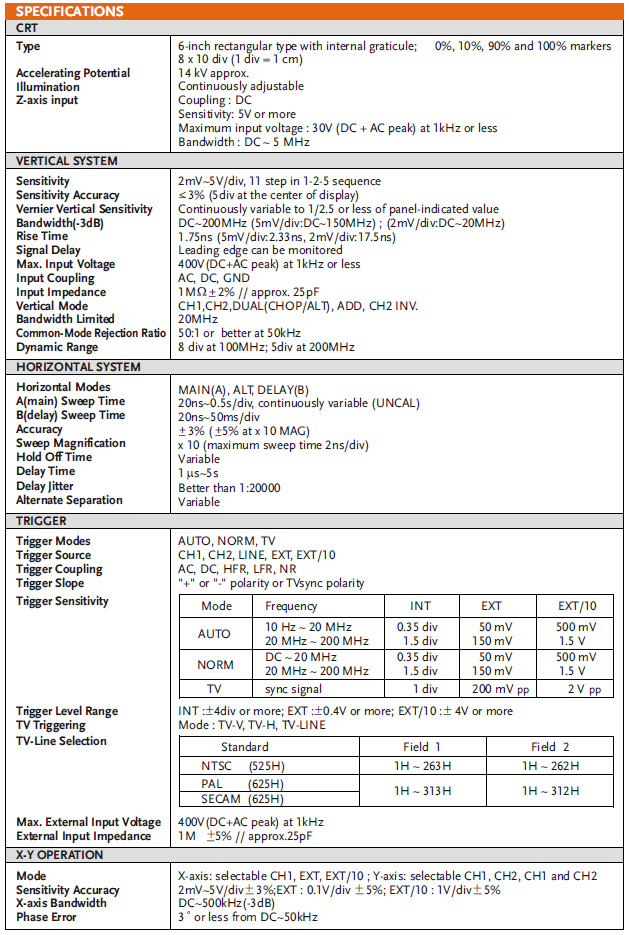

 Technical Specifications
|
