GW Instek GOM-801H DC Milli-ohm Meter
|
Item Number: GOM-801H
Manufacturer: GW Instek
Part Number: GOM-801H
Product Options
GW Instek GOM-801H Calibration Options
* Whole number only
|
|

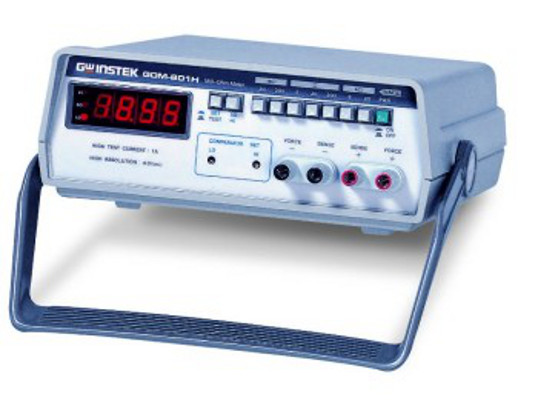

GW Instek GOM-801H DC Milli-ohm Meter
The GOM-801H milliohm meter is the ideal device for quick and precise component and material resistance measurements. The main display is equipped with a 3 1/2 digit 0.5" red LED with comparator indicators. Measurable objects can cover cable joints, earth bonds, switches, motors, transformers and generators. The front panel features seven selectable test ranges, 20mΩ to 20kΩ. The internal comparator is fully adjustable for the user settable Hi/Lo comparison indicator. The GOM-801H is the best choice for an inexpensive, easy to use, yet reliable milliohm meter.
Features
- 3 1/2 Digits 0.5" LED Display
- Measures from 20mΩ ~ 20kΩ in 7 Ranges
- 1A High Test Current
- High Resolution 10uΩ
- Hi/Lo Comparator Indicator and Buzz Alarm

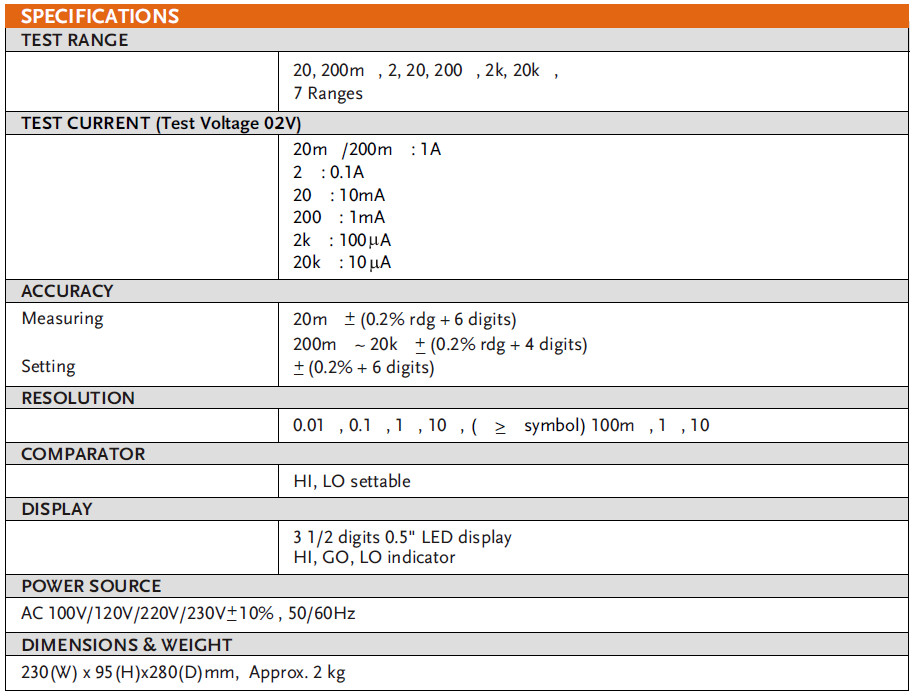

Technical Specifications
|
