GW Instek GFG-8020H Function Generator
|
Item Number: GFG-8020H
Manufacturer: GW Instek
Part Number: GFG-8020H
Product Options
* denotes required field
GW Instek GFG-8020H Calibration Options*
* Whole number only
|
|

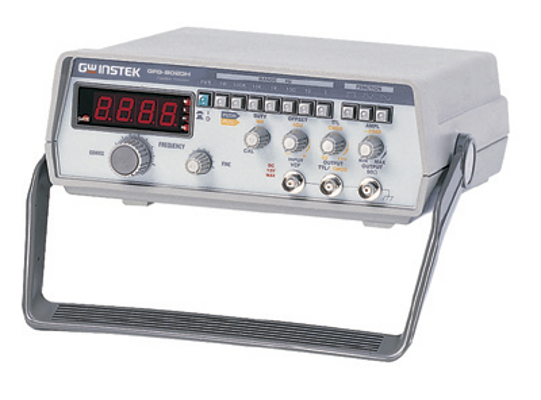

GW Instek GFG-8020H Function Generator
The GFG-8020H Function Generator delivers one of the most economic and feature-rich solutions available in the 2MHz frequency range. The GFG-8020H offers extra value with CMOS output, a built-in 4-digit counter, Coarse and Fine tuning with a 1000 : 1 Tuning Range, and a digital LED display. Combined with functions, such as Variable DC Offset Control, Output Overload Protection, and VCF input, the GFG-8020H is suitable for the most demanding budgets in education or instrument testing.
Features
- Frequency Range : 0.2Hz ~ 2MHz
- Coarse and Fine Tuning
- Waveform : Sine, Triangle, Square, TTL Pulse
- CMOS Output
- Built-In 4 Digits Counter (INT Only)
- Large 0.5" LED Display
- Variable DC Offset Control
- Output Overload Protection
- VCF Input Function

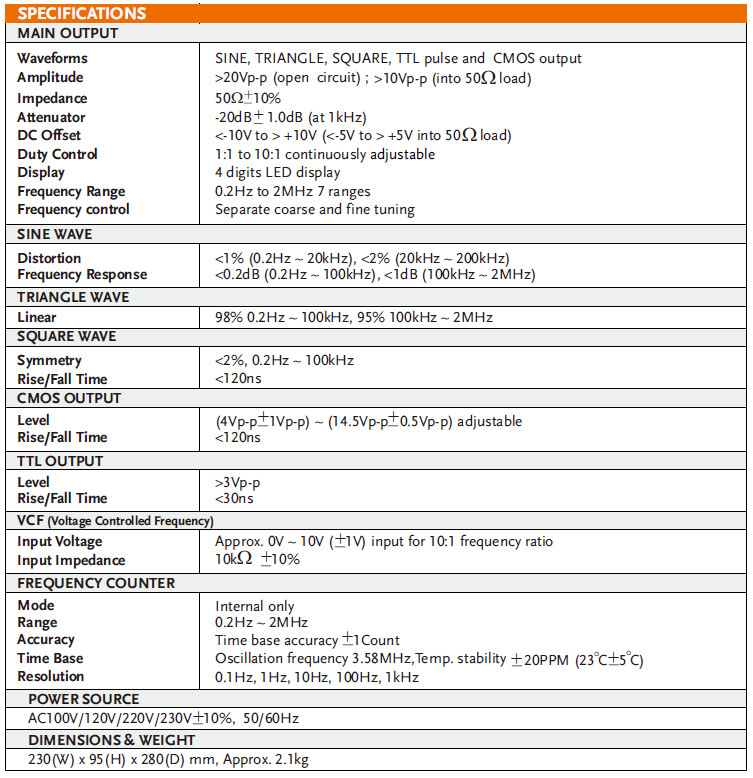

Technical Specifications
|
