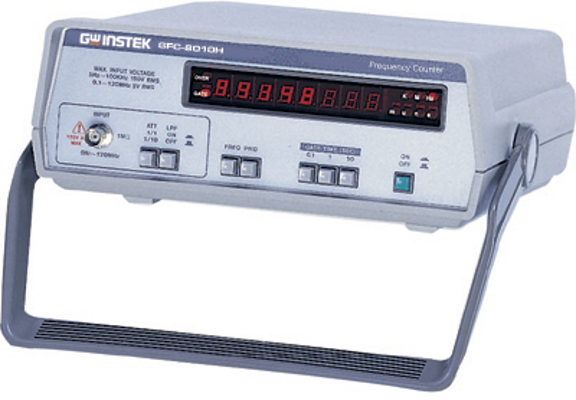

GW Instek GFC-8010H Digital Frequency Counter
|
Item Number: GFC-8010H
Manufacturer: GW Instek
Part Number: GFC-8010H
Product Options
GW Instek GFC-8010H Calibration Options
* Whole number only
|
|
GW Instek GFC-8010H Digital Frequency Counter
The GFC-8010H performs virtually most of the counting measurements required in laboratories, in terms of both period and frequency. 8 digits LED display with distinctive red color and overflow indicator provides fast and clear view. With easy operation of all functions neatly organized on the front panel, compact size suitable for both portable and bench-top usage, the GFC-8010H serves users as a handy reference.
Features
- 10Hz ~ 120MHz Range
- 8 Digits Display (0.3"LED)
- 15mV rms High Sensitivity
- 5PPM High Stability Time Base
- Frequency and Period Measurement
- Low Pass Filter Function
- Over-Flow Indicatot

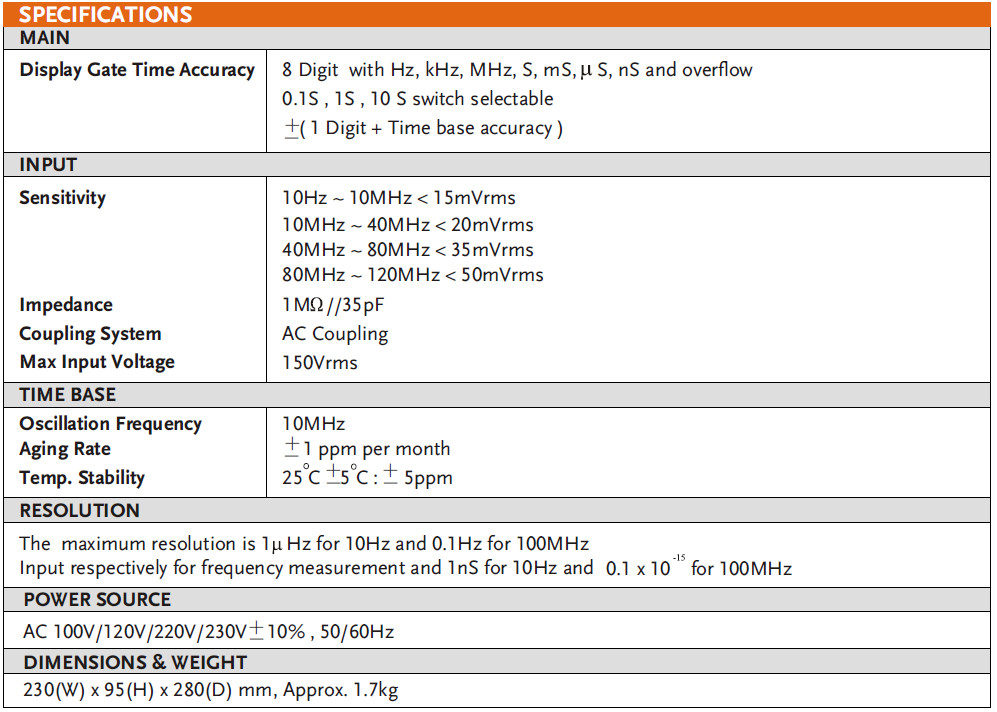

Technical Specification
|
GW GFC-8131H can operate at up to 1.3GHz.
|
GW GFC-8270H can operate at up to 2.7GHz.
|
