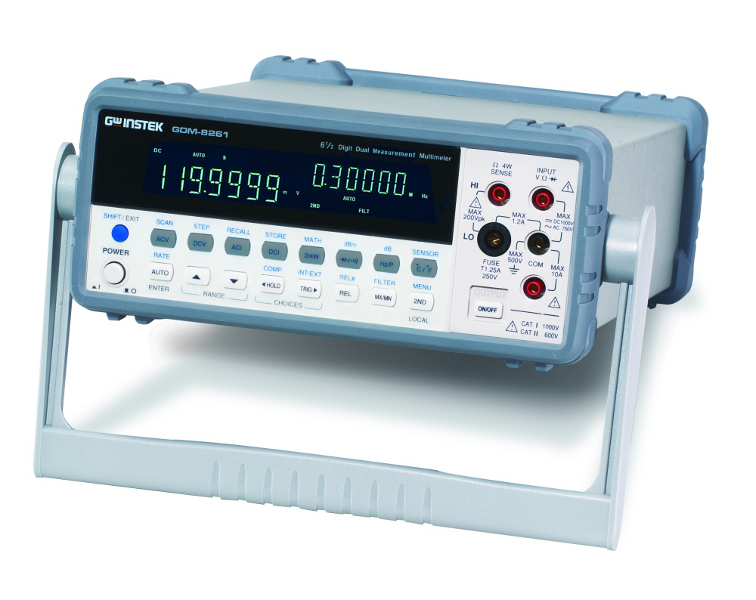

GW Instek GDM-8261 Digital Multimeter

     The GDM-8261 is a high precision 6 ½ digit Digital Multimeter with dual measurement displays, 11 measurement functions and 10 math functions at high accuracy (35ppm DC voltage accuracy) to accommodate the most frequently performed parameter measurements in various application fields today. The GDM-8261 adopts a scanner card, which carries 16 V-Channels and 2 I-Channels, to facilitate the measurements of multiple-test points on either a device or multiple devices all at a press of a button. With this multi-point measurement capability, the GDM-8261 can be used as a semi-auto ATE System to increase the throughput of manufacturing test or as a data logger to perform long term monitoring or characterization of a DUT.

• 6 1/2 Digit Display：1,200,000 counts
• DCV Basic Accuracy：0.0035%
• Dual Measurements to perform two selected measurements simultaneously
• Bright Vacuum Fluorescent Display (VFD)
• 11 Measurement Functions & 10 Math Functions
• High Resolution: Up to 100pA with DCI and 1nA with ACI Measurements
• Temperature Measurement (RTD & Thermocouple) from -200°C ~ +1820°C
• High Transmission Speed: Up to 2,400 readings/sec through the USB
• Standard Interfaces：USB, RS232C, Digital I/O
• Optional Interfaces：GPIB or LAN
• Optional Scanner Card：GDM-SC1 (V ch x16, I ch x2)

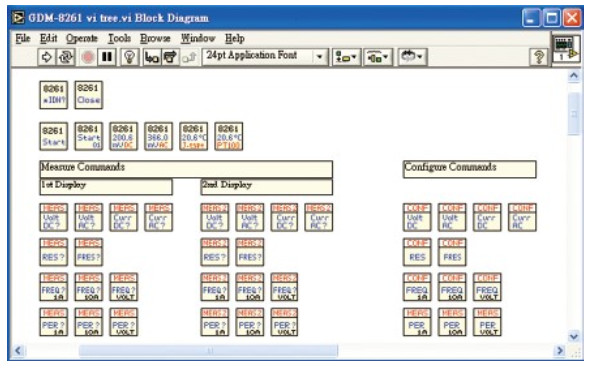

• Free PC software：DMM Viewer , LabVIEW Driver

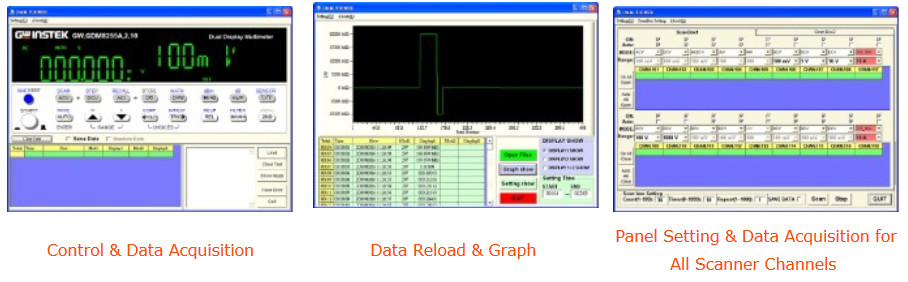

DMM-Viewer

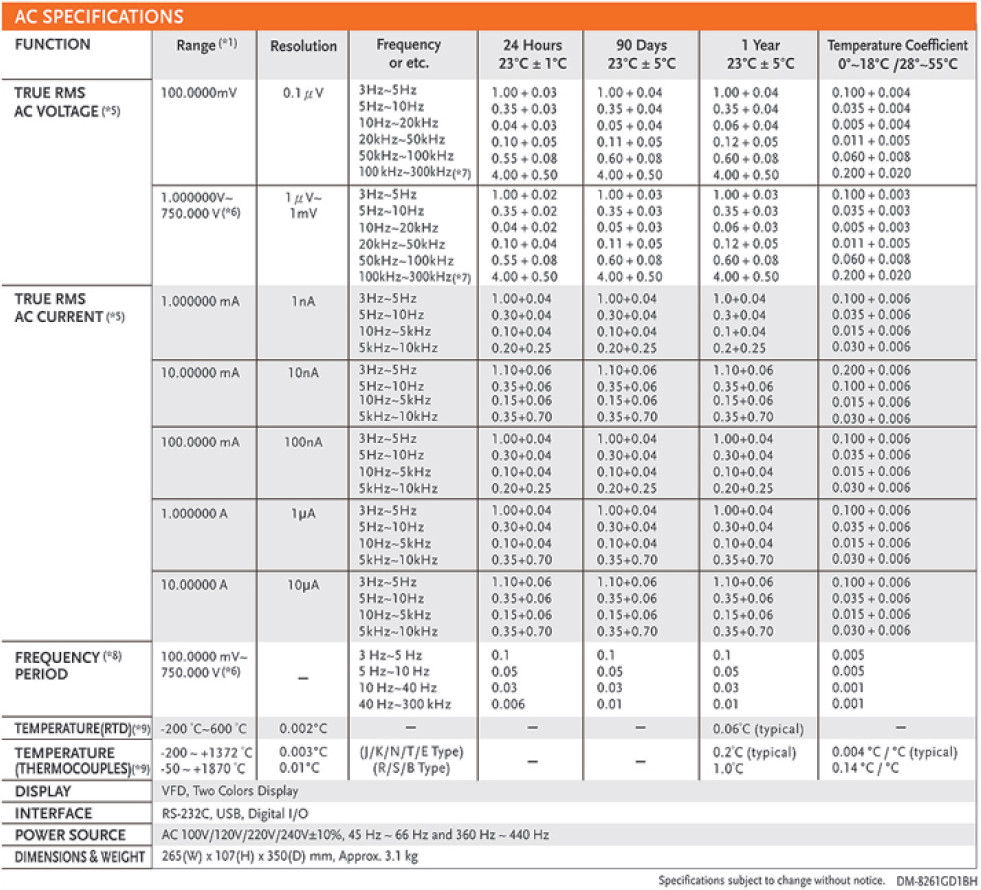

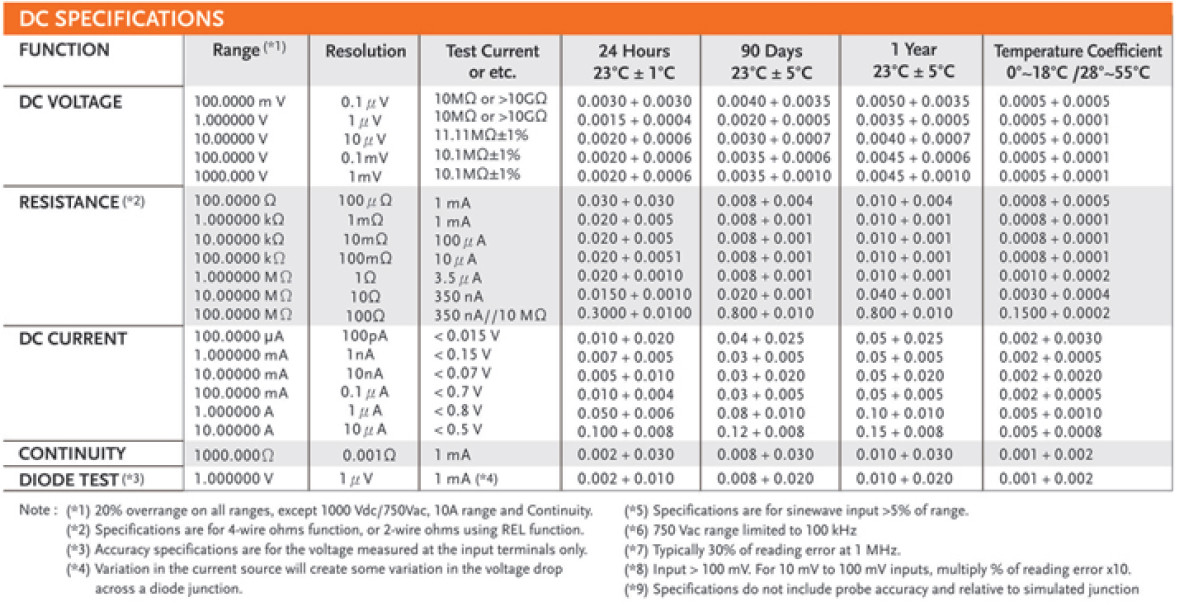

Technical Specifications

GW GDM-8261 Data Sheet
