GW Instek PSW 80-27 Programmable Multi-Range Switching DC Power Supply
|
Item Number: PSW 80-27
Manufacturer: GW Instek
Part Number: PSW 80-27
Product Options
GW Instek PSW 80-27 Calibration Options
* Whole number only
|
|
GW Instek PSW 80-27 Programmable Multi-Range Switching DC Power Supply
The PSW-Series is a single output multi-range programmable switching DC Power Supply covering a power range up to 1080W. This series of products include six models with the combination of 30V,80V and 160V rated voltages and 360W, 720W and 1080W maximum output powers. The multi-range feature allows the flexible and efficient configuration of voltage and current within the rated power range. As the PSW-Series can be connected in series for maximum 2 units or in parallel for maximum 3 units, the capability of connecting multiple PSW units for higher voltage or higher current output provides a broad coverage of applications. With the flexibility of multi-range power utilization and series/parallel connection, the PSW Series significantly reduces the user’s investment for various power supply products to accommodate the projects with different power requirements.
Features
- Voltage Rating: 30/80V/160V, Output Power: 360W ~ 1080W
- Constant Power Output for Multiple Range (V&I) Operation
- CV/CC Priority; Particularly Suitable for the Battery and LED Industry
- Adjustable Slew Rate
- Series and Parallel Operation (2 units in Series / 3 units in Parallel Maximum)
- High Efficiency and High Power Density
- 1/6 Rack Mount Size Design (EIA/JIS Standard)
- Standard Interface: LAN,USB,Analog Control Interface, GPIB-USB Adaptor(Optional)
- Labview Driver

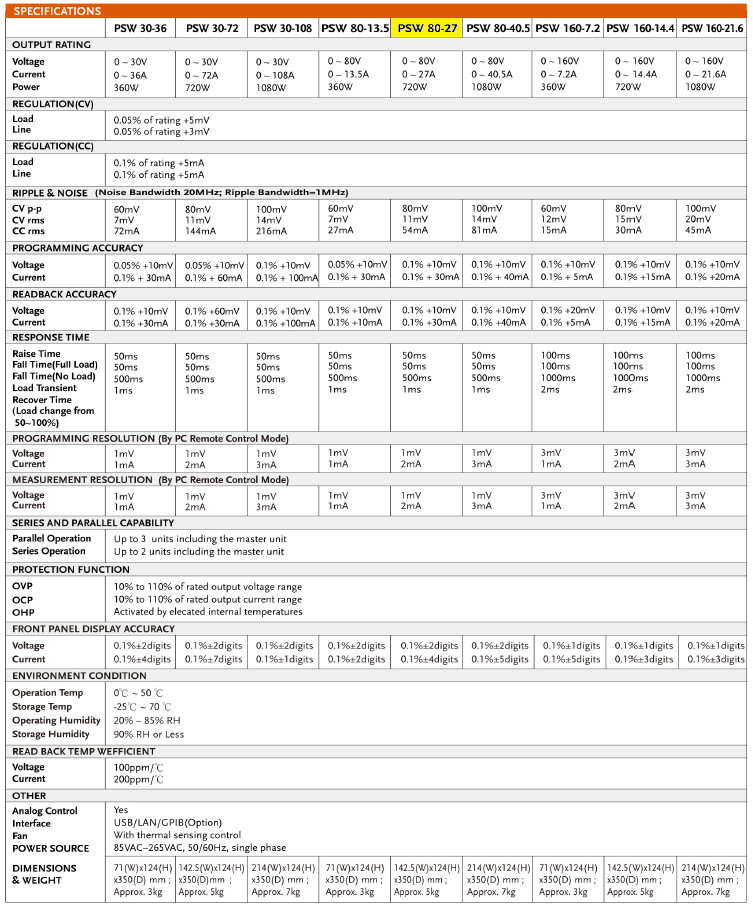

Technical Specifications
|
GW Instek PSW 80-13.5 Output Ranges: 0 ~ 80V(Voltage); 0 ~ 13.5A(Current); 360W(Power).
|
GW Instek PSW 80-40.5 Output Ranges: 0 ~ 80V(Voltage); 0 ~ 40.5A(Current); 1080W(Power).
|
GW Instek PSW 30-108 Output Ranges: 0 ~ 30V(Voltage); 0 ~ 108A(Current); 1080W(Power).
| |
