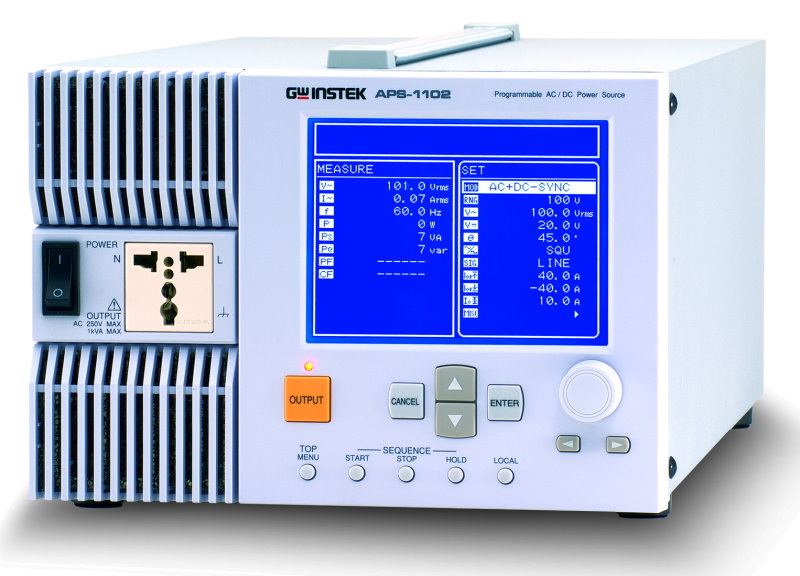

GW Instek APS-1102 AC power supply
|
Item Number: APS-1102
Manufacturer: GW Instek
Part Number: APS-1102
|
|
GW Instek APS-1102 AC power supply
APS-1102 is not only in the role as a precision AC/DC power source but also a powerful analyzer, containing abundant features for the testing and characteristic analysis of power supplies, electronic devices, components and modules. Besides providing AC/DC power, APS-1102 also allows free programming of outputs for the simulation of a power source with abnormal variations. The instantaneous interruption, frequency sweeping, voltage sweeping, and arbitrary waveforms of power source can be easily generated in accordance with the test requirements.
The output function includes two main modes, AC and AC + DC. Each mode can be combined with any of the four signal sources, internal (INT), external (EXT), internal + external (ADD), and synchronization, to give an ultimate flexibility of power source setting. APS-1102 includes a multi-functional and user-friendly software, which supports the remote control of panel operations, Sequence editing and execution, Arbitrary waveform editing and transfer, and Data logging via USB interface.
Features
- AC power supply(Power Supplies
- 5.7”large LCD display
- Various output modes and measurement functions
- AC-superimposed DC output
- Capacitor input load supported
- Sequence function
- Limiter function
- 30 Sets of SAVE / RECALL memories
- USB(USBTMC)standard for remote control
- Output On/Off Function
- AC power supply

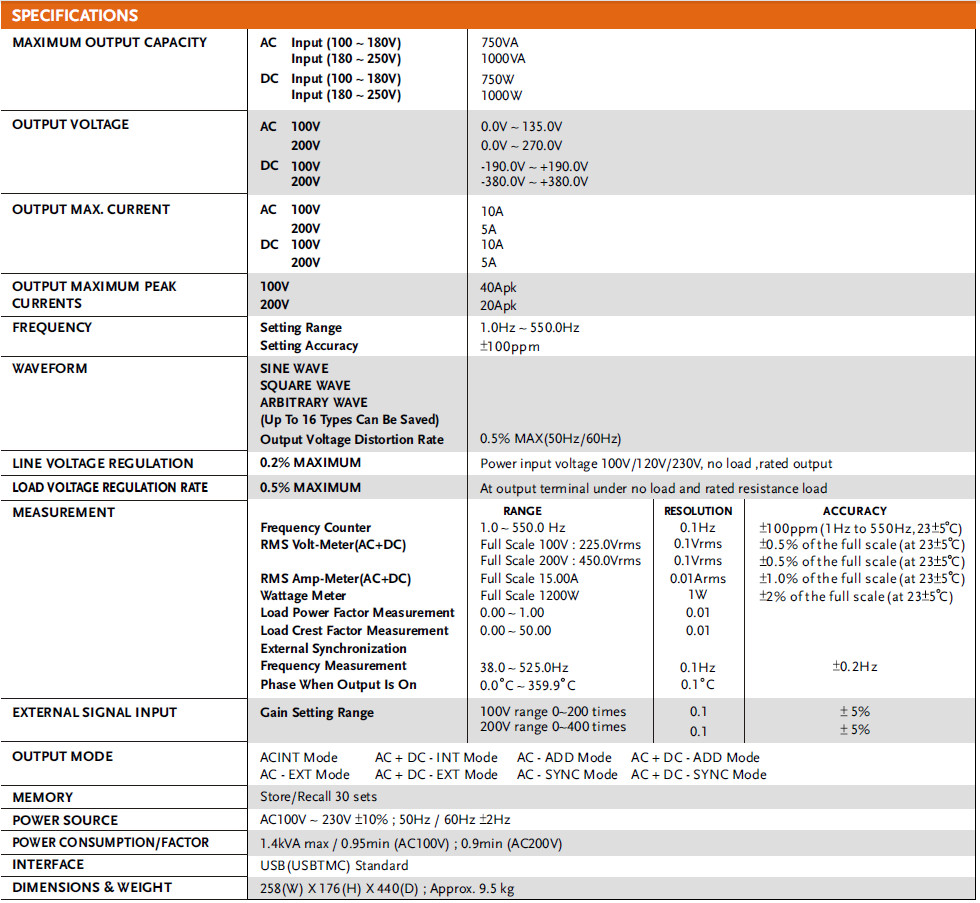

Technical Specifications
|
