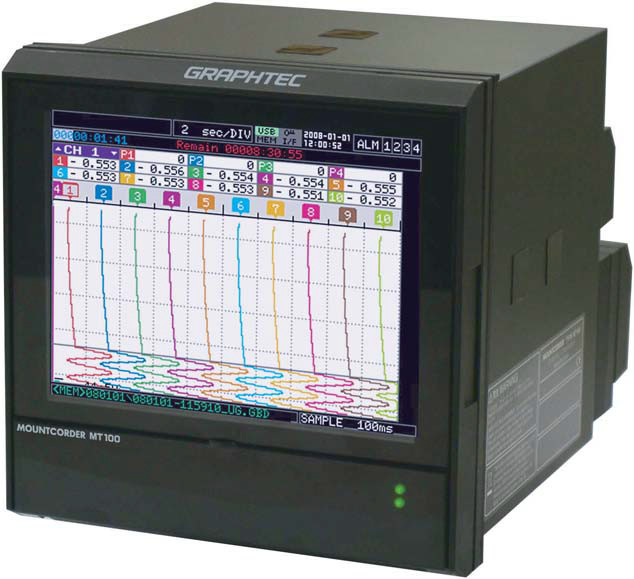

Graphtec MT100 Paperless Recorder
|
Item Number: MT100
Manufacturer: Graphtec Corp
Part Number: MT100
Product Options
Graphtec MT100 Accessory Options
* Whole number only
|
|
Graphtec MT100 Paperless Recorder
Desktop case
(option)
Features
- Isolated 10 channel multi function input Voltage/Temperature/Humidity/Pulse/Logic
- Long term large size data can be stored directly into the USB memory Real time data transfer by LAN/USB
- Dust proof, drip proof, vibration proof for use at harsh environment

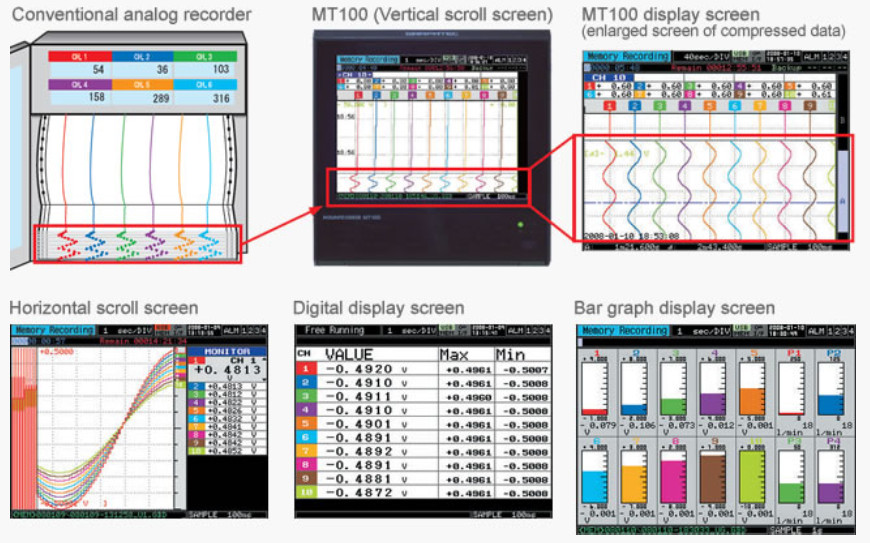

- Analog recorder chart paper image for easy-to-read waveform display
- Compact design 144(W) x 144(H) x 200(D) mm

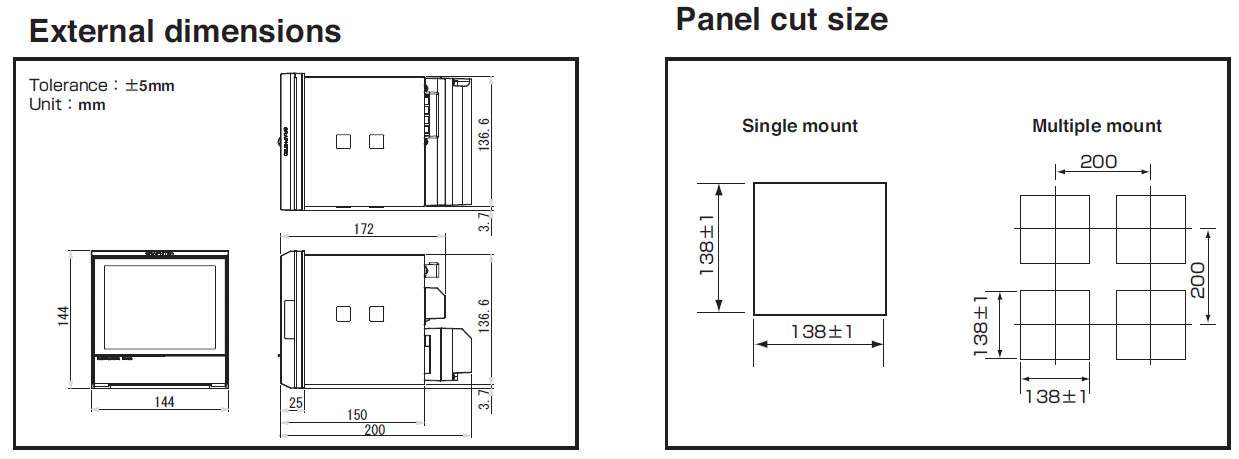

 Dimensions Technical Specifications
Main Unit Specifications
|
Item
|
Description
|
|---|
|
Number of analog input channels
|
10 channels
|
|
External Input/Output
|
Trigger input, Logic input 4 ch or Pulse input 4 ch, Alarm output 4 ch
|
|
Sampling interval
|
100 ms to 1 h (Max:100 ms/10ch)
|
|
TIME/DIV
|
1 sec/DIV to 72 h/DIV
|
|
Trigger function
|
Type
|
Start
|
Data capture starts when a trigger is generated
|
|
Stop
|
Data capture starts when a trigger is generated
|
|
Condition
|
Start
|
Off, Level, Alarm, Scheduled time, External, Day
|
|
Stop
|
Off, Level, Alarm, Scheduled time, Time, Day, External
|
|
Condition
|
Analog
|
H, L, Window In, Window Out, Rate of change
|
|
Logic
|
H, L
|
|
Pulse
|
H, L, Window In, Window Out, Rate of change
|
|
Alarm output
|
No. of channels
|
4
|
|
Output format
|
Relay contact output (NO/NC)
|
|
Output conditions
|
Level judgement, Window judgement, Logic pattern judgement, Pulse judgement
|
|
Output terminal
|
M4 screw terminal
|
|
Rating
|
250 VAC/2A, 30 VDC/2A
|
|
Pulse input range
|
Count mode
|
50, 500, 5000, 50 k, 500 k, 5 M, 50 M, 500 M C/F.S. (max. 50 k/sampling interval)
|
|
Inst. Mode
|
50, 500, 5000, 50 k, 500 k, 5 M, 50 M, 500 M C/F.S. (max. 50 k/sampling interval)
|
|
RPM mode
|
50, 500, 5000, 50 k, 500 k, 5 M, 50 M, 500 M RPM/F.S. (max. 50 k/sec)
|
|
Calculation function
|
Statistics calculation *1
|
Average, Peak, maximum, Minimum, RMS (2 calculations can be set simultaneously)
|
|
Calculation between channels
|
Addition, Subtraction, Multiplication, Division (for analog input ch1 to ch10)
|
|
Wet-and dry-bulb temperature conversion
|
Humidity is calculated from the measured temperature of Wet-bulb and Dry-bulb
(Dry bulb : fixed to ch1, Wet bulb : fixed to ch2, Range 0 to 100 %)
|
|
Other function
|
Searching, Annotation input, Message, Marker function
|
|
Interface to PC
|
Ethernet (10BASE-T / 100BASE-TX), USB (Compatible with full speed)
|
|
Ethernet function
|
Web server function, FTP server function, FTP client function, NTP client function
|
|
USB function
|
USB drive mode (File transfer/delete of internal memory)
|
|
Internal storage device
|
Internal flash memory : 14 Mbyte, USB memory slot (compatible with full speed) *2
|
|
Display
|
Size
|
5.7 inch TFT color LCD
|
|
Displayed items
|
Waveforms + Digital values (vertical, horizontal), Digital + Calculation, Bar graph (vertical)
|
|
Clock accuracy (23°C environment)
|
±0.002 % (within approx. 50 sec per month)
|
|
Operating environment
|
Temperature : 0 to 50 °C, Humidity : 5 to 85 % R.H.
|
|
Withstand voltage
|
Between each input channel and GND: 1 minute at 350 Vp-p
|
|
Between input terminals: 1 minute at 350 Vp-p
|
|
Power supply
|
100 to 240 V AC / 50 to 60 Hz, M4 screw terminal (Power cord is not attached)
|
|
Power consumption
|
38 VA (when LCD is ON)
|
|
External dimensions (W x H x D)(approx.)
|
144 mm x 144 mm x 200 mm
|
|
Weight (approx.)
|
2.1 kg
|
|
Vibration resistance
|
Compatible with JIS Vibration testing methods for automobile Type 1 Class A-equivalent
|
|
Dust proof, Drip proof: IP65 compatible (for front panel only)
|
Analog input Specifications
|
Item
|
Description
|
|---|
|
Type of input terminal
|
M4 screw type terminal
|
|
Measurement range
|
Voltage
|
20, 50, 100, 200, 500 mV, 1, 2, 5, 10, 20, 50, V, 1-5 V F.S.
|
|
Temperature
|
Thermocouple : K, J, E, T, R, S, B, N, W (WRe5-26)
|
|
R.T.D. : Pt100, JPt100, Pt1000 (IEC751)
|
|
Humidity
|
0 to 100 % RH (Voltage 0 to 1 V conversion, when using optional B-530 humidity sensor is used)
|
|
Input filter
|
Off, 2, 5, 10, 20, 40 (Moving average)
|
|
Measurement accuracy *3
|
Voltage
|
±0.1 % of F.S.
|
|
Thermocouple
|
Measurement range
|
Accuracy
|
|
R/S
|
0 TS 100 °C
100 < TS 300 °C
R : 300 < TS 1600 °C
S : 300 < TS 1760 °C
|
± 5.2 °C
± 3.0 °C
± (0.05 % of rdg + 2.0 °C)
± (0.05 % of rdg + 2.0 °C)
|
|
B
|
400 TS 600 °C
600 < TS 1820 °C
|
± 3.5 °C
± (0.05 % of rdg + 2.0 °C)
|
|
K
|
-200 TS -100 °C
-100 < TS 1370 °C
|
|
|
E
|
-200 TS -100 °C
-100 < TS 800 °C
|
|
|
T
|
-200 TS -100 °C
-100 < TS 400 °C
|
|
|
J
|
-200 TS -100 °C
-100 < TS 100 °C
100 < TS 1100 °C
|
|
|
N
|
0 TS 1300 °C
|
|
|
W
|
0 TS 2000 °C
|
|
|
R.T.D.
|
Pt100
|
-200 to 850 °C (FS = 1050 °C)
|
|
|
JPt100
|
-200 to 500 °C (FS = 700 °C)
|
|
|
Pt1000
|
-200 to 500 °C (FS = 700 °C)
|
|
|
* If the reference junction compensation is internal, add ± 0.5 °C to each of the above values.
|
|
A/D converter
|
16 bit (out of which 14 are internally acknowledged)
|
|
Maximum input voltage
|
60 Vp-p (Between ± terminals)
|
|
60 Vp-p (Between input terminals)
|
|
60 Vp-p (Between input terminal and GND)
|
|
Withstand voltage
|
Between each input channel and GND: 1 minute at 350 Vp-p
|
|
Between input terminals: 1 minute at 350 Vp-p
|
Remarks
*1 for realtime and between cursors (when data reviewing)
*2 1 file 2 GB (it depends on used USB memory)
*3 Thermocouple: 0.32φ for T type, 0.65φ for other types
PC software specifications
|
Item
|
Description
|
|---|
|
Compatible OS
|
Windows 2000/XP/Vista (32 bit and 64 bit version)
|
|
Function
|
Control of main unit, Realtime data capture, File conversion
|
|
Max. number of controlable units
|
10 units
|
|
Max. number of controlable channels
|
100 channels
|
|
Settable items
|
AMP settings, Capture settings, Trigger/Alarm settings, Report settings, Other
|
|
Captured data
|
Realtime data, Internal memory data, USB memory data (CSV and Binary data)
|
|
Display
|
Analog waveforms, Logic waveforms, Pulse waveforms, Digital values
|
|
File conversion
|
Data conversion between cursors/All data
|
|
Monitor functions
|
Alarm monitor enables sending of email to the specified address
|
|
Dual display function
|
Current/previous data display
|
|
Statistics calculation, report
|
Maximum, minimum, average data during measurement
|
|
Report function
|
Automatic creation of daily or monthly files
|
|
