Graphtec GL820 Isolated Input, Multi-Channel Midi Logger
|
Item Number: GL820
Manufacturer: Graphtec Corp
Part Number: GL820
* Whole number only
|
|

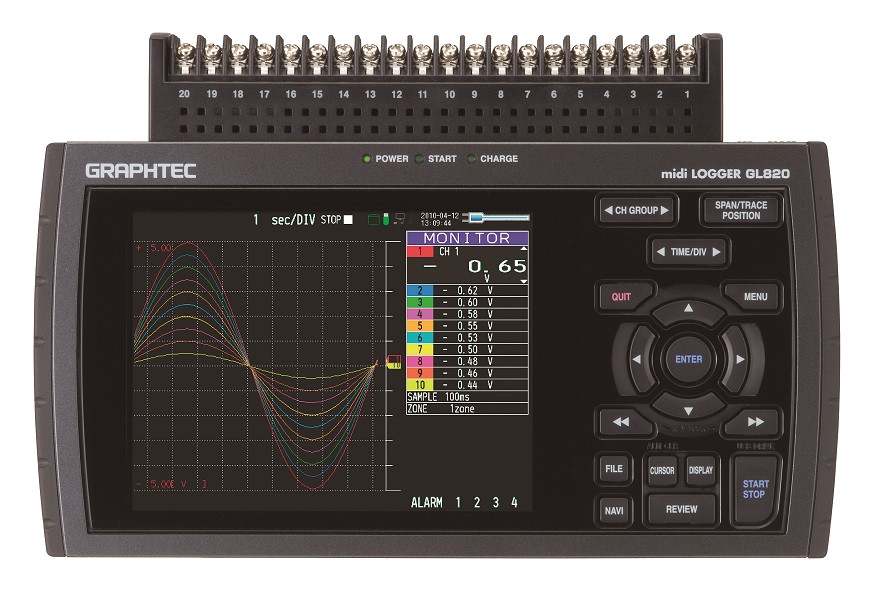

Graphtec GL820 Isolated Input, Multi-Channel Midi Logger
Huge 2GB Flash Memory, modular system allows expansion up to 200 channels.
Features
- Modular system allows expansion up to 200 channels
- All channels are isolated, each with multifunction input
- Huge built-in 2GB Flash memory
- Large easy-to-read 5.7-inch TFT colour LCD
- PC -friendly, supports USB memory stick, has USB and LAN ports
   Technical Specifications
GL820 Main Unit Specifications
|
item
|
Description
|
|---|
|
Number of analog input channels
|
20 ch, Expandable up to 200 ch by unit of 20 ch
|
|
External input output
|
Input *1
|
Trigger or Sampling input 1ch, Logic or Pulse input 4 ch
|
|
Output *1
|
Alarm output 4 ch
|
|
Sampling interval
|
10 ms to 1 h (in 10 ms to 50 ms, voltage only and limited channel), External
|
|
Time scale
|
1 sec to 24 hour/division
|
|
Trigger function
|
Action
|
Start or stop capturing data by the trigger
|
|
Source
|
Start: Off, Input signal, Alarm, External *1, Clock, Week or Time
|
|
Stop: Off, Input signal, Alarm, External *1, Clock, Week or Time
|
|
Combination
|
OR or AND condition at the level of signal or edge of signal
|
|
Condition
|
Analog: Rising, Falling, Window-in, Window-out
|
|
Pulse: Rising, Falling, Window-in, Window-out
|
|
Logic: Rising, Falling
|
|
Alarm function
|
Detecting method
|
Level or edge of signal
|
|
Condition
|
Analog: Rising, Falling, Window-in, Window-out
|
|
Pulse: Rising, Falling, Window-in, Window-out
|
|
Logic: Rising, Falling
|
|
Alarm output *1
|
4 channels, Output type: Open collector (pulled-up to 5 V by resistor 10 kΩ)
|
|
Pulse input function *1
|
Accumulating count mode
|
Accumulating the number of pulses from the start of measurement
Range: 50, 500, 5k, 50k, 500k, 5M, 50M, 500M counts/F.S.
|
|
Instant count mode
|
Counting the number of pulses per sampling interval
Range: 50, 500, 5k, 50k, 500k, 5M, 50M, 500M counts/F.S.
|
|
Rotation count (RPM) mode
|
Counting the number of pulses per second and then it is converted to RPM
Range: 50, 500, 5k, 50k, 500k, 5M, 50M, 500M rpm /F.S.
|
|
Max. input pulse rate
|
50k pulses/sec or 50k counts per sampling interval (16 bits counter is used)
|
|
Calculation function
|
Between channels
|
Addition, Subtraction, Multiplication and Division for analog input
|
|
Statistical
|
Select two calculations from Average, Peak, Max., Min., RMS
|
|
Search function
|
Search for analog signal levels, values of logic or pulse or alarm point in captured data
|
|
Interface to PC
|
Ethernet (10 BASE-T/100 BASE-TX), USB (Full speed)
|
|
Storage device
|

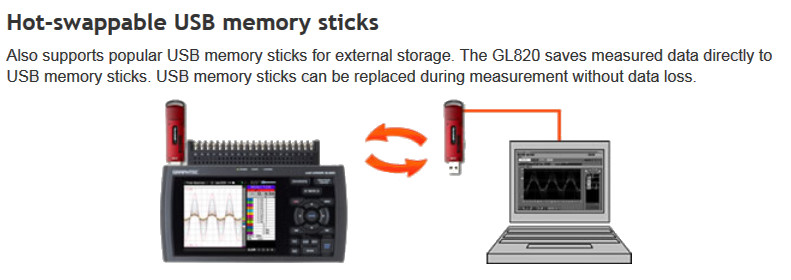

Built-in Flash memory (2 giga-bytes), USB memory device *2
|
|
Data saving function
|
Captured data
|
Direct saving of data into built-in Flash memory or USB memory device
|
|
Others
|
Setting conditions, Screen copy
|
|
Ring capturing mode
|
Function: ON/OFF, Number of capturing point: 1000 to 2000000 (size of the capture data will be limited to 1/3 of available memory when in Ring Mode)
|
|
USB memory device emulation
|
USB Memory emulation mode (Transfer or delete the file in built-in memory)
|
|
Engineering scale function
|
Set based on the reference point of the scaled output and input signal for each channel (Voltage measurement: four points are necessary to scale the output, Temperature measurement: two points are necessary to scale the output).
|
|
Display
|
Size
|
5.7 inch TFT color LCD (VGA: 640 x 480 dots)
|
|

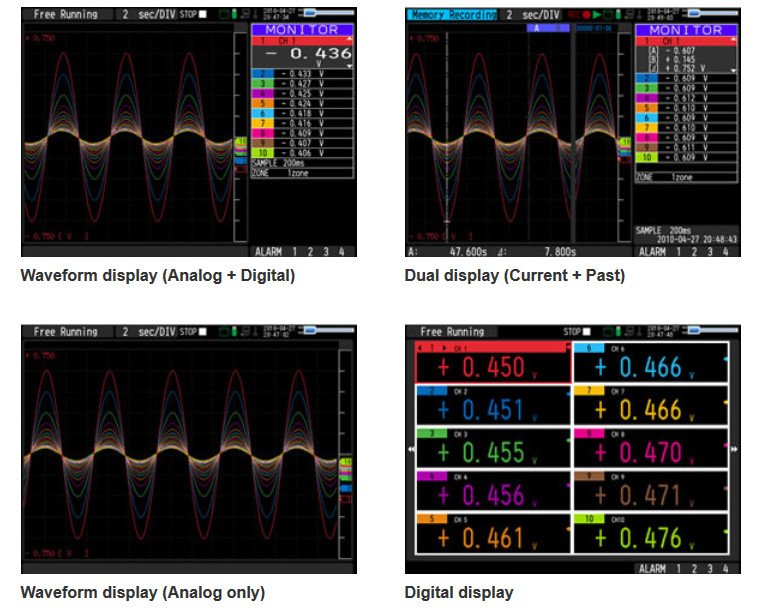

Formats
|
Waveform + Digital, Waveform only, Calculation + Digital, Expanded digital
|
|
Operating environment
|
0 °C to 45°C, 5 % to 85 % RH
(When operating with battery pack 0 °C to 40 °C, charging battery 15 °C to 35°C)
|
|
Power source
|
AC adapter (100 V to 240 V, 50/60 Hz)
DC power (8.5 V to 24 V DC, max. 26.4 V)*3, Battery pack*3
|
|
Power consumption
|
32VA or lower
(When operating with AC adapter, displaying LCD, charging battery pack)
|
|
External dimensions (WxDxH)
|
approx. 232 x 152 x 50 mm
|
|
Weight
|
approx. 900 g (Excluding AC adapter and battery pack)
|
Software specifications
|
Item
|
Description
|
|---|
|
Supported OS
|
Windows XP / Vista / 7 (32 bits and 64 bits edition)
|
|
Functions
|
Control GL820, Real-time data capture, Replay data, Data format conversion
|
|
GL820 setting control
|
Input settings, Memory settings, Alarm settings, Trigger settings
|
|
Controlled units
|
Up to 10 units or 500 channels
|
|
Captured data
|
Transfers data in real-time (in binary or CSV format), saved data in GL820 or the USB memory
|
|
Displayed information
|
Analog waveforms, Logic waveforms, Pulse waveforms, Digital values
|
|
Display modes
|
Y-T waveforms, Digital values, Report, X-Y graph (specified period of data, data reply only)
|
|
Warning functions
|
Sends E-mail to the specified address when the alarms occur
|
|
File format conversions
|
Converts the specified period data or all data to the CSV format (thinning function is available)
|
|
Report functions
|
Creates the daily or monthly report automatically (can also export directly to Excel)
|
Standard accessories
|
Item
|
Description
|
Quantity
|
|---|
|
AC adapter
|
100 V to 240 V AC, 50/60 Hz (with specified type of power cord)
|
1set
|
|
CD-ROM
|
User's manual (PDF format), Application software
|
1piece
|
|
Quick Start Guide
|
|
1copy
|
Analog input specifications
|
Item
|
Description
|
|---|
|

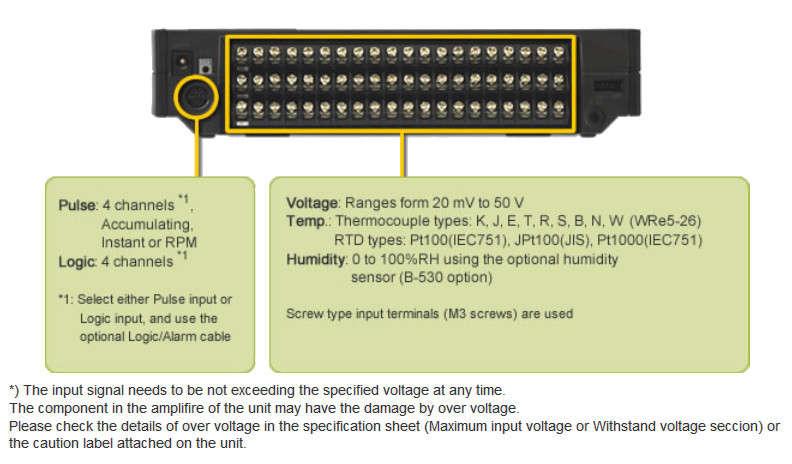

Type of input terminal
|
Screw terminal (M3 screw)
|
|
input method
|
Scans by the photo-MOS-relay, all channels isolated, balanced input
|
|
Measurement range
|
Voltage Temperature
|
20, 50, 100, 200, 500 mV, 1, 2, 5, 10, 20, 50 V, and 1-5 V /F.S.
Thermocouple: K, J, E, T, R, S, N, and W (WRe5-26)
|
|
Resistance Temperature Detectors (RTDs): Pt100, JPt100 (JIS), Pt1000 (IEC751)
|
|
Humidity
|
0 to 100%
(using humidity sensor (B-530 optional), power is supplied to only one sensor)
|
|
Filter
|
Off, 2, 5, 10, 20, 40 (moving average in selected number)
|
|
Measurement accuracy *4
|
Voltage
|
0.1% of F.S.
|
|
Temperature
|
Thermocouple
|
Measurement range
|
Measurement accuracy
|
|
R/S
|
0 °C ≦ TS ≦ 100 °C
100 °C ≦ TS ≦ 300 °C
R: 300 °C ≦ TS ≦ 1600 °C
S: 300 °C ≦ TS ≦ 1760 °C
|
±5.2 °C
±3.0 °C
±(0.05 % of reading +2.0 °C)
±(0.05 % of reading +2.0 °C)
|
|
B
|
400 °C ≦ TS ≦ 600 °C
600 °C ≦ TS ≦ 1820 °C
|
±3.5 °C
±(0.05% of reading +2.0 °C)
|
|
K
|
-200 °C ≦ TS ≦ -100 °C
-100 °C ≦ TS ≦ 1370 °C
|
±(0.05 % of reading +2.0 °C)
±(0.05 % of reading +1.0 °C)
|
|
E
|
-200 °C ≦ TS ≦ -100 °C
-100 °C ≦ TS ≦ 800 °C
|
±(0.05 % of reading +2.0 °C)
±(0.05 % of reading +1.0 °C)
|
|
T
|
-200 °C ≦ TS ≦ -100 °C
-100 °C ≦ TS ≦ 400 °C
|
±(0.1 % of reading +1.5 °C)
±(0.1 % of reading +0.5 °C)
|
|
J
|
-200 °C ≦ TS ≦ -100 °C
-100 °C ≦ TS ≦ 100 °C
100 °C ≦ TS ≦ 1100 °C
|
±2.7 °C
±1.7 °C
±(0.05 % of reading +1.0 °C)
|
|
N
|
0 °C ≦ TS ≦ 1300 °C
|
±(0.1 % of reading +1.0 °C)
|
|
W
|
0 °C ≦ TS ≦ 2000 °C
|
±(0.1 % of reading +1.5 °C)
|
|
|
Reference Junction Compensation (R.J.C.): ±0.5 °C
|
|
RTD
|
Measurement range
|
Measurement accuracy
|
|---|
|
Pt100
|
-200 °C to 850 °C (FS=1050 °C)
|
±1.0 °C
|
|
JPt100
|
-200 °C to 500 °C (FS=700 °C)
|
±0.8 °C
|
|
Pt1000
|
-200 °C to 500 °C (FS=700 °C)
|
±0.8 °C
|
|
A/D Converter
|
ΣΔtype, 16 bits (effective resolution: 1/40000 of measuring full range)
|
|
Maximum input voltage
|
Between +/- terminal
|
60 Vp-p
|
|
Between channels
|
60 Vp-p
|
|
Between channels / GND
|
60 Vp-p
|
|
Withstand voltage
|
Between channels
|
350 Vp-p (1minute)
|
|
Between channels(-) / GND
|
350 Vp-p (1minute)
|
*1 Logic alarm cable (B-513) option is required.
Input signal of External sampling, Logic, Pulse; Maximum voltage: 24 V, Threshold: approx. 2.5 V, Hysteresis: approx. 0.5 V
*2 Size of the USB memory device is unlimited. Maximum file size is limited to 2 GB
*3 DC drive cable (B-514) or battery pack (B-517) option is required.
*4 Subject to the following conditions;
-
-
Room Temperature is 23 °C±5 °C
-
When 30 minutes or more have elapsed after power was turned on.
-
Filter is set to 10
-
Sampling rate is set to 1s with 20 channels.
-
GND terminal is connected to ground.
|
