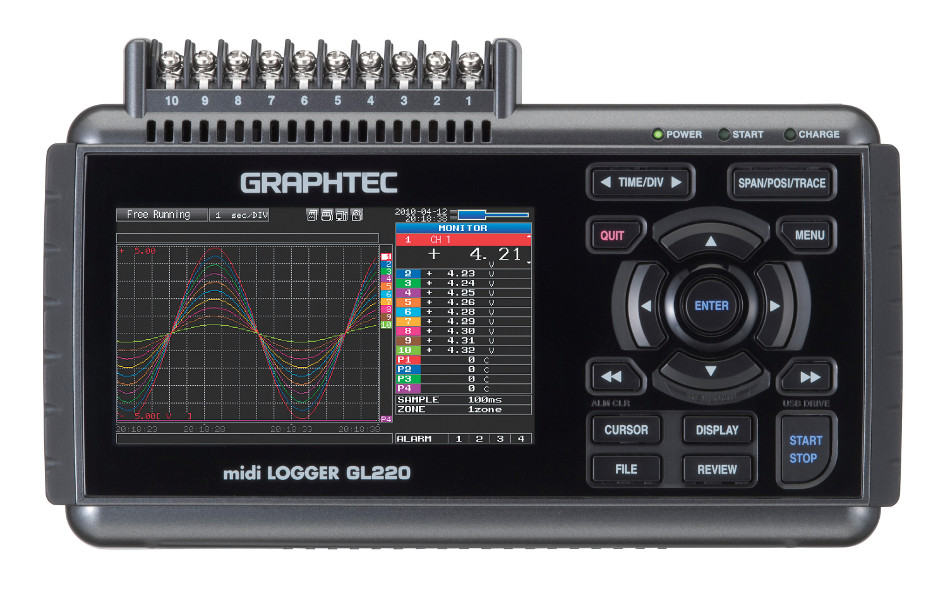

Graphtec GL220 10-Channel Handy-Type Midi Logger
|
Item Number: GL220
Manufacturer: Graphtec Corp
Part Number: GL220
* Whole number only
|
|
Graphtec GL220 10-Channel Handy-Type Midi Logger
Handy-type Logger with huge 2GB Flash Memory
Features
- 10 isolated channels, each with multifunction input
- Maximum sampling rate of up to 10ms
- Large easy-to-read 4.3-inch wide TFT color LCD
- Built-in 2GB Flash Memory
- Easy operation and device setup
- Easy application software
- Can be used with 3 types of power source
- Alarm output function
- Calculation function
Technical Specifications
GL220 main unit specifications
|
Item
|
Description
|
|---|
|
Number of analog input channels
|
10 ch
|
|
External input/output
|
Input *1
|
Trigger or Sampling input 1 ch, Logic or Pulse input 4 ch
|
|
Output *1
|
Alarm output 4 ch
|
|
Sampling interval
|
10 ms to 1 h (in 10ms to 50ms, voltage only and limited channel), External
|
|
Time scale
|
1 sec to 24 hour /division
|
|
Trigger function
|
Action
|
Start or stop capturing data by the trigger
|
|
Source
|
Start: Off, Input signal, Alarm, External *1 , Clock, Week or Time
|
|
Stop: Off, Input signal, Alarm, External *1 , Clock, Week or Time
|
|
Combination
|
OR or AND condition at the level of signal or edge of signal
|
|
Condition
|
Analog: Rising, Falling, Window-in, Window-out
|
|
Pulse: Rising, Falling, Window-in, Window-out
|
|
Logic: Rising or Falling
|
|
Alarm function
|
Detecting method
|
Level or edge of signal
|
|
Condition
|
Analog: Rising, Falling, Window-in, Window-out
|
|
Pulse: Rising, Falling, Window-in, Window-out
|
|
Logic: Rising, Falling
|
|
Alarm output *1
|
4 channels, Output type: Open collector (pull-up resistor 10 kΩ)
|
|
Pulse input function *1
|
Accumulating count mode
|
Accumulating the number of pulses from the start of measurement
Range: 50, 500, 5 k, 50 k, 500 k, 5 M, 50 M, 500 M counts/F.S.
|
|
Instant count mode
|
Counting the number of pulses per sampling interval
Range: 50, 500, 5 k, 50 k, 500 k, 5 M, 50 M, 500 M counts/F.S.
|
|
Rotation count (RPM) mode
|
Counting the number of pulses per second and then it is converted to RPM
Range: 50 rpm, 500 rpm, 5 krpm, 50 krpm, 500 krpm, 5 Mrpm, 50 Mrpm, 500 Mrpm /F.S.
|
|
Max. input pulse rate
|
50 k pulses/sec or 50k counts per sampling interval, 16 bits counter is used
|
|
Calculation function
|
Between channels
|
Addition, Subtraction, Multiplication and Division for analog input
|
|
Statistical
|
Select two calculations from Average, Peak, Max., Min., RMS
|
|
Search function
|
Search for analog signal levels, values of logic or pulse or alarm point in captured data
|
|
Interface to PC
|
USB (Full speed)
|
|
Storage device
|

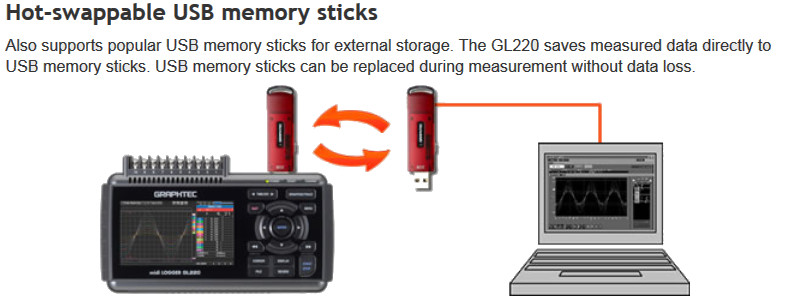

Built-in Flash memory (2 giga-bytes), USB memory device *2
|
|
Data saving function
|
Captured data
|
Direct saving of data into built-in Flash memory or USB memory device
|
|
Others
|
Setting conditions, Screen copy
|
|
Ring capturing mode
|
Function: ON/OFF, Number of capturing point: 1,000 to 2,000,000
(Size of the capture data will be limited to 1/3 of available memory)
|
|
USB memory device emulation
|
USB Memory emulation mode (Transfer or delete the file in built-in memory)
|
|
Engineering scale function
|
Set based on the reference point of the scaled output and input signal for each channel (Voltage measurement: four points are necessary to scale the output, Temperature measurement: two points are necessary to scale the output).
|
|
Display
|
Size
|
4.3 inch TFT color LCD (WQVGA: 480 x 272 dots)
|
|
Formats
|

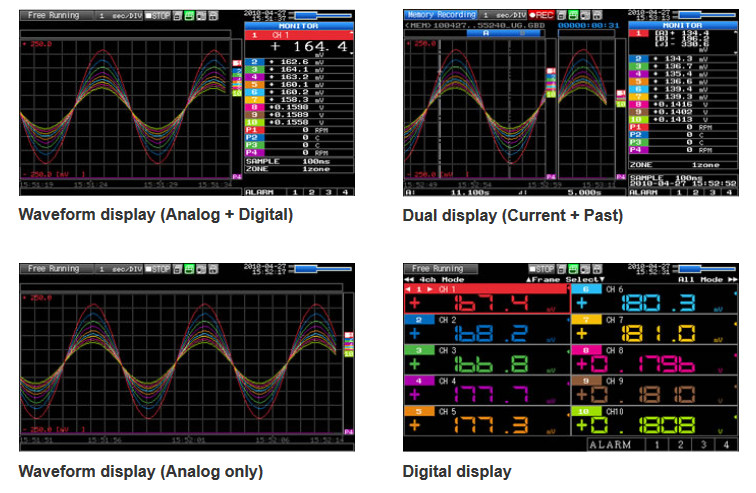

Waveform + Digital, Waveform only, Calculation + Digital, Expanded digital
|
|
Operating environment
|
0 to 45 °C, 5 to 85 %RH
(When operating with battery pack 0 to 40 °C, charging battery 15 to 35 °C)
|
|
Power source
|
AC adapter (100 to 240 V, 50/60 Hz), DC power (8.5 to 24 V DC, max. 26.4 V) *3 ,
Battery pack *3
|
|
Power consumption
|
29 VA or lower (when operating with AC adapter, displaying LCD)
|
|
External dimensions (W×D×H)
|
approx. 194 x 117 x 42 mm
|
|
Weight
|
approx. 520 g (Excluding AC adapter and battery pack)
|
*1 Logic alarm cable (B-513) option is required.
Input signal of External sampling, Logic, Pulse; Maximum voltage: 24 V, Threshold: approx. 2.5 V, Hysteresis: approx. 0.5 V.
*2 Size of the USB memory device is unlimited. Maximum file size is limited to 2GB.
*3 DC drive cable (B-514) or battery pack (B-517) option is required.
Analog input specifications
|
Item
|
Description
|
|---|
|

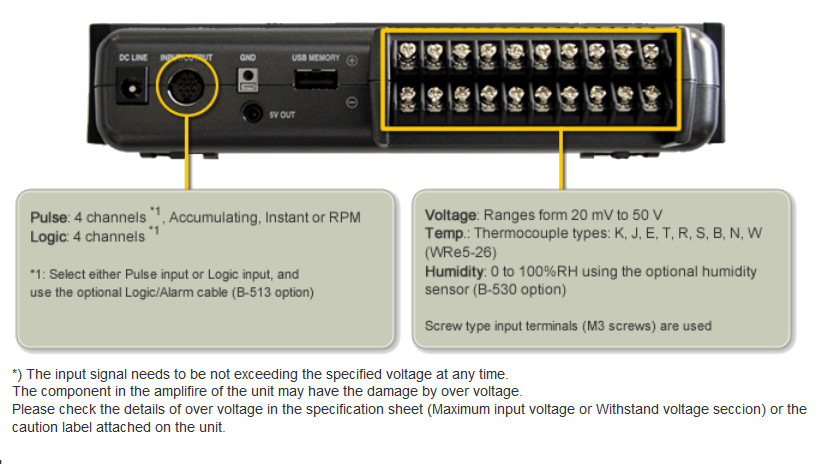

Type of input terminal
|
Screw terminal (M3 screw)
|
|
Input method
|
Scans by the photo-MOS-relay, all channels isolated, balanced input
|
|
Measurement range
|
Voltage
|
20, 50, 100, 200, 500 mV, 1, 2, 5, 10, 20, 50 V, and 1-5 V /F.S.
|
|
Temperature
|
Thermocouple: K, J, E, T, R, S, B, N, and W (WRe5-26)
|
|
Humidity
|
0 to 100% (using humidity sensor (B-530 optional), power is supplied to only one sensor)
|
|
Filter
|
Off, 2, 5, 10, 20, 40 (moving average in selected number)
|
|
Measurement accuracy *4
|
Voltage
|
0.1 % of F.S.
|
|
Temperature
|
Thermocouple
|
Measurement range
|
Measurement Accuracy
|
|
R/S
|
0 °C ≤ TS ≤ 100 °C
100 °C < TS ≤ 300 °C
R: 300 °C < TS ≤ 1600 °C
S: 300 °C < TS ≤ 1760 °C
|
± 5.2 °C
± 3.0 °C
± (0.05 % of reading + 2.0 °C)
± (0.05 % of reading + 2.0 °C)
|
|
B
|
400 °C ≤ TS ≤ 600 °C
600 °C < TS ≤ 1820 °C
|
± 3.5 °C
± (0.05 % of reading + 2.0 °C)
|
|
K
|
-200 °C ≤ TS ≤ -100 °C
-100 °C < TS ≤ 1370 °C
|
± (0.05 % of reading + 2.0 °C)
± (0.05 % of reading + 1.0 °C)
|
|
E
|
-200 °C ≤ TS ≤ -100 °C
-100 °C < TS ≤ 800 °C
|
± (0.05 % of reading + 2.0 °C)
± (0.05 % of reading + 1.0 °C)
|
|
T
|
-200 °C ≤ TS ≤ -100 °C
-100 °C < TS ≤ 400 °C
|
± (0.1 % of reading + 1.5 °C)
± (0.1 % of reading + 0.5 °C)
|
|
J
|
-200 °C ≤ TS ≤ -100 °C
-100 °C < TS ≤ 100 °C
100 °C < TS ≤ 1100 °C
|
± 2.7 °C
± 1.7 °C
± (0.05 % of reading + 1.0 °C)
|
|
N
|
0 °C ≤ TS ≤ 1300 °C
|
± (0.1 % of reading + 1.0 °C)
|
|
W
|
0 °C ≤ TS ≤ 2000 °C
|
± (0.1 % of reading + 1.5 °C)
|
|
|
Reference Junction Compensation (R.J.C.): ±0.5 °C
|
|
A/D converter
|
ΣΔ type, 16 bits (effective resolution: 1/40,000 of measuring full range)
|
|
Maximum input voltage
|
Between + / - terminal
|
60 V p-p
|
|
Between channels
|
60 V p-p
|
|
Between channel / GND
|
60 V p-p
|
|
Withstand voltage
|
Between channels
|
350 V p-p (1 minute)
|
|
Between channel(-)/ GND
|
350 V p-p (1 minute)
|
*4 Subject to the following conditions;
• Room Temperature is 23°C ±5°C.
• When 30 minute or more have elapsed after power was turned on.
• Filter is set to 10.
• Sampling rate is set to 1s with 10 channels.
• GND terminal is connected to the ground.
Software specifications
|
Item
|
Description
|
|---|
|
Supported OS
|
Windows XP / Vista / 7 (32 bits and 64 bits edition)
|
|
Functions
|
Control GL220, Real-time data capture, Replay data, Data format conversion
|
|
GL220 settings control
|
Input settings, Memory settings, Alarm settings, Trigger settings
|
|
Captured data
|
Transfers data in real-time (in binary or CSV format), saved data in GL220 or the USB memory
|
|
Displayed information
|
Analog waveforms, Logic waveforms, Pulse waveforms, Digital values
|
|
Display modes
|
Y-T waveforms, Digital values, Report, X-Y graph (specified period of data, data replay only)
|
|
Warning functions
|
Sends E-mail to the specified address when the alarm occurred
|
|
File format conversions
|
Converts the specified period data or all data to the CSV format (thinning function is available)
|
|
Report functions
|
Creates a daily or monthly report automatically (can also export directly to Excel)
|
|
Displayed Max. Min.
|
Displays the maximum, minimum and current value in measurement
|
Standard accessories
|
Item
|
Description
|
Quantity
|
|---|
|
AC adapter
|
100 to 240 V AC, 50 / 60 Hz (with specified type of power cord)
|
1 set
|
|
CD-ROM
|
User’s manual (PDF format), Application software
|
1 piece
|
|
Quick Start Guide
|
|
1 copy
|
|
