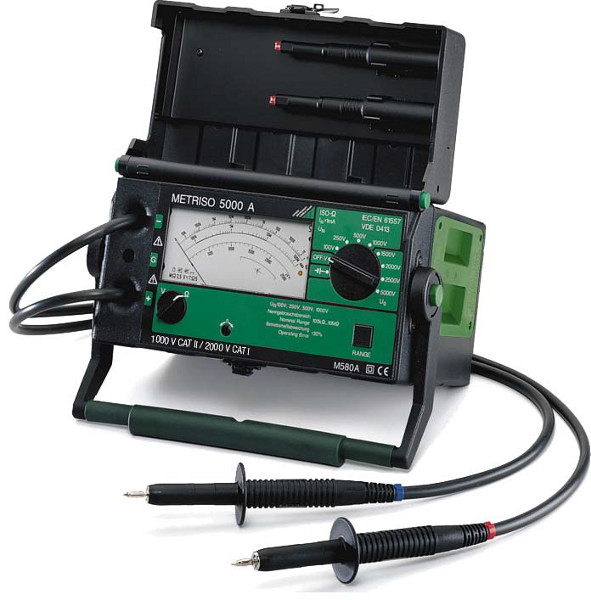

Gossen Metrawatt METRISO 5000 A/AK
Test Voltages to 5000 V
The Metriso 5000A is suited for the non-destructive measurement of insulation resistance in electrical systems, at machines and transformers and in cables, as well as within the electrical equipment of, for example, locomotives, tram systems and ocean going vessels, with eight selectable test voltages up to 5 kV.
Voltage Measurement to 2000V
With the voltage measuring ranges, test objects can be checked for the absence of voltage in networks of up to 2 kV. This is important for insulation resistance measurement, because extraneous voltages distort measurement results.
Discharge of Capacitive Devices Under Test
Capacitive devices under test such as cables and coils, which might be discharged to test voltage, are discharged by the measuring instrument. The drop in voltage can be observed at the needle gauge.
Measurements per EN61557 Parts 1 and 2 (VDE0413)
Measuring current is equal to 1 mA at a test voltage of 100 V, 250 V, 500 V and 1000 V.
Measurement Cables with Heavy-Duty Insulation
The measurement cables with heavy-duty insulation are permanently connected for safety and technical reasons. Possible danger caused by the unintentional removal of cables is thus avoided, for example when charging occurs due to capacitive test objects.
Needle Gauge with LEDs
Three LEDs arranged within the needle gauge make reading easier. The lamp lights up which is located next to the scale, which is assigned to the selected measuring range. During the measurement sequence, the green LED indicates whether or not the battery charge is sufficient for the measurement.
Accessories:

Features:
-
Broad measuring range from 10 kOhm to 1 TOhm
-
Easy to read logarithmic display
- Test voltages: 100 V, 250 V, 500 V, 1000 V, 1500 V, 2000 V, 2500 V, 5000 V
- Measurement to 2000 V in accordance with DIN VDE 0413
- Measuring range: 100 kOhm to 100 MOhm (1000 V)
- Voltage measurement to 2000 VAC/DC
- Guard terminal eliminates surface current
-
5 m extension cable as accessory equipment
-
Power supply with batteries or hand crank generator (optional)

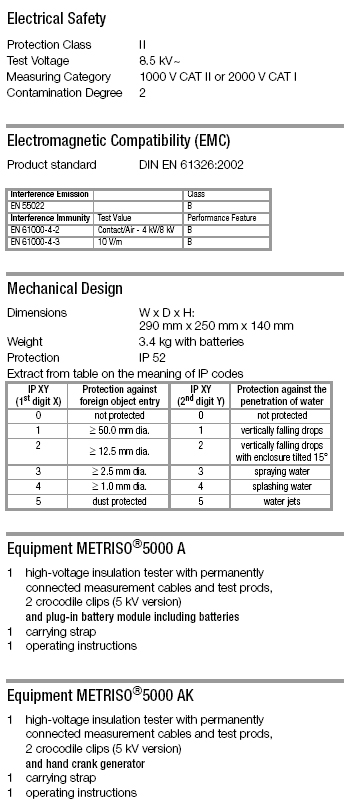

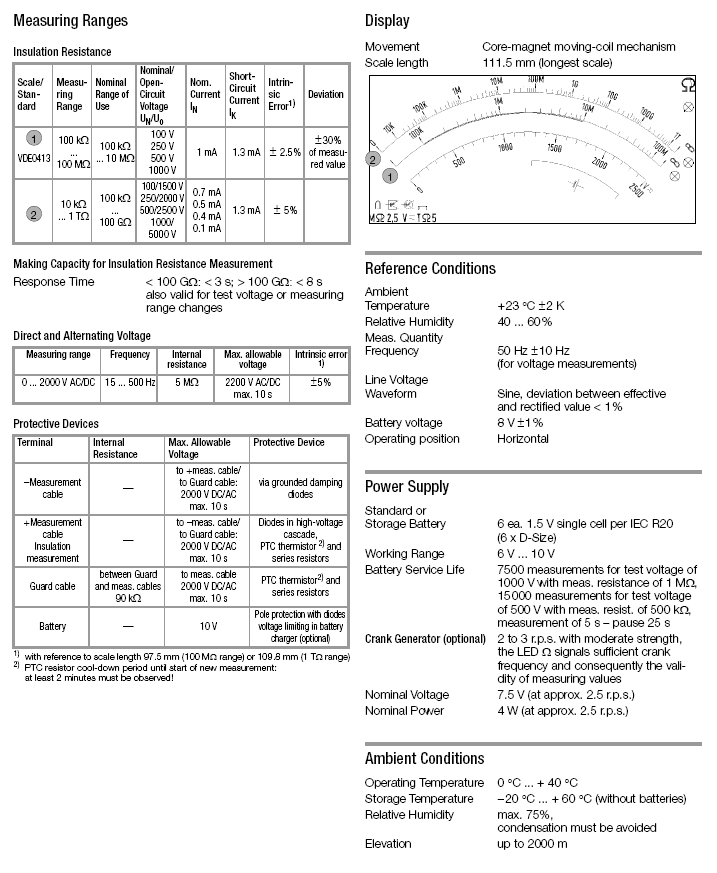

Specifications:
|
