GMC MetraHIT 27AS Insulation Tester, Milliohmmeter, Multimeter and Data Logger
|
Item Number: METRAHIT 27AS
Manufacturer: GMC Instruments (Gossen Metrawatt)
Part Number: M227C
Product Options
* denotes required field
NIST Calibration - Ohm Meter*
* Whole number only
|
|
GMC MetraHIT 27AS Insulation Tester, Milliohmmeter, Multimeter and Data Logger
The MetraHit 27I is a milliohmmeter, multimeter and data logger all in one, with insulation testing capabilities, up through the gigaohm range. The Metrahit 27AS is an avionics test kit that includes the METRAHIT 27I. Both the METRAHIT 27I and the 27AS can be used in a broad range of applications, especially in avionics technology, field service, and repair.
Features:
- Insulation resistance measurement 30 MOhm to 3 GOhm with adjustable test voltage of 50, 100, 250, or 500 V d.c.
- Milliohmmeter with 1 A measuring current and 200 mA measuring current
- Kelvin connection (4-wire measurement)
- Resistance measurement from 300 Ohm to 30 MOhm
- Voltage measurement from 3 to 600 V DC and 3 to 600 V AC with ±30.000 digits
- Frequency measurement from 300 Hz to 3 kHz
- Memory for up to 1,200 measured values
- Continuity and diode testing
- Overload protection
- DAkkS calibration certificate (Accredited per ISO/IEC 17025)
- LCD display with backlight
- Rechargeable batteries
Applications:
The METRAHIT 27I is ideal for generic low-resistance measurements. It is also ideal for specialized applications, such as measuring low value contact resistances at welding seams, and riveted joints. The METRAHIT 27AS is ideal for voltage, insulation, milliohm, and temperature measurement in airplane and helicopter electrical applications. It's also ideal for evaluating the outer skins of aircraft for lightning protection and wick tests.

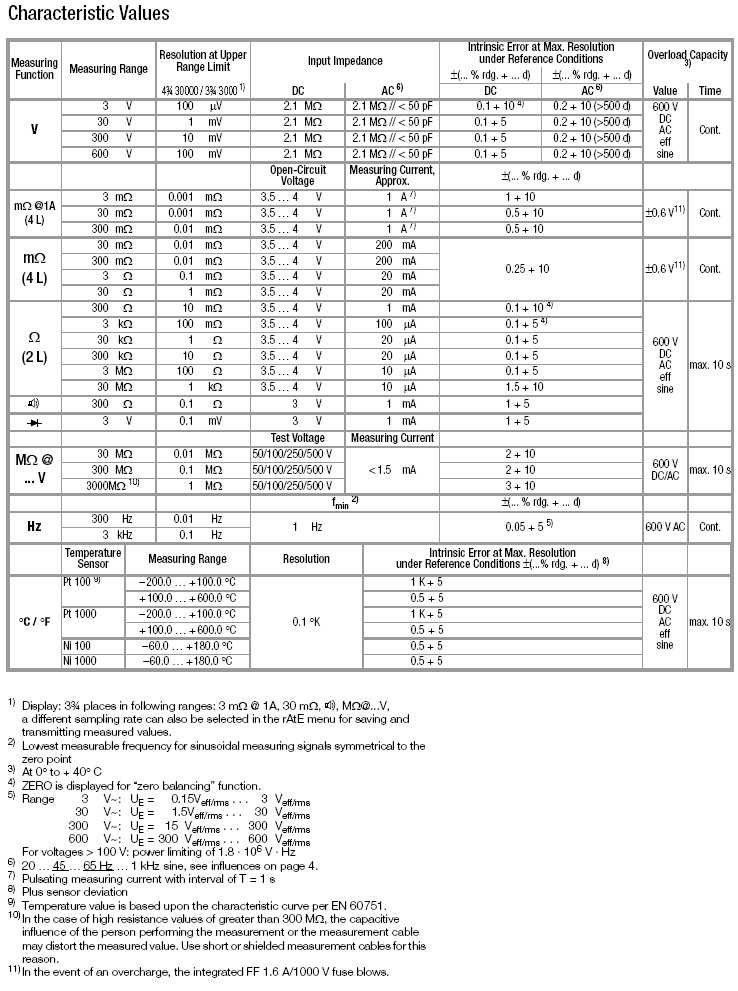

Technical Specifications
| Type |
|
27I |
27AS
Avionics Set |
| Article Number |
|
M227B |
M227C |
| Standard Equipment |
|
|
|
| Standard Equipment |
|
27I |
27I |
| 3x size AA rechargeable NiMH batteries |
|
• |
• |
| KS17S measurement cable set |
|
• |
• |
| Operating instructions |
|
• |
• |
| Short-form operating instructions |
|
• |
• |
| GH18 protective rubber cover with carrying strap |
|
• |
• |
| DKD calibration certificate |
|
• |
• |
| NA Hit 2x power adapter |
|
• |
• |
| KC4 Kelvin-Clip (=2 pieces) |
|
• |
• |
| KC27 Kelvin probe (=2 pieces) |
|
|
• |
| HC30 hard case |
|
|
• |
BD-Pack (including BD232, cable with
METRAwin10) and METRAwin90-2 software |
|
|
• |

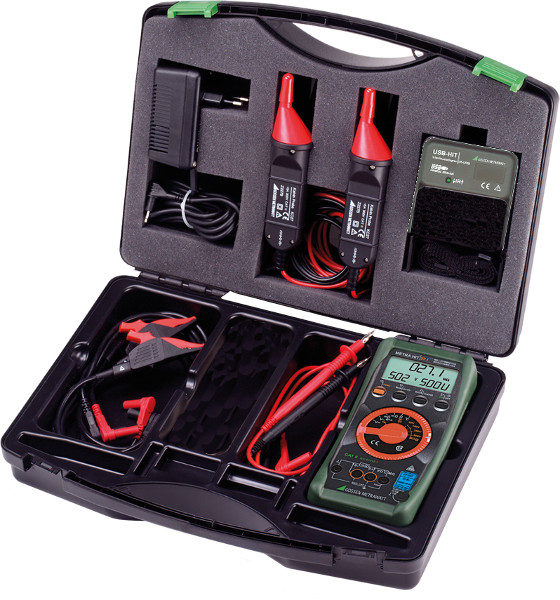

Includes
- MetraHit 27I
- Protective rubber cover with carrying strap
- 3x AA NiMH batteries
- Battery charger
- KS17-S measurement cable set
- Set of Kelvin clips KC4 (1 set = 2 each)
- Set of Kelvin probes KC27 (1 set = 2 each)
- HC30 hard case
- Quick guide operating instructions
- Operating instructions
- USB-HIT adapter, including USB cable and MetraWin 10 system software
- DAkkS calibration certificate (Accredited per ISO/IEC 17025)
|
GMC Instruments METRAHIT 27M is a rugged, reliable, and compact milliohmmeter, multimeter, and temperature measuring instrument all in one. It is very well suited for on-site service, as well as for a wide variety of laboratory tasks.
|
The GMC MetraHIT 27I incorporates a multimeter, insualtion tester, milliohmmeter and data logger into one compact instrument.
|
