GMC Instruments PROFITEST 204+ Multifunction Machinery Tester
|
Item Number: PROFITEST 204+
Manufacturer: GMC Instruments (Gossen Metrawatt)
Part Number: M360A
* Whole number only
|
|

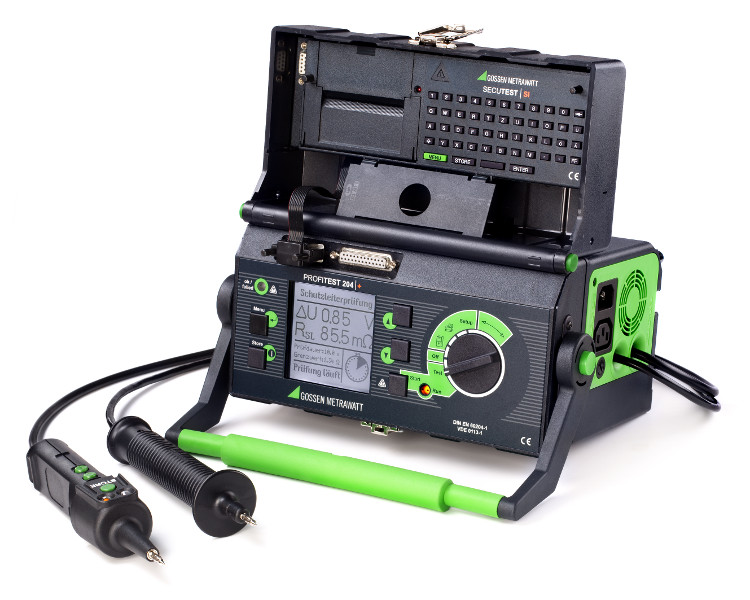

GMC Instruments PROFITEST 204+ Multifunction Machinery Tester
The Profitest 204+ is a portable measuring system ideally suited for electrical safety testing of machinery and related electrical equipment in accordance with IEC 60204: Safety of machinery - Electrical equipment of machines. The PROFITEST 204+ has been designed for quick, safe testing, and stores measured values that can be communicated to a PC.
Features
- Illuminated display
- Two measurement cables (4-wire connection)
- Remote control for efficient use
- Limit value adjustment
- Memory and report generating functions
- Data interface for PC and printer
- Optional keypad for quick, on-site alphanumeric data entry and reports printing
- Protective Conductor Test with test current 10A
- Can be retrofitted for high-voltage testing
Applications
The Profitest 204+ has been designed for safe testing of electrical machinery equipment, and systems in accordance with IEC 60204. Tests include continuity, insulation resistance, and residual voltage. In addition, the Profitest 204+ can be used for voltage measurements, leakage current tests, and frequency measurements. The Profitest 204+ can be used on an assembly line, in an R&D role, or as part of a quality assurance program.

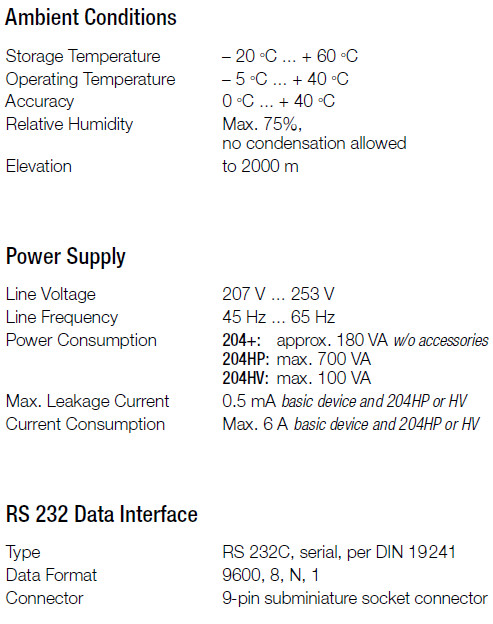

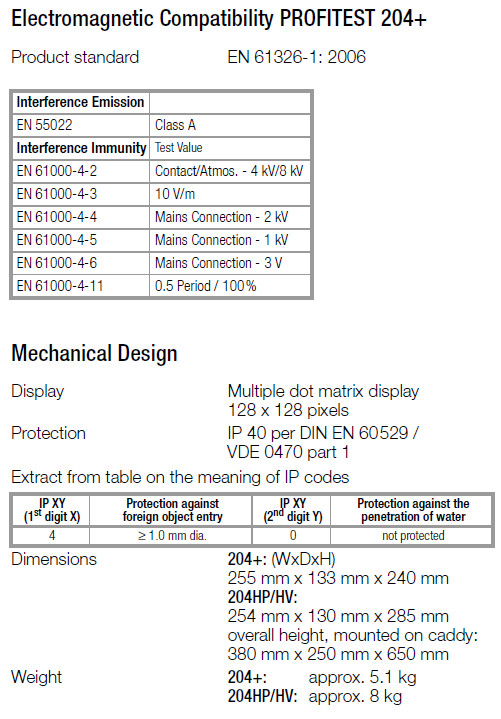

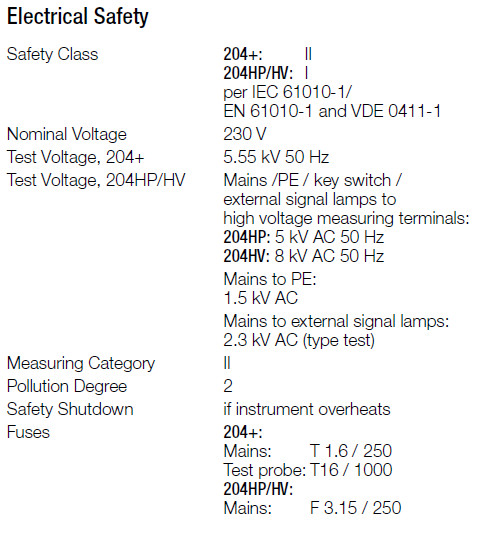

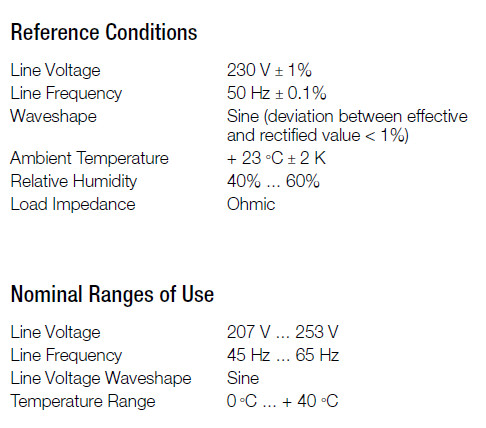

Technical Specifications
Includes
- Test probe with integrated remote control
- Test probe with integrated fuse and permanently attached measurement cable
- Cable lug
- Power cable
- CD ROM with download program for report forms
- Factory calibration certificate
- RS232 cable
- Operating instructions
|
