GMC Instruments METRAPORT 40S Digital Multimeter

Our Price: $628.00

Item Number: METRAport 40S

Manufacturer: GMC Instruments (Gossen Metrawatt)

Part Number: M234D

Product Options

Accessory Options

Flex current sensor, 30/300/3000 A AC, 100/10/1 mV/A, 1%, 10 Hz ... 20 kHz, sensor length 61 cm, with batteries (+ $607.00)

Clip-on current sensor 10mA...100A~, 1mV/10mA~; 2% (+ $153.00)

Clip-on current transformer 60 / 600A DC, 40 / 400 A AC (+ $280.00)

Temperature sensor Pt100 for surface and immersion measurements, -40...+600 °C (+ $117.00)

Pipe-oil-temperature probe, Pt1000, Kl. B, 50°C...500°C, 3 x 810 mm (+ $152.00)

Surface temperature sensor, (T90 = 2 s), thermocouple type K, -50 ...+400 °C (+ $152.00)

Carrying bag (+ $69.00)

Quantity:

Email this page to a friend

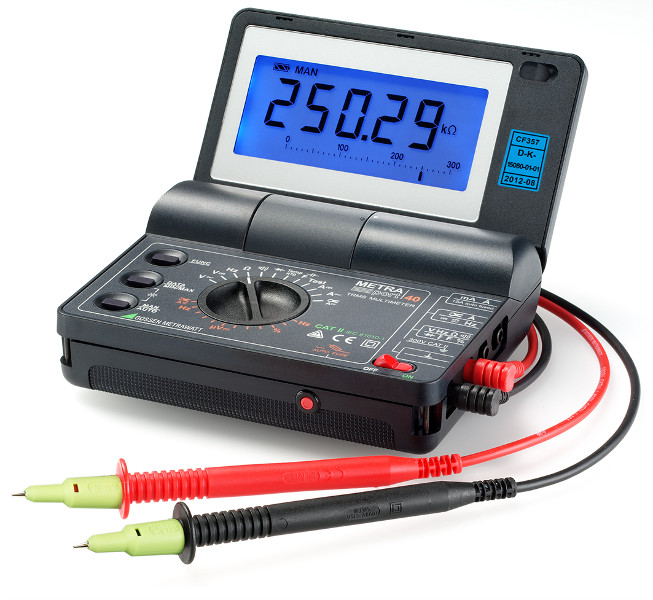

GMC Instruments METRAPORT 40S Digital Multimeter

The MetraPort 40S is a universal digital multimeter that is ideal for use in general electrical engineering, electronics and automotive service. In addition to basic multimeter functions, the MetraPort 40S has temperature, capacitance, frequency and RPM measurement capabilities. The MetraPort 40S has a unique hinged display with an adjustable reading angle, and a neck strap for hands free operation. When the meter display is folded closed, the meter is switched off automatically, and the display and control panel are protected against damage.

Features

Precision multimeter (V, A, , F, Hz, %, °C / °F) 4¾-place
TRMS measurement for V AC and I AC to 10KHz
DC measurement of 10nA to 10A via a single socket and a resettable fuse (auto-fuse), overload and blown fuse indicators
Current measurement with current clamps:
Temperature measurement with automatic Pt sensor recognition
Temperature measurement with type K thermocouple
Capacitance and diode measurement
Frequency measurement via V AC or I AC to 10KHz
Frequency and keying ratio measurement at 2 to 5V signals up to 1MHz
RPM Measurement with Inductive Sensor (accessory)
Automatic and manual measuring range selection
Large backlit digital display with additional analog scale
Measured value storage and min/max recording
DAkkS certificate (Accredited per ISO/IEC 17025)

Applications

The MetraPort 40S digital multimeter is very well suited for universal use in general electrical engineering, electronics applications and for automotive service.

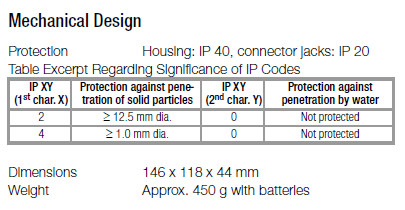

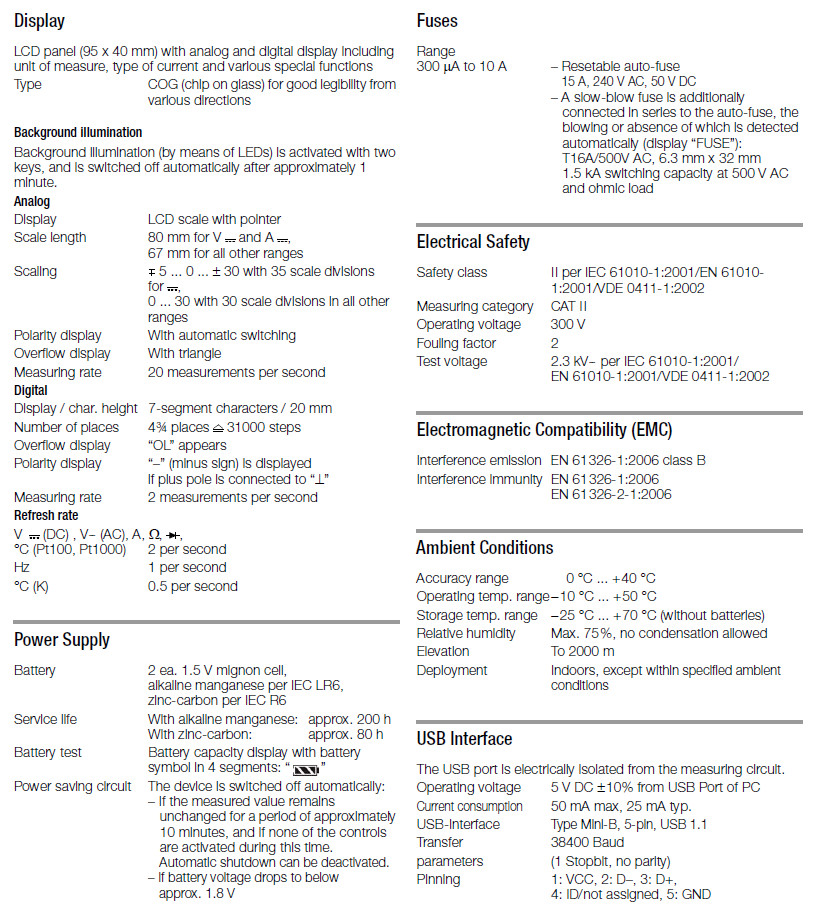

Technical Specifications

Includes

MetraPort 40S
2x batteries
KS17-2 safety cable set
Carrying strap
Quick guide operating instructions
CD-ROM including operation instructions
DAkkS certificate (Accredited per ISO/IEC 17025)

GMC Instruments METRAPORT 40S Data Sheet
