GMC Instruments MetraMachine 204/2.5 Electrical Equiment and Machine Tester

Our Price: $4,210.00

Item Number: MetraMachine 204/2.5+/GB

Manufacturer: GMC Instruments (Gossen Metrawatt)

Part Number: M504H

Product Options

Accessory Options

Interface cable RS232C, 2 m, (included in 1-Ch.Pack, 4-Ch.Pack and Z3231) (+ $41.00)

Signal module for high voltage tests (+ $188.00)

Attachable lug (+ $35.00)

Extension lead 12 m, fused (+ $64.00)

Caddy for test set, consisting of PROFITEST 204, 204HP, cover (+ $286.00)

Barrier for HV-tests (+ $755.00)

Pack of 10 chart rolls for PSI-Module (+ $76.00)

Pack of 10 ribbon cassettes for PSI-Module (+ $227.00)

Case for MINITEST MASTER, PRO and BASE (+ $167.00)

Quantity:

Email this page to a friend

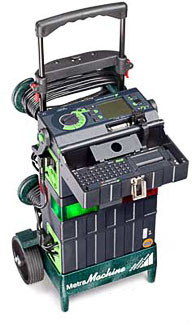

GMC Instruments MetraMachine 204/2.5 Electrical Equiment and Machine Tester with optional caddy

GMC Instruments MetraMachine 204/2.5 Electrical Equiment and Machine Tester

The MetraMachine 204 is a portable measuring system ideally suited for electrical safety testing of machinery in accordance with NFPA 79: Electrical Standard for Industrial Machinery, and IEC 60204: Safety of machinery - Electrical equipment of machines. The MetraMachine is a combination of the Profitest 204+ and a Profitest 204HP high voltage test module. The MetraMachine 204 has been designed for quick, safe testing, and stores measured values that can be communicated to a PC.

Features

Illuminated display
Two measurement cables (4-wire connection)
Remote control for efficient use
Limit value adjustment
Convenient memory and report generating functions need more explanation
Data interface for PC and printer
Optional keypad for quick, on-site alphanumeric data entry and reports printing
Protective Conductor Test with test current 10A

Expanded Features for Profitest 204HP-2.5kV

Voltage test per NFPA 79 and IEC 60204
Test power: 500VA

Applications

The MetraMachine 204 has been designed for quick and safe testing of electrical and electronic machinery equipment/systems in accordance with NFPA 79 and IEC 60204. Tests include continuity, insulation resistance, and residual voltage testing. In addition, the MetraMachine 204 can be used for voltage measurements, leakage current tests, and frequency measurements. The MetraMachine 204 can be used on an assembly line, in an R&D role, or as part of a quality assurance program.

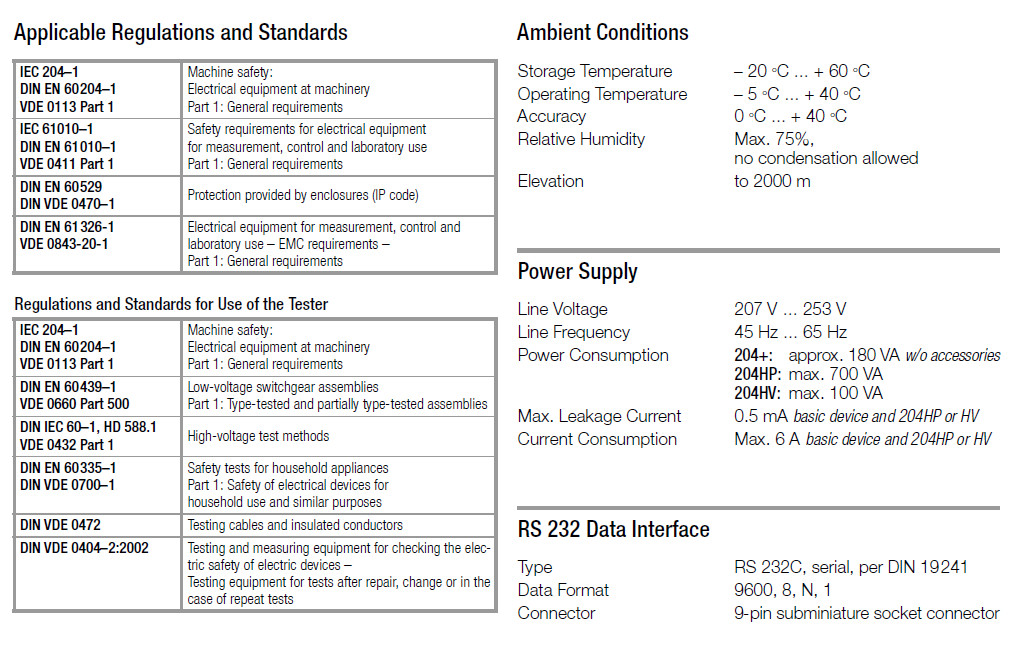

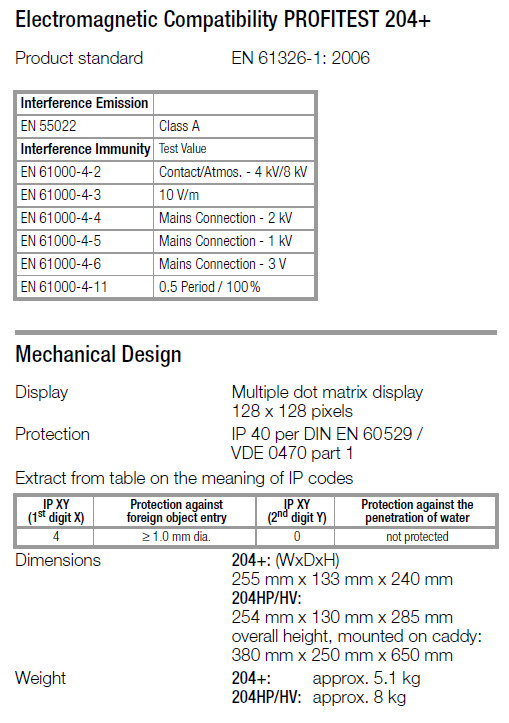

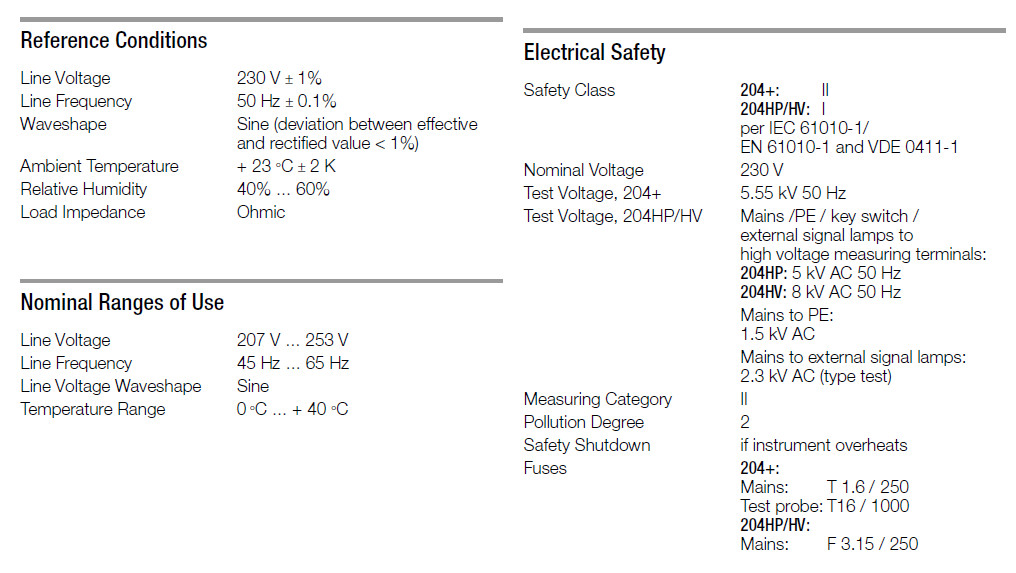

Technical Specifications

Includes

MetraMachine 204
Test probe with integrated remote control
Test probe with integrated fuse and permanently attached measurement cable
Cable lug
Power cable
CD ROM with download program for report forms
Factory calibration certificate
RS232 cable
Operating instructions
Caddy 204 trolley
Signal 204 indicator lamp
Leadex 204 measurement extension cable

GMC Instruments MetraMachine 204 Data Sheet
