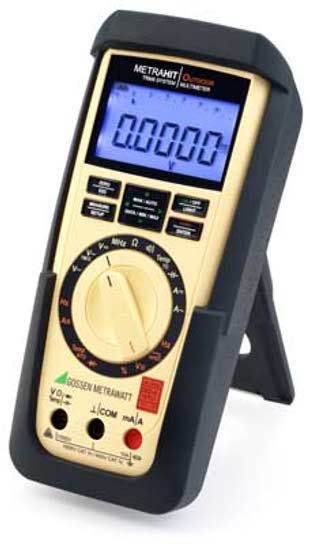

GMC Instruments METRAHIT OUTDOOR TRMS SYSTEM Multimeter
|
Item Number: METRAHIT OUTDOOR
Manufacturer: GMC Instruments (Gossen Metrawatt)
Part Number: M240O
* Whole number only
|
|
GMC Instruments METRAHIT OUTDOOR TRMS SYSTEM Multimeter
The OUTDOOR multimeter has been specially designed and manufactured to meet the challenges faced by engineers and technicians in adverse environments. Its extremely rugged, impact-resistant, water-proof and dust-proof, and is resistant to extreme temperatures.
Technology and scope of functions are the same as with the METRAHIt X-TRA.
Features:
-
Special rugged design with shock and impact resistant housing, and additional rubber holster
-
Special "sand" color
-
Dust-proof: IP 6x
-
Water jets: IP x5
-
Patented, sealed blocking sockets
-
Resolution: ±12,000 digits, 4½-place
-
3 connector jacks with patented automatic blocking sockets (ABS)
-
Voltage measurement with a basic accuracy of ±0.05% (V DC)
-
Auto-range current measurement from 100 μA (resolution: 10 nA) to 10 A (16A) via a single connector jack and a single fuse
-
Large, light-blue illuminated display with extra large characters (15 mm) and an analog bar graph for dynamic processes
-
Separate battery and fuse compartments
-
IP 52 protection against dust and water
-
Measuring categories: 1000V CAT III and 600V CAT IV
-
23 Multimeter Functions
-
Voltage ACTRMS, voltage AC+DC TRMS,voltage DC, frequency (Hz, MHz), keying ratio, resistance, diode test, continuity test, capacitance, current ACTRMS,current AC+DC TRMS, temperature with Pt 100/1000 sensors and type K thermocouples
-
Additional filter function and voltage measurement with reduced input impedance for limiting interference, for example when performing measurements at frequency converters
-
540 kB data memory (for 15.400 measuring values) as data logger for long-term measurements
-
Power pack connector socket for operation without batteries
-
Infrared interface for communication with the PC
-
Protective rubber cover safeguards against shocks and impacts
Applications:
The multimeter is suitable for universal use in electrical engineering, electrical installation, laboratory applications, telecommunication, training etc.
The instrument can be used in the field and is equipped with internal, mains-independent supply power.
|
