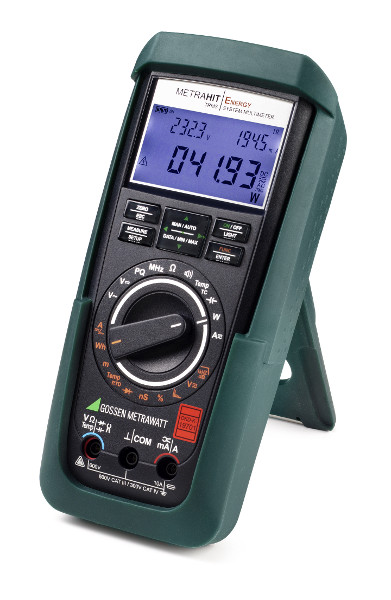

The METRAHIT ENERGY is a compact, single phase Power and Power Quality meter/logger that includes multimeter functions. It is intended for measuring AC and DC voltage, and current in single-phase systems, with current being measured either directly, or via a current transformer. The METRAHIT ENERGY has a resolution of 60,000 digits and has more than 35 different measuring functions including: active power, reactive power, apparent power, power factor and energy. This powerful multimeter is extremely rugged and reliable with a housing made of impact resistant ABS.

Features

Digital hand-held multimeter with TRMS measurement
Power measurement (W, VAR, VA, PF): active, reactive and apparent power, power factor
Energy measurement (Wh, VARh, VAh) active, reactive and apparent energy, mean power value with adjustable observation period, and maximum value
Power Quality Analysis: recording of over and under voltage, sags/dips, swells, voltage peaks, and transients in 50 and 60Hz systems
Harmonic analysis: RMS values and distortion components up to the 15th harmonic at 16.7, 50, 60, and 400Hz
Special measuring functions: crest factor CF, conductivity nS, low resistance RSL, duty cycle %, cable length
Resolution of 60,000 digits, triple display, display illumination can be activated under difficult lighting conditions
1KHz / –3 dB low-pass filter can be activated
Direct current measurement from 10nA to 10A, 16A intermittently, current measurement with current transformer clamp and sensors, transformation ratio is taken into account at the display
Large data memory for up to 300,000 measured values
Instrument is completely remote controllable using PC software, without activating the unit's rotary switch

Applications

Energy efficiency
Single phase PQ troubleshooting
Motor loading, testing and health
Branch circuit and loading
Neutral circuit testing

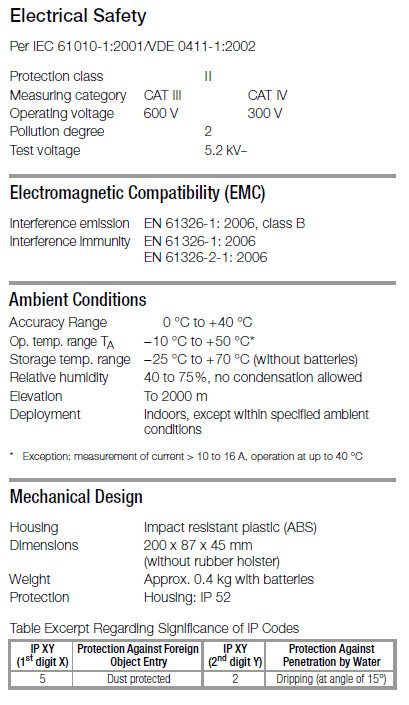

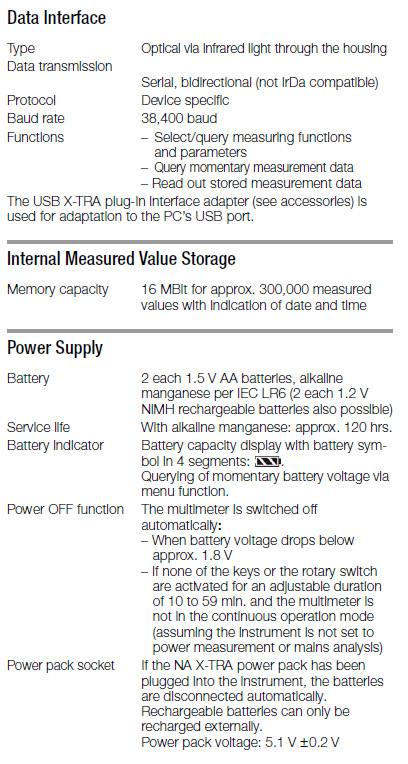

Technical Specifications

Acoustic Signals
For voltage    Intermittent signal at above 600 V
For current                  Intermittent signal at above 10 A
                                 Continuous signal at above 16 A
Fuse
Fuse link                     FF (UR) 10 A/1000 V AC/DC,
                                 10 mm x 38 mm,
                                 breaking capacity of at least 30 kA at
                                 1000 V AC/DC,
                                 protects the current measurement input in
                                 the 600 μA to 10 A ranges

Includes

MetraHit Energy
KS29 (3 safety measurement cables)
Batteries
Quick guide operating instructions
CD ROM with operating instructions
DAkkS calibration certificate (Accredited per ISO/IEC 17025)
Rubber holster
