GMC Instruments MAVOLUX 5032 B USB Light Meter
|
Item Number: MAVOLUX 5032 B USB
Manufacturer: GMC Instruments (Gossen Metrawatt)
Part Number: M503N
* Whole number only
|

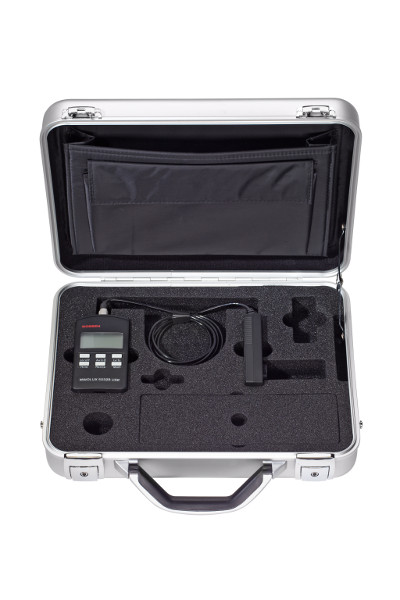

 GMC Instruments MAVOLUX 5032 B USB Light Meter with Case |
|

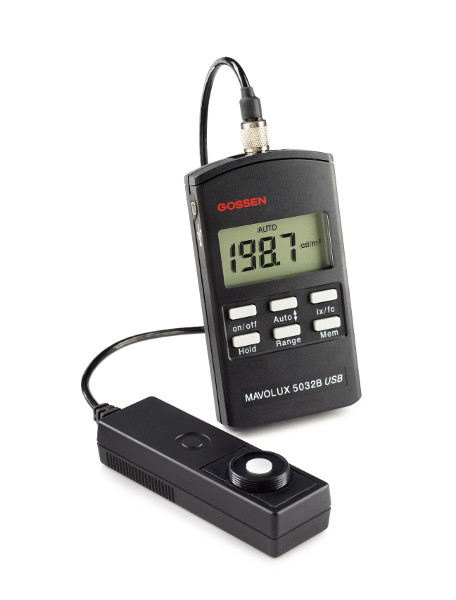

GMC Instruments MAVOLUX 5032 B USB Light Meter
The Mavolux 5032 B & C are high precision luxmeter's that are optimally suited for measuring very high light intensities (brightest daylight, head lights, etc.) without any additional accessories. Each has a USB interface for powering the meter, meter control, and data display/storage using GLUX 2 software (included). The Mavolux 5032 C is typically used in general applications and the Mavolux 5032 B has improved low light sensitivity for certification and inspection applications. The MAVOLUX 5032 B has been approved for certification and official inspection procedures.
Features
- Precision meters for measuring the illuminance in Lux and Footcandles in accordance with IEC 13032-1, Appendix B
- The silicon photo diode is color corrected, i.e. its spectral response is matched to the photopic daylight vision of the human eye V(λ).
- Luminance can be measured in cd/m² or fL when using the Luminance Attachment (optional accessory)
- Cosine correction for light incidence at an angle
- Easy to use
- 3 ½ digits display
- Backlight display (only in MAVOLUX 5032 B USB)
- Data storage of up to 100 measurements
- Auto and manual range selection
- USB 1.1
- CD-Rom with software for processing data, and controlling the meter
- Compact carry case and USB cable included
Applications
- Light technicians
- Control of light sources
- Street lights
- Lighting of work places, public buildings, sports facilities
- Quality control and quality assurance in the manufacture of lamps and light sources
- Light boards / LED billboards
- Light designers and architects
- Measurements in agriculture and horticulture
Technical SpecificationsAutomatic / Manual Measuring Range SelectionEither Lux or footcandles can be selected as a measurementunit. The measuring range is matched automatically to themeasurement value. The current measuring range can be lockedby pressing a key, or any one of four or five (MAVOLUX 5032BUSB) measuring ranges can be selected manually.
Function „Hold“The current measurement value can be held at the display bypressing the data hold key.Function „Mem“Storage in memory of upto 100 values, read-out in the display orvia USB port
Measuring rate2 measurements per second
Light sensorSilicon photo diode with V (λ) filter, complies with accuracyclassMAVOLUX 5032 C USB: DIN 5032-7 Class CMAVOLUX 5032 B USB: DIN 5032-7 Class B
DisplayLCD display size 50 mm x 25 mmDisplay/Digit Height 7 segments characters/13 mm 3 ½ digitsOverload Display „OL“ appears in displayPower SupplyBattery 1,5 V alkaline-manganese cell (IEC LR 6), size AABattery Life approx. 45 hours continuous operation, When the meter is connected to a PC, power will be supplied by the PC via the USB cableBattery test  symbol is automatically displayed when battery voltage drops below appr.1VBattery Saver CircuitThe instrument is automatically switched off, if themeasurement value remains unchanged for approximately4 minutes, and if none of the operating elements has beenactivated during this time.
Continuous operationFor using the instrument in the continuous operation mode,keep the key HOLD pushed down and then press the keyON/OFF. Pushing the key ON/OFF again will end theoperation
Electromagnetic Compatibility EMCThe MAVOLUX meet the Specifications 89/336/EWG dt.01.01.1996
Mechanical DesignDimensions Basic instrument 65 x 120 x 19 mm Sensor 31 x 105 x 30 mmCable between Instrumentand Sensor MAVOLUX 5032 C-USB: coiled cord, permanently attached MAVOLUX 5032 B-USB: plug-in coiled cord.Cable Length 1,5 m; available also in 3 m, 5 m or 10 m – on special orderWeight approx. 200 g without battery
|
GMC Instruments MAVOLUX 5032 class C USB is typically used in general applications.
| |
