GMC Instruments GEOHM C Ground Tester

Our Price: $817.00

Item Number: GEOHM C

Manufacturer: GMC Instruments (Gossen Metrawatt)

Part Number: M590D

Product Options

Add-Ons & Accessories Options

IR-adapter interface - USB (+ $159.00)

Power adapter for battery Set for C-series (+ $114.00)

Hard case for one unit of C-Series and accessories (+ $46.00)

Earth tester kit in carrying pouch, 2 reels, two 25 measurement cables, one 40 m measurement cable, two 3 m measurement cables, 4 earth spikes (zinc plated), 2 spike pullers and 1 hammer (+ $414.00)

Earth tester kit in carrying pouch, 2 reels, two 25 m cables, one 40 m cable, two 3 m measurement cables and 4 earth drills (+ $367.00)

Earth tester kit in carrying pouch, 1 drum with 25 m measurement cable 2 drums with 50 m measurement cable each, 4 measurement cables, 3 x 0.5 m long, 1 x 2 m long 1 test clamp 4 earth drills, each 350 mm long 1 dust cloth 2 pads of earth testing measurement data forms (+ $915.00)

Reel with 25 m test lead (+ $69.00)

Drum with 50 m test lead (+ $139.00)

Earth drill, 35 cm long (+ $91.00)

Quantity:

Email this page to a friend

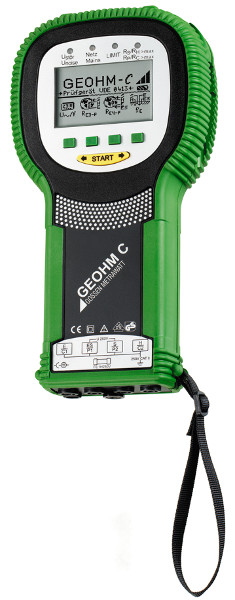

GMC Instruments GEOHM C Ground Tester

The Geohm C is a battery powered earth resistance measuring instrument that is ideal for the measurement of soil resistivity. It is a compact, handy, and menu-driven soil resistivity measuring instrument for 3 and 4-wire connections. The tester includes continuous monitoring of interference voltage with indication if allowable limit values are exceeded. All values are available on a large LCD display, and operation is easy with the use of 4 keys.

Features

Earth resistance measurement in 5 ranges up to 50KOhm
Voltage measurement from 10 to 250Vac-dc
Frequency measurement from 45 to 200Hz
Battery monitoring and self-test
Integrated memory with IrDA interface
Extremely rugged housing

Applications

Measurement of earth resistance for 3 and 4-wire methods, with physical considerations of the potential gradient area as related to dissipation resistance of grounding systems of various sizes. Measurement of soil resistivity with geologic analysis and calculation of dissipation resistance.

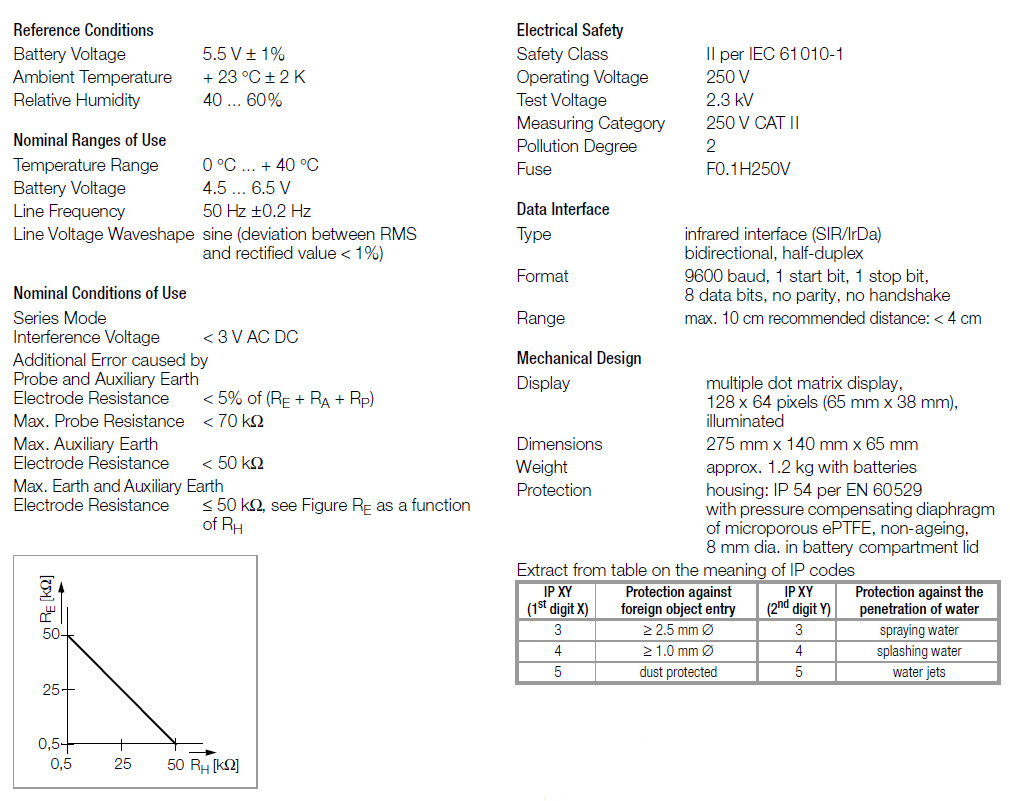

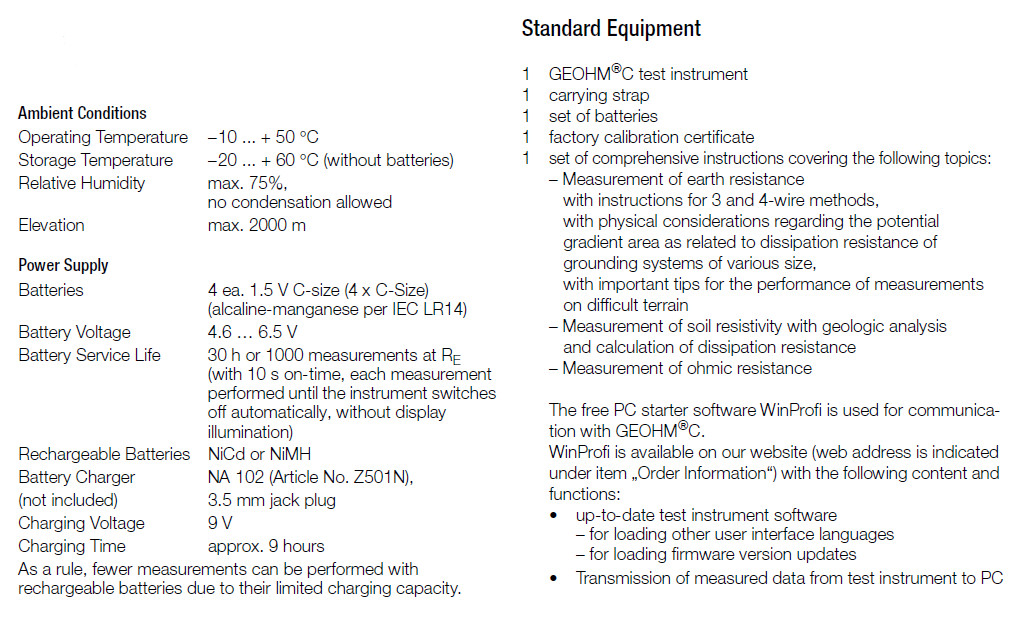

Technical Specifications

Includes

Geohm C
Carrying strap
Set of batteries
Factory calibration certificate
Operating instructions

GMC Instruments GEOHM C Data Sheet
