GF Signet 5600 ProPoint Batch Flow Controller
|
Item Number: 3-5600
Manufacturer: Signet (Georg Fischer)
Part Number: 3-5600
|
|
GF Signet ProPoint 5600 Batch Flow Controller
The Signet 5600 Batch Controller is an extremely refined instrument that combines complex control capability with operational simplicity. Select either Simple or Advanced mode to limit feature options to suit your specific batch requirements, and make changes to batch volume quickly and easily. Two relays and one analog output provide the means to increase batch precision while dramatically reducing the possibility of water hammer in a system. Batch progress is displayed on the analog dial, while the backlit LCD is used for calibration, set-up, and to show totalized flow volumes. The controllers require 12 to 24 Volts, AC or DC, and can be used with any Signet Flow Sensor with a frequency output. The intuitive software design and four-button keypad arrangement is user friendly, and the NEMA 4X/IP65 integrity of the front panel can be extended to the entire enclosure by using the optional Rear Cover Kit.
-
Simple push-button operation
-
Intuitive SoftwareDesign
-
Easy Batch Volume Entry
-
Simple and Advanced operating modes
-
Remote Start, Stop & Resume
-
Auto-calibration
-
Two Stage Shutdown Control
-
Manual or Automatic Overrun Compensation
-
Estimates Time to Batch Completion
-
Overrun Alarm
-
Missing Signal Alarm
-
Advanced Valve Control
-
End-of-batch Trigger
-
Count-up or Countdown to Batch Completion
-
Dual Totalizers
-
Tamper-proof Security Code
-
Non-volatile memory
-
Versatile low voltage power requirement
-

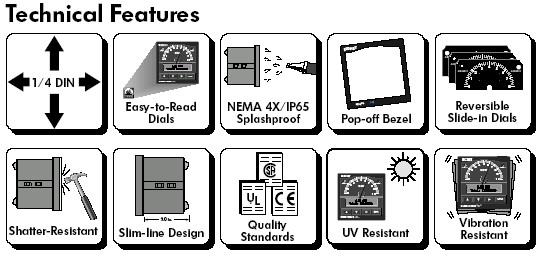

1/4 DIN, NEMA 4X/IP65 enclosure
-
Hard-coated, High Impact & UV resistant polycarbonate face
Applications:

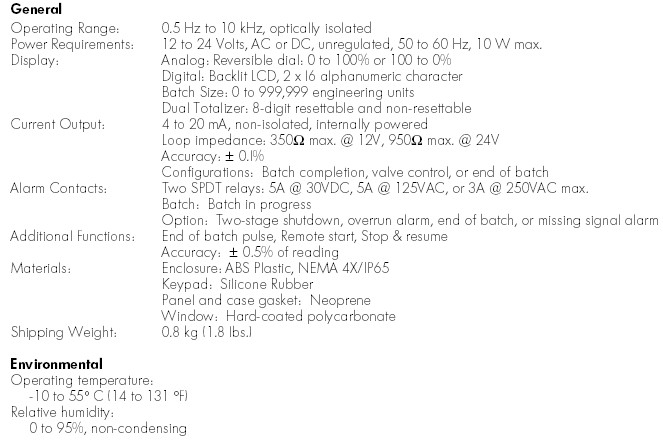

Specifications:
 |
