GF Signet 2774 DryLoc pH ORP Electrode Sensor

GF Signet DryLoc 3-2774 75 76 77 pH ORP Electrode

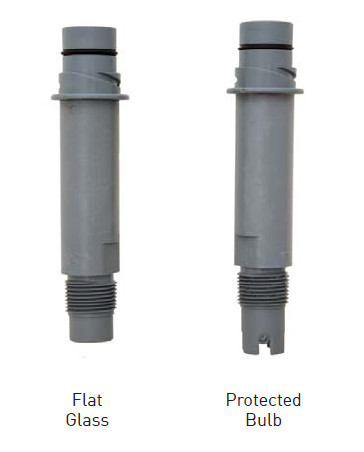

The +GF+ SIGNET 2774 - 2777 pH and ORP Electrodes feature a unique foulproof DryLoc™ connector with goldplated contacts designed specifically for use with the +GF+ SIGNET 2750 and 2760 preamplifiers, sensor electronics, and connectors. These dependable and highly responsive electrodes feature a Teflon™ double reference junction and a large reference chamber that combine to extend the service-life. Embedded positioning of the temperature element in the pH/ORP sensing tip allows the temperature response to be quick and accurate. The electrodes are offered with either flat or bulb style sensing elements. The flat versions
allow sediment and particles to sweep past the measurement surface, minimizing risks of abrasion, breakage and coating. The bulb versions can be used for general purpose applications. Due to the specially designed chambers which keep electrolyte in place, all versions can be mounted at any angle, even inverted.

Features

• Durable DryLoc™ connector with gold plated contacts
• Special design allows mounting at any angle
• Quick temperature response
• Easy sensor replacement using DryLoc™ electrode connector
• High temperature versions available  Mounts into standard 3/4 inch threads

• Water & Wastewater Treatment
• Neutralization Systems
• Scrubber Control
• Effluent Monitoring
• Surface Finishing & Plating
• Heavy Metal Removal and Recovery
• Toxics Destruction
• Sanitization Systems
• Commercial Pools & Spas
• Aquatic Animal Life Support SystemsProcess Control

**100's of Installation Fittings Available, Call for Details (732) 632-6400
