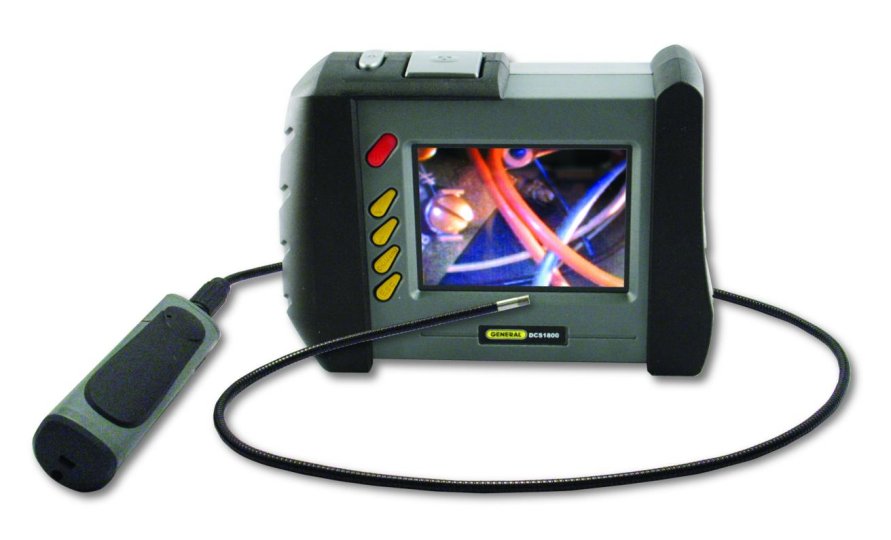

General Tools DCS1800 Wireless Video Borescope System
|
|
Item Number: DCS1800
Manufacturer: General Tools (Mannix)
Part Number: DCS1800
Product Options
General Tools DCS1800 Probe Options
* Whole number only
|
General Tools DCS1800 Wireless Video Borescope System
Features:
-
Wireless Transfer: Operate the instrument anywhere without the cable. An image can be sent to a larger screen up to 160' (50m) away.
-
Comprehensive Application Mode:Three different application modes (on console, on large screen, and projected) allow wide application.
-
Completely Portable: There is no need for an external light, power or screen. With the palm-sized console you can inspect many applications.
-
3 Operating Modes: The wireless DCS1800 includes Hands-Free, One-Handed and Two- Handed modes. You can choose the appropriate mode to meet your need in different working applications.
-
Two Hands Mode: You need not head up or down in an uncomfortable position when checking some position that is higher or lower than eye level. You can hold the console at a perfect height even when checking the undercarriage of an air conditioner.
-
Single Handed Mode: In some special working environments you need a free hand to remove an obstacle during inspection. Simply place the separable console on a stable platform and manipulate the probe with a single hand.
-
Hands-Free Mode: Console and probe can be set up for hands-free operation.
-
Rapid Imaging: Record still images or MPEG 4 compatible streaming video at the touch of a button.
-
Strong Metal Lens Sleeve: High quality metal lens sleeve can withstand high temperatures and provides protection of the lens module.
Specifications:
Camera System & Insert Tube:
|
Diameter of Insert Tube:
|
0.2" (3.5mm)
|
|
Resolution:
|
325 (H), 250 (V)
|
|
Housing:
|
Steel
|
|
Light Source:
|
White LED
|
|
Length:
|
39.4" (1m)
|
|
Field of View:
|
Horizontal field angle 46°
Vertical field angle 34°
Diagonal field angle 56°
|
|
Dept of Field (DOF):
|
0.4" to 2.4" (1cm to 6cm)
|
|
Water Resistance:
|
Insert tube
|
|
Working Temperature:
|
32° to 131°F (0° to 55°C)
|
Console:
|
Dimensions:
|
5.5" x 1.4" x 1.3" (139 x 35 x 32mm)
|
|
Weight:
|
7.8oz (220g)
|
|
Wireless Transceiver Frequency:
|
2.4 GHz - 4 channels
(2414MHz 3432MHz 2450MHz 2468MHz)
|
|
Battery:
|
Rechargeable Li-Polymer battery 3.7V
|
|
Brightness Control:
|
Variable
|
|
Audio:
|
Integrated microphone
|
System:
|
System Dimensions:
|
5.8" x 4.1" x 2.8" (146.9 x 105.4 x 71 mm)
|
|
System Weight:
|
11.8 ozs (0.335kg)
|
|
Power:
|
Battery - Rechargeable Li-polymer battery 3.7V
Power supply - AC i 00-240V 50-60Hz
Power Consumption: DC5.5 i.8A
|
|
Display:
|
3.5 TFT LCD QVGA
|
|
Recording Medium:
|
1G SD Card (up to 2G)
|
|
Video Out Format:
|
NTSC & PAL
|
|
Interface:
|
AC Out
|
|
Wireless Receiver Frequency:
|
2.4 GHz - 4 channels
(2414MHz, 2432MHz, 2450 MHz, 2468 MHz)
|
|
Compression Format:
|
Compliant with MPEG4
|
|
Still Image Storage Format:
|
JPEG (640x480)
|
|
Frame Rate:
|
~30 fps
|
|
Exposure:
|
Automatic
|
|
White Balance:
|
Fixed
|
|
S/N Ratio:
|
42dB or more
|
|
Language:
|
English, German, French, Protuguese
|
|
Operating Environment:
|
-4° to 140°F (-20° to 60°C)
|
|
Storage Environment:
|
-4° to 140°F (-20° to 60°C)
|
|
Recharge Environment:
|
32° to 104°F (0° to 40°C)
|
|
