General Tools DM8200 Series Deluxe Digital Manometer
|
Item Number: DM8200
Manufacturer: General Tools (Mannix)
Part Number: DM8200
Product Options
* denotes required field
Mannix DM8200 Range Selection*
You must select an option for 'Mannix DM8200 Range Selection'.
NIST Traceable Calibration - Manometer
* Whole number only
|
|

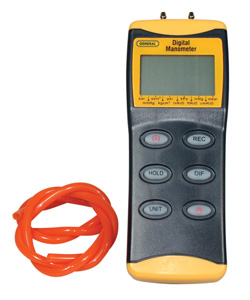

General Tools DM8200 Series Deluxe Digital Manometers
-
-
DM8205: 0 - 5 PSI (to 138" H2O), Res. (bar) 0.01
-
DM8215: 0 - 15 PSI (to 415" H2O), Res. (bar) 0.01
-
DM8230: 0 - 30 PSI (to 830" H2O), Res. (bar) 0.002
-
DM8200: 0 - 100 PSI (to 2,768" H2O), Res. (bar) 0.4
Features
- Digital display of gauge or differential pressure
- Display unit options: psi, inH2O, bar, mmHg,ozin2, kgcm2, kPa, ftH2O, inHg, cmH2O & mbar
- Bright backlight
- Min/Max memory + data hold
- Simple fittings for hose connection
- RS-232 computer interface
- CE and RoHS approved
- Typical industrial application for: DM8200 Measuring manifold pressure
Technical Specifications (For 100 PSIG)
| Measurement Range/Resolution: |
0 to 100 psi/0.1 psi |
| Measurement Accuracy: |
±3% of full scale value |
| Response Time: |
0.5 seconds |
| Operating Temperature: |
32° to 122°F (0° to 50°C) |
| Dimensions: |
7.2 x 2.8 x 1.2 in. (182 x 72 x 30mm) |
| Weight: |
7.6 oz. (215g) |
| Power Source: |
9V battery (included) |
Includes
- Connection hose
- Molded hard case
- Battery
- User's manual
|
