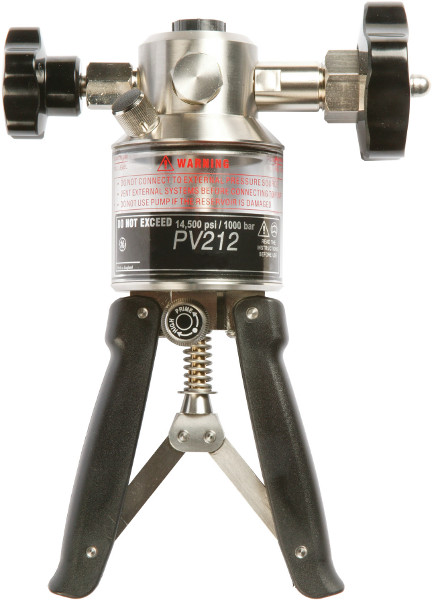

GE Druck PV212 Hydraulic Hand Pump
|
Item Number: PV212
Configuration: -10K-O
Manufacturer: Druck (GE)
Part Number: PV212
Product Options
Druck PV212 Pressure Range Options
* Whole number only
|
|
GE Druck PV212 Hydraulic Hand Pump

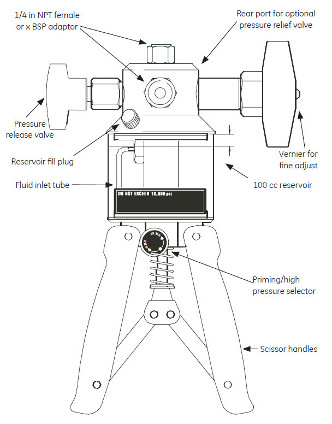

The PV212 hydraulic hand pump is lightweight, easy to use and generates pressure up to 1000 bar. It is an ideal tool for calibrating pressure transmitters, pressure transducers, pressure switches and pressure gauges. The PV 212 can be used as a portable pressure comparator in conjunction with various pressure indicating devices. It offers adjustable overpressure protection, fine control and a unique priming/high pressure selector switch.
Features
- Hydraulic pressure up to 1000 bar
- Compatible with many different liquids
- Large transparent 100cc capacity reservoir
- Quick priming and pressure generation using scissor action pump
- Controlled pressure release and adjustment
- High pressure / priming selector
Applications
- Hydraulic pressure sources for pressures up to 15,000 psi (1000 bar)
- Large volume Pyrex™ reservoir which can be filled during operation
- Vernier adjust for fine control
- Quick priming and pressure generation
- Optional pressure relief valves
- Pressure release valve offers outstanding control for decreasing pressures
- “Skydrol”, “Fyrquel”, brake fluid option available

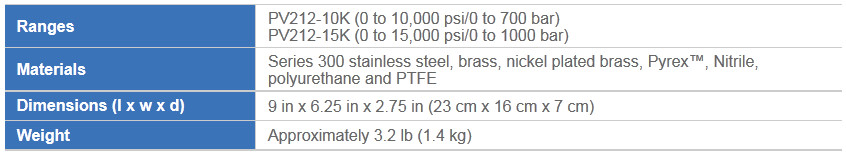

Technical Specifications

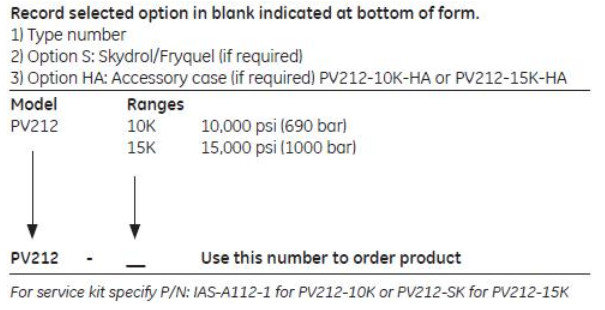

Order Information
|
GE Druck HK15 is a quality high pressure hose kit designed to operate with the PV212. The standard stainless steel/nylon construction is suitable for use with oil or water and optional seals can be provided to accommodate ‘Skydrol’ and brake fluid.
| |
