GE Druck PV210 Low Pressure and Vacuum Hand Pump
|
Item Number: PV210
Configuration: -PV210
Manufacturer: Druck (GE)
Part Number: PV210
* Whole number only
|
|

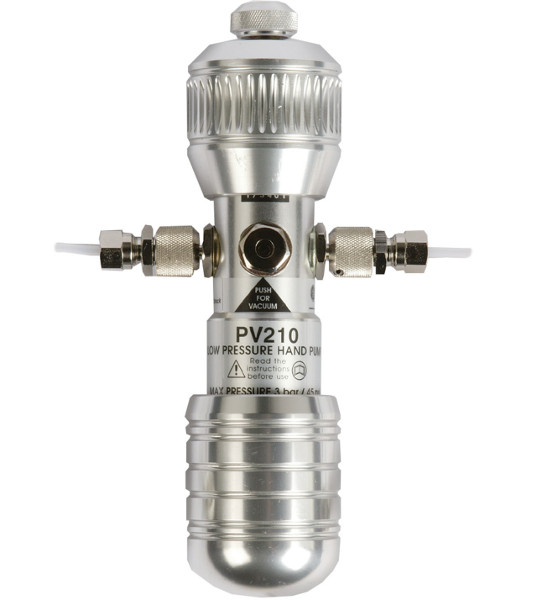

GE Druck PV210 Low Pressure and Vacuum Hand Pump
The Druck PV210 is an ideal tool for calibration checks on pressure transmitters, pressure switches, indicators, recorders and controllers. The PV 210 can be used as a portable pressure comparator in conjunction with various pressure indicating devices. This precision unit includes a unique user adjustable pressure relief setting, enabling setting of maximum pressure.
FEATURES
- Dual source of pneumatic pressure and vacuum
- Generate vacuum to 90%
- Generate pressure to 3000 mbar
- Adjustable pressure relief valve for setting maximum output pressure
- Integral fine control and pressure release valve
- Lightweight, handheld, easy to use
SPECIFICATIONS
| Pressure Range: |
0 to 1250 inH2O, 0 to 45 psi |
| Vacuum Range: |
0 to 27 inHg |
| Relief valve adjustment: |
20 in H2O to maximum pressure |
| Materials : |
Bright nickel-plated brass, anodized aluminum, phosphorbronze,
Nitrile seals, nylon hose
|
| Dimensions (h x w): |
6.7 in to 1.8 in diameter |
Order Information
PV210 |
Hand pump, two flexible, 3 ft long by 1/8 in diameter,
nylon hoses with 1/4 in NPT female adapters
|
PV210-HA |
Hand pump in carrying case with two flexible, 3 ft long by
1/8 in diameter nylon hoses with 1/4 in NPT female
adapters and accessories |
|
